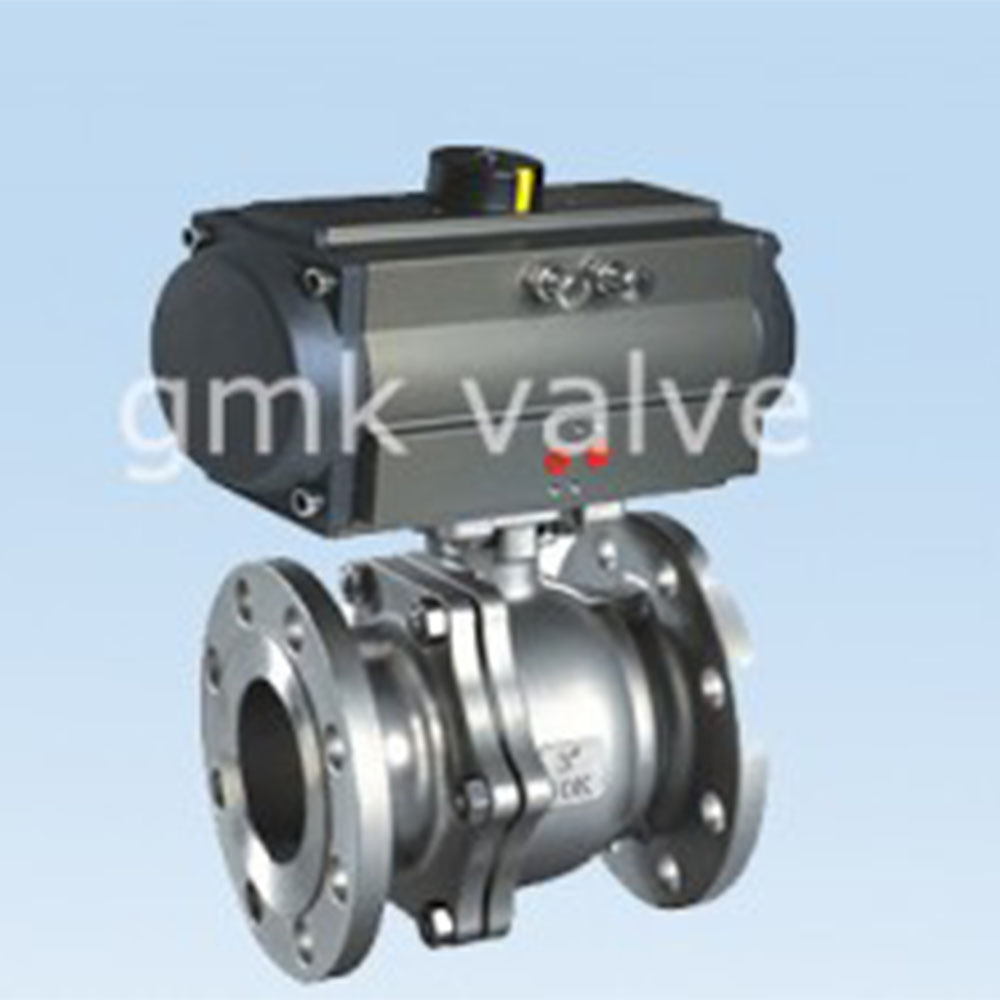

Ball Valve With Aluminum Pneumatic Actuator

The ball Valve With Aluminum Pneumatic Actuator is constructed of aluminum casting that is actuated by air pressure. It can act as a single or double actuator. This ball valve enables the installation of a handwheel for use in an emergency situation. It is also compatible with SMC positioners, SMC solenoid valves, ASCO positioners, ABB positioners, YTC positioners, Fisher positioners, and Mesta positioners, and with an APL limit switch.

  • Size Range:DN50-DN1000
  • Material:CF8,CF8M,CF3,CF3M,4A,5A,Alloy 20,UB6 904l,CK20,B148 ect
  • Rating:150LB,300LB,600LB,900LB,1500LB
  • Temperature Range:-196°C~600°C

CE Certification

ISO Standards

Warranty Included


The ball Valve With Aluminum Pneumatic Actuator may be controlled with the assistance of pneumatic actuators, which transform the potential energy of compressed air into motion that can be controlled mechanically. It needs a mechanical revolution in order to be turned through ninety degrees. Single- or double-acting ball valves that are actuated by pneumatic actuators are both possible configurations. After being rotated by a single burst of compressed air, the valve of a single-acting pneumatic actuator is restored to its normal position by a spring. This kind of pneumatic actuator is the most common type. A double-acting pneumatic actuator makes use of not one but two different sources of compressed air; one is used to spin the valve, while the other is utilized to return it to its starting position.


  • The ball Valve With Aluminum Pneumatic Actuator is resistant to erosion from the medium. This is possible due to the fact that its sealing surface and spherical surface are normally closed.
  • It is lightweight, small, and can be customized to a broad variety of sizes. It has a significant impact on a wide variety of domains.
  • The aluminum pneumatic actuator has a higher resistance to the forces that are present inside the actuator.
  • It provides maximum accuracy and control.


Size Range DN50-DN1000
Material CF8,CF8M,CF3,CF3M,4A,5A,Alloy 20,UB6 904l,CK20,B148 ect
Rating 150LB,300LB,600LB,900LB,1500LB
Temperature Range -196°C~600°C
Applicable Standards
  • Ball  Valve design according to API6D,BS5351,ASME B16.34
  • Face to face ASME B16.10,AP6D
  • End Flanges ASME B16.5/ASME B16.47
  • Butt welded ends ASME B16.25
  • Fire Safety API607,API6A
  • Inspection and test API 598,API6D
