What is a Compact forged Steel valve?

Compact forged steel valves are used for linear motion. They can start the flow of the medium that is being delivered via the pipes, or they may stop the flow. The valves contain a gate in the shape of a disc that can move up and down, which allows for the amount of the medium that is allowed to flow through the valves to be controlled. Because of their versatility, ease of use, and ability to survive for an extended period of time, gate valves are used extensively in a diverse range of commercial and industrial settings. Because gate valves made of forged steel may be created in such a wide variety of distinct ways, they are able to fulfill a broad spectrum of functions in each and every industrial plant. They are able to manage flow in either direction and may be operated by either manual or electric actuators. Additionally, they are bidirectional flow control devices. The gate valve can only be used in one of two positions: completely open or fully closed. Neither of these positions may be utilized simultaneously. They cannot be used in any role that involves throttling since they do not meet the requirements. This blog article is going to take you step-by-step through the process of creating forged steel gate valves and explain how those valves work. Keep reading!

Design of Compact forged steel valve:

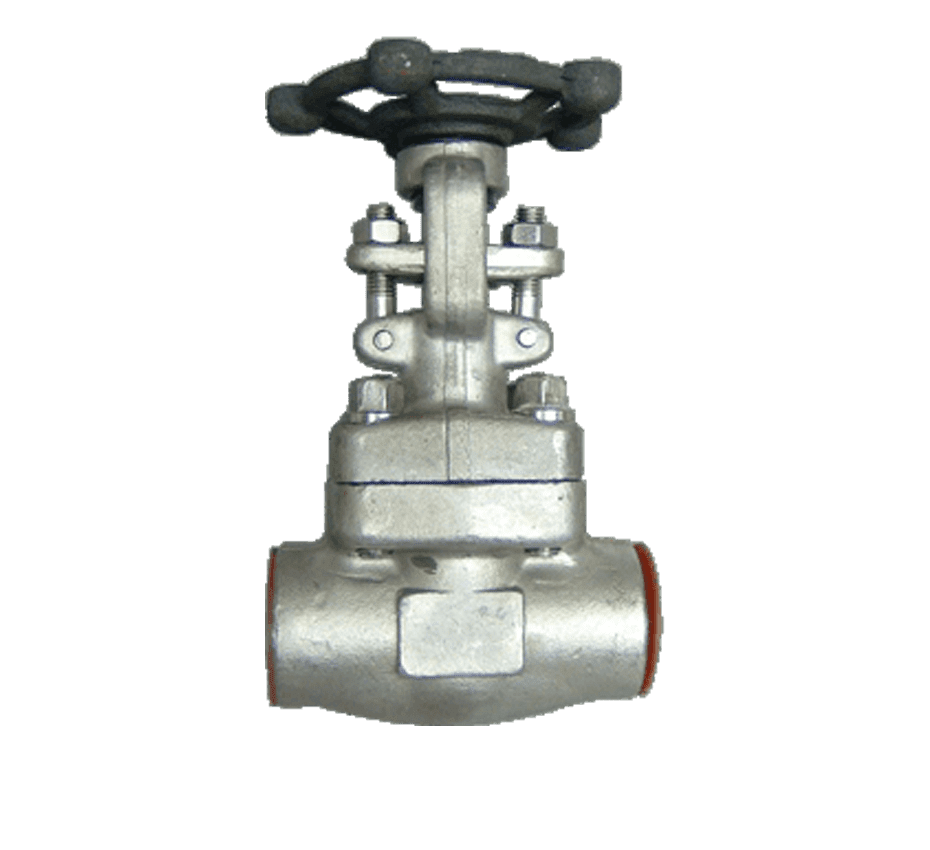

Gate valves are able to accommodate a diverse range of components, each of which may serve a specific purpose. On the other hand, the structure of a gate valve remains consistent throughout its whole and never deviates from its basic form. Every gate valve has three primary parts that make it up: the Body, the Bonnet, and the Trim. These make up the gate valve. Have a look at the diagram that can be seen further down on this page to get an idea of how a typical gate valve is organized.

The initial pressure barrier that stops flow in the opposite direction is located in the body or shell of the valve. The material used to construct the body of a forged steel gate valve is subjected to a process known as hot forging, which produces a surface that is more uniform, sturdy, and long-lasting. In terms of their strength and resistance to wear and tear, forged steel gate valves outperform cast steel gate valves. Forged steel gate valves are better in terms of their strength and resistance.



The name “bonnet” refers to the orifice located at the very top of the gate valve’s body. It is feasible to remove this hole to get access to the gate valve’s moving components. Attaching the bonnet of forged steel gate valves to the body may be accomplished by welding, bolting, or pressure sealing. This decision is based on the requirements of the given application. It is a crucial component of the valve since it decides how the valve will be fixed, maintained, or replaced in the future.

In the trim of the gate valve, all of the valve’s movable components are stowed while the valve is not in use. The first component is the stem, which is connected to the disc and actuator at opposite ends. The actuator end is linked to the stem’s actuator end. It is responsible for moving the attached disc in the correct direction. The disc is the second component of the system as a whole. The gate-shaped disc in forged steel gate valves may move in both up and down orientations. This allows the valve to regulate flow in either direction. Steel and other known-to-be-durable materials are often utilized in its construction. The seat of the valve is the last movable component of the trim to be replaced after all other components have been replaced. The valve seat is one of the components essential for ensuring a tight seal. The disc or gate is the second component of the valve. Both of these layouts are valid possibilities for the seat of a gate valve produced from forged steel: a pointed valley or the letter V.

How do Forged Steel Gate Valves Work?

You will need to move the actuator in the opposite direction in order to free the stem of the valve and provide room for air to travel through. Gate valves manufactured by SIO are constructed of forged steel, and their stems are fabricated by OS&Y. (Outside Screw and Yoke). This is a special kind of rising stem in which the segment of the stem with the threading is kept distinct from the section of the stem that contains the liquid. The stem is not susceptible to corrosion in any form, not even from the most aggressive fluids. In addition to this, the OS&Y stems are not connected in a straightforward fashion to the actuator. In point of fact, the actuator is linked to a bushing top that can be located at the top of the valve yoke. This can be found at the top of the valve yoke. Because of this, there is a reduction in the amount of space required for the actuator, and there is also a reduction in the amount of energy that is required to operate the actuator.

When the stem rises, it also lifts the connecting gate, which causes the channel’s obstruction to be removed, allowing water to flow freely through it. It is now possible for the gas to go through the pipeline without encountering any obstacle from one end to the other. For steam and gas that have not been condensed, the flexible wedge gate forged steel valve or the parallel disc forged steel gate valve is the one that is more suited for the job. In the first possible outcome, the gate makes a break in the existing boundary of the region around it. The seat will be better aligned as a result of these incisions, which will also provide additional protection against leaks. Gate valves that have parallel discs are built with two solid pieces of discs that are held together by a special mechanism. These discs are joined together to form the gate valve. Because the seats of this valve are loaded with springs, they stay in constant contact with the gates to provide a seal that is effective in both the forward and reverse directions.

To halt the flow of gas, move the actuator in the opposite direction from what it was doing before. Once again, the stem will spin, but this time it will pull the gate down, which will prevent the medium from passing through its channel of flow. The pressure from upstream will force the seat to move closer to the gate, which will result in a more secure seal. When the forged steel gate valve is entirely open, the disc that normally stops the flow of the medium is totally gone. This enables the valve to fully open. The pressure drop that occurs as a result of the medium moving through the gate valve is negligible since there is no barrier to the flow of the media. When the valve is in its completely closed position, the disc and seat make full contact with each other throughout the whole of the valve’s surface, ensuring that the valve is securely sealed.

Applications of Compact Forged Steel valve:

Gate valves made of forged steel are very adaptable and may be utilized for a wide variety of applications in pipe systems of varying complexity. They are applicable for usage in high-temperature coking units, food and beverage industries, pharmaceutical services, rivers and communities, drilling manifold systems, subsea manifolds, and a variety of other applications.

Welded forged steel gate valves are an excellent choice for both standard and sensitive applications in the power industry. Smaller gate valves constructed of forged steel without rising stems are a good option for use in wellhead manifold systems. These valves are able to withstand high-pressure operations and provide a reliable mechanical seal. In pipeline applications in which it is of the highest significance to ensure operational integrity, twin expanding gate valves constructed of forged steel may be used. Gate valves that are both resilient and built of forged steel are sufficiently adaptable to be used in a broad range of commercial and industrial contexts.

What Globe valve GMK offers:

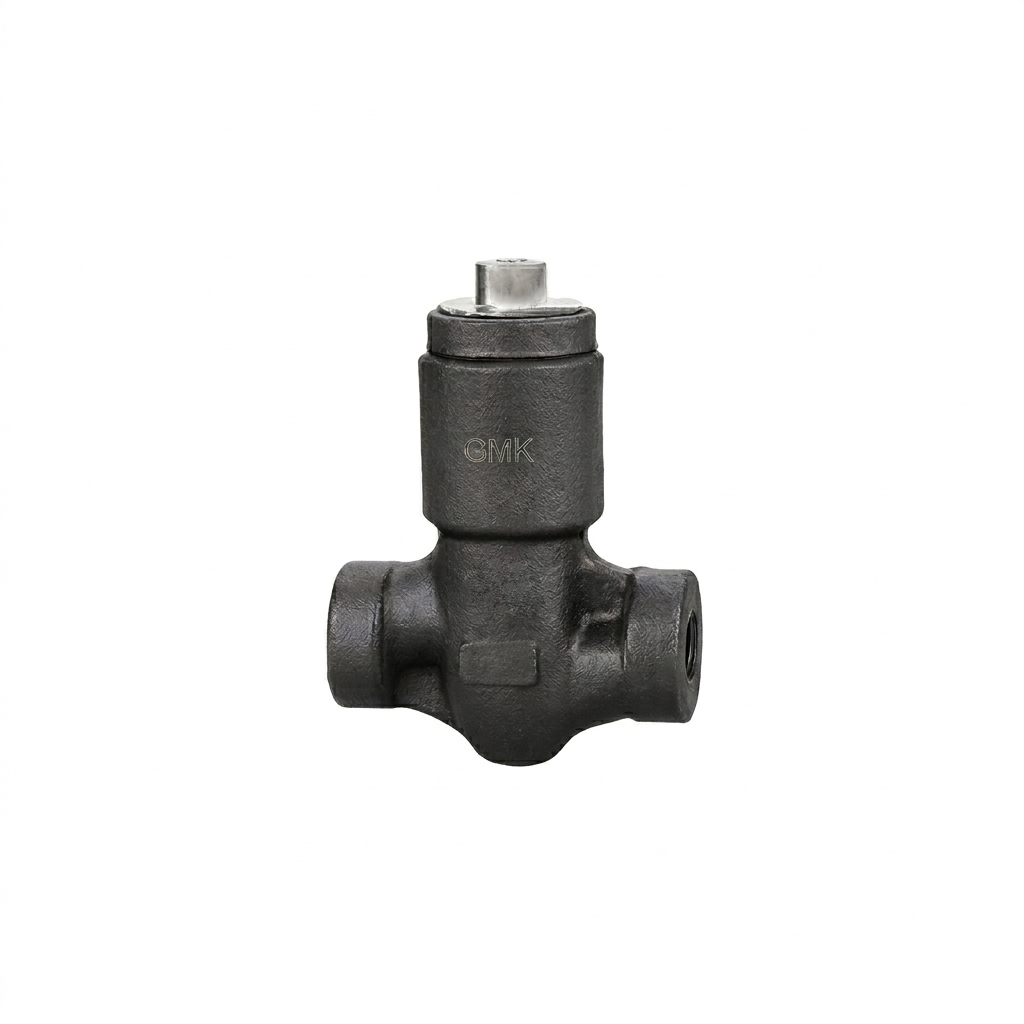

GMK has all kinds of forged steel valves in its store, top-rated include;

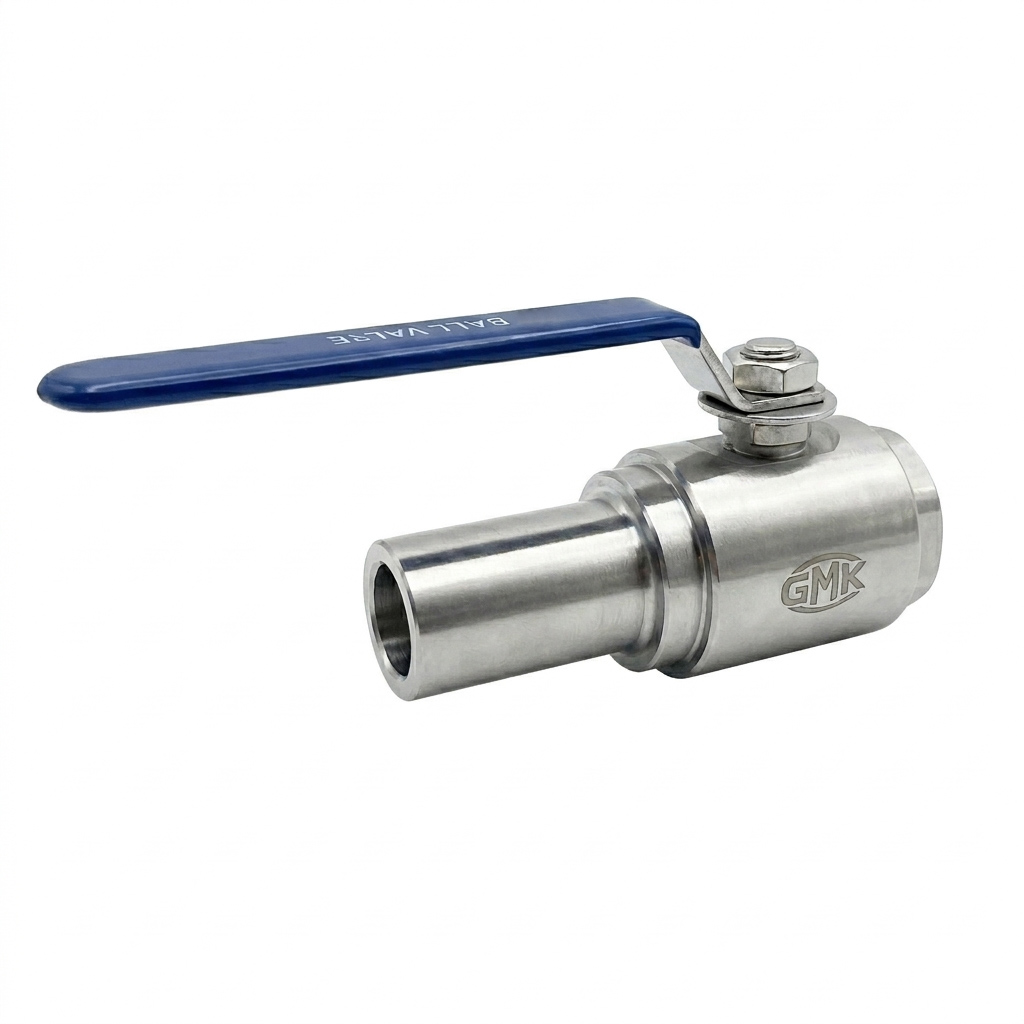

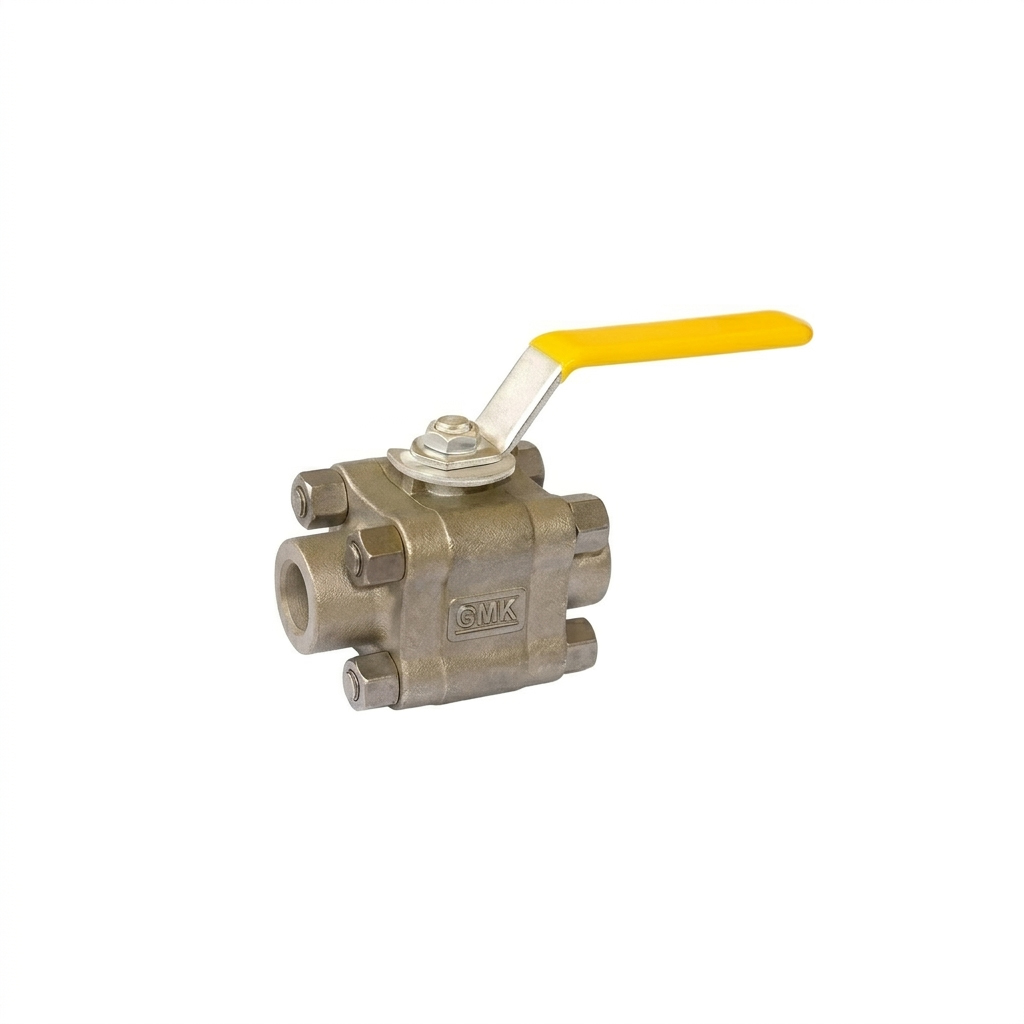

Forged Female Threaded Socket Welded Globe ValveForged Steel Ball ValveForged Steel Cryogenic Ball Valve.

Conclusion:

When compared to standard valves like a 220v solenoid valve, the strength, and longevity of a forged steel gate valve are clearly superior. They are useful for isolating crucial sections of pipe systems for high-temperature applications. Ball valves with stainless steel flanges, gate valves made of class 800 forged steel, and more are all available from SIO. We have API 602, ASME B16.34, and API 598 certifications for our gate valves. We encourage you to get in contact with us if you need customized gate valves with any additional functionality.
