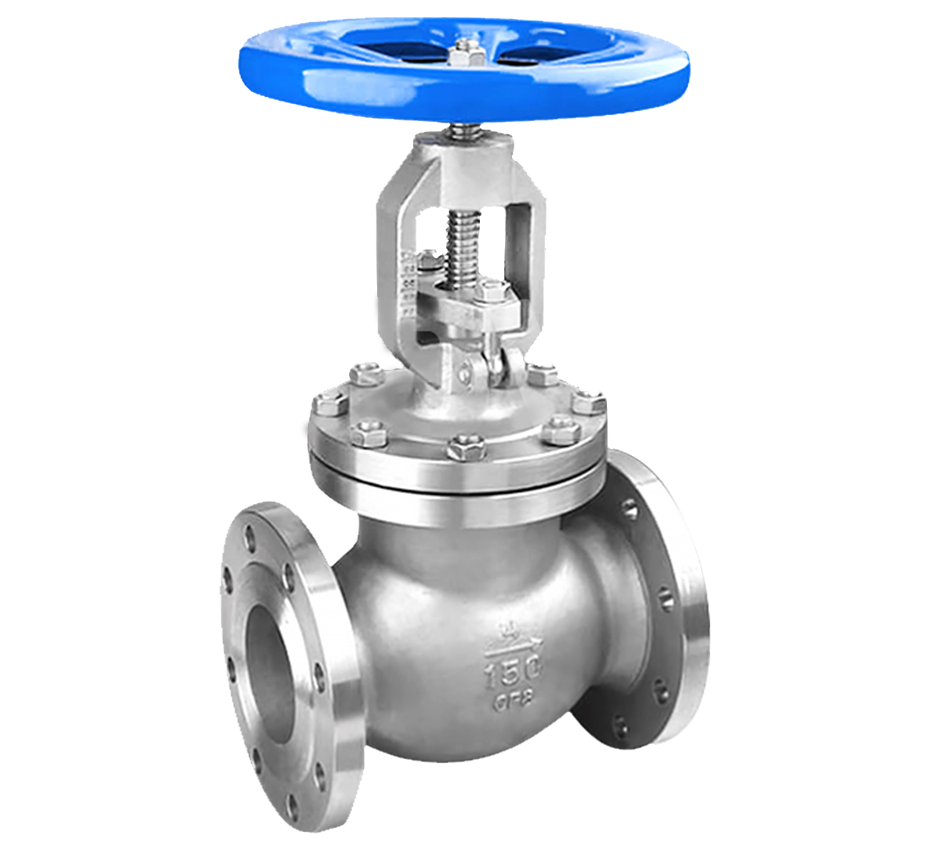

What is a Globe valve?

Globe valves have a disc that may either be fully withdrawn from the flow path or closed off to entirely stop the flow. Common Globe valves may be used for both shutoff and regulating purposes. The pressure loss through these valves is somewhat greater than that of a straight-through valve (gate, plug, ball, etc.), but they may still be useful in situations when that difference is negligible. The disc transfers the system’s whole pressure to the valve stem, hence NPS 12 is the largest size that may be reasonably used for such a valve (DN 300). It is unusual to find a globe valve with a nominal pipe size (NPS) greater than 12 (DN 300). Greater pressures would need far greater stem forces for larger valves to open or shut. It’s possible to make and install a globe valve with a DN 1200 (NPS 48) or larger size. The use of globe valves is commonplace in the field of fluid mechanics. Premature failure and unsatisfactory service may be avoided if the design of the valve takes into account the range of flow control, pressure drop, and duty. Valve trim must be specifically constructed for valves that will be used in high-differential pressure throttling duty. In most cases, the differential pressure over the valve disc shouldn’t be more than 200 psi (1380 kPa) or 20% of the maximum upstream pressure. For uses above these differential pressure limitations, valves with particular trim may be constructed.

Design of Globe valve:

Tee Pattern globe valve design is the most prevalent body type, and the shape of the diaphragm on these valves is commonly a Z. Because the seat is positioned in a horizontal plane, the stem as well as the disc can move in a direction that is perpendicular to the line that is drawn in a horizontal plane. This specific design has the biggest pressure drop possible while also having the lowest flow coefficient. They are used in services that entail extreme throttling, such as in bypass lines that are located all around a control valve. These lines are an example of a service that calls for their application. Tee-pattern Globe valves may also be utilized in applications where there is no concern about a loss in pressure and when throttling is necessary. In these kinds of situations, the valves are employed to control the flow of the fluid.

The traditional Tee Pattern Globe valve has been upgraded to accommodate the Angle Pattern Globe valve’s new design. The ends of this Globe valve are cut at an angle of ninety degrees, and the direction of the flow of fluid may be adjusted by turning the valve one full round to the left or right. In comparison to these sorts of valves, globe valves that include a wye design have a flow coefficient that is a little bit greater. They are utilized in applications that contain periods of pulsating flow because of their ability to survive the slugging effect that is created by the kind of flow that they can handle. This ability allows them to manage flows of varying intensities.

Why we should buy a Globe valve?

You don’t have to be concerned about the amount of pressure loss when you use globe valves, which are perfect for situations in which you need to adjust the flow of fluid but don’t want to. The following are some major uses; Cooling water systems, Fuel oil systems, Systems for feeding water and chemicals to livestock lubricating oil distribution for turbines, Applications for draining and trimming in fire sprinkler systems, and other water-based types of fire prevention systems. When it comes to controlling valve applications in fire sprinkler systems, globe valves are not the greatest solution since the pressure in these systems is quite high. Instead, butterfly valves are often what people go for.

There are multiple alternatives to the globe valve, and being familiar with the various available choices will assist you in selecting the appropriate valve for the task at hand. Gate valves and ball valves are two important alternatives to the more common kind of valve known as the globe valve. First, let’s talk about the key distinctions that exist between gate and globe valves. Gate valves, like globe valves, are linear-motion valves. To open and shut them, you must spin a handwheel that is attached to a stem that is screwed into and removed from the bonnet. When a gate valve is closed, the stem moves in a direction that is perpendicular to the flow of the fluid. This causes an impediment to being forced downward.

When using a gate valve, the flow of fluid does not need to change directions since the flow route is straight. This is in contrast to globe valves. Because of this, gate valves result in very minimal loss of head pressure (L/D=8). The rate of fluid flow via a gate valve, on the other hand, is not proportional to the degree to which the valve is open at any one time. Globe valves are superior in this regard.

Advantages of Globe valve:

  • The capability of achieving a good cutoff
  • The capability of modulating speed ranges from moderate to excellent.
  • Shorter stroke (compared to a gate valve)
  • The tee, wye, and angle patterns are all available, and each has its own set of features.
  • Seats may be machined or resurfaced with relative ease.
  • It is possible to utilize the valve as a stop-check valve if the disc is not connected to the stem.

Applications of Globe valve:

This is a list of some of the most common applications for globe valves, which are as follows:

  • It is necessary to maintain control over the systems that regulate the flow of the cooling water.
  • Controlled delivery of fuel oil that places a focus on the necessity to be airtight throughout the system.
  • Utilize high-point vents and low-point drains in situations where avoiding leaks and maintaining safety are of the highest significance respectively.
  • Systems for extracting feedwater and chemicals, condenser air, and drainage, as well as extracting feedwater and chemicals
  • Ventilation and drainage for the primary steam system, ventilation and drainage for the boiler, and drainage for the heater
  • In addition to the ones already there, seals and drains have been installed on the lubricating oil system for the turbines.

From where to buy the best Globe valve?

A very competitive price structure, to support you in reducing the total cost of your purchases and increasing the amount of money you make. GMK Valves will take care of all the particulars of the order on your behalf and provide lightning-fast shipping to ensure that the goods will be delivered on time. We pay attention to the demands you make, and the valve specialists that we employ will aid you in choosing the best decision for the unique requirements of the project that you are now working on.

Why GMK?

Our customers and the projects that they are working on have always been the foundation upon which we have built our business; they are the primary impetus behind all that we do. We aim to anticipate and align with the demands of our customers by bringing together bright individuals from all over the world to collaborate on resolving the most difficult and urgent issues faced by the industry. Our goal is to achieve this by bringing together bright individuals from all over the world. We want them to see us as their primary performance partner and come to us first.

We need to combine our strengths with the knowledge and experience that we have as a group to accomplish this goal and provide the best possible outcomes. This must be done not only within GMK, but also by working closely with our suppliers, contractors, and business partners. We are at the top of our game in our business because of the fantastic and highly talented people that make up our team. They serve as the cornerstone upon which our mission and our integrity are constructed, and they are the inspiration for our firm belief that everyone should be allowed to develop to the greatest extent that is consistent with their abilities. We can overcome any cultural or technical barrier that is placed in front of us as we are constantly evolving and coming up with new ideas. This is because we are always coming up with new ideas. One of the factors that add to our strength is the diversity within which we live. We will achieve greater success if we cooperate.

What Globe valve GMK offers:

GMK is the leading seller of globe valves in the market for many years with many different variants as its main-seller. Which includes; Angle Globe ValveBellow Seal Globe ValveDIN Globe Valve.
