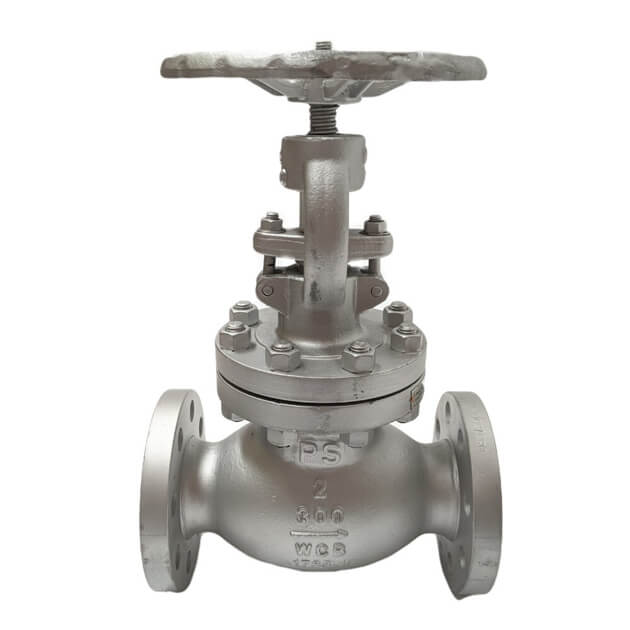

DIN Globe Valve- GMK- DN15-DN500, Bolted Bonnet

DIN Globe Valve

DIN globe valves are created and manufactured by Metals Valve in line with GS-C25,1.0619,1.4408,WCB, LCB,LCC, WC6,WC9, C5,C12,C12A,CF8, CF8M, CF3, CF3M, CN7M etc. In terms of its front-to-back dimensions, it complies with DIN 3202 and EN 558-1 standard. In accordance with EN 1092-1, DIN 2543, and DIN 2550, each and every flanged connection is provided with either Flange, RTJ Flange, Butt Weld, Hub end, or Groove. Testing and quality control are both performed according to the DIN 3230 standard. The pressure might change at any point between PN16 and PN100. The industry standard is for cast steel DIN globe valves to have an OS&Y (outside screw and yoke) as well as an erecting stem. At your request, we will be able to provide you with a design for a long-cycle life bellow seal that will not only considerably improve the sealing performance of your stem but also last for many cycles

Size:DN15-DN500

Rating:PN16, PN25, PN40, PN63(64), PN100, PN160, PN250, PN400

Material:WCB, LCB,LCC, WC6,WC9, C5,C12,C12A, CF8, CF8M, CF3, CF3M, CN7M,Alloy 20,B148,UB6 ,Hastelloy C etc

Connection:Flanges,RTJ Flange,Butt Weld,Hub end,Groove

Operate:Handwheel, Wormgear, Gearbox, Penumatic Actuator

Description
Technical
Standard
Q&A

DESCRIPTION

DIN Globe Valve uses a disc or plug that travels in a straight line to open, close, or adjust the flow of a medium. It is also known as a linear motion valve because of the disc’s vertical movement. The seat of a DIN globe valve opens to let the discs pass through as they go linearly down the valve. Given its construction, a globe valve is often used for controlling and limiting the flow through the valve. It may be employed in the on/off service of completely permitting or limiting media as well.

Benefits

The DIN globe valve’s disc can be throttled effectively since it moves vertically to the valve seat.
It is more straightforward.
It only requires one sealing surface and has a small seating area, which helps keep manufacturing costs down and material use to a minimum.
It is simple to maintain and may improve productivity by reducing both expenses and waste.
Since the valve seat and disc surfaces seldom move against one another, they provide less resistance than other contact points.

Product name:DIN Globe Valve
Size: DN15-DN500
Rating: PN16, PN25, PN40, PN63(64), PN100, PN160, PN250, PN400
Material: GS-C25,1.0619,1.4408,WCB, LCB,LCC, WC6,WC9, C5,C12,C12A,
CF8, CF8M, CF3, CF3M, CN7M ect
Connection: Flanges,RTJ Flange,Butt Weld,Hub end,Groove
Operate: Handwheel, Wormgear, Gearbox, Penumatic Actuator, Electric
Actuator, Hydraulic Actuator

Feature

Straight pattern body design
OS&Y Outside Screw and Yoke, Bolted Bonnet
Yoke intergral with bonnet
Rising stem
Full Port Or Reduced Bore

din-globe-valve

TECHNICAL SPECS

Size DN15-DN500

Rating PN16, PN25, PN40, PN63(64), PN100, PN160, PN250, PN400

Material WCB, LCB,LCC, WC6,WC9, C5,C12,C12A, CF8, CF8M, CF3, CF3M, CN7M,Alloy 20,B148,UB6 ,Hastelloy C etc

Connection Flanges,RTJ Flange,Butt Weld,Hub end,Groove

Operate Handwheel, Wormgear, Gearbox, Penumatic Actuator

Supply Ability 10000 Piece/Pieces per Month

Port Wenzhou/shanghai

Payment Terms L/C,D/A,D/P,T/T

Standard

Design and Manufacture: DIN 3356,BS1873
Face to face(end to end): DIN 3202 F1,EN558-1
End Connection: DIN 2543(PN16), DIN 2544(PN25), DIN 2545(PN40), EN1092-1
Test and inspection: DIN3230,EN12266-1

Q&A

Can we order goods from you directly?

Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. If you require smaller quantities we will be happy to arrange an individual delivery. We would be delighted to assist you.

Can I get a discount?

This depends on the specific situation, you can call directly to consult.
