GMK Cast Steel Globe Valve

When it comes to controlling the flow of liquids in a pipeline, a globe valve is the tool of choice. It is installed at the end of a pipe and used to regulate or halt the flow of a fluid or gas via that pipe. The globe shape of a globe valve’s body is where the term comes from, as an internal baffle keeps the two portions of the valve from touching. These valves can be employed when the pressure drop across the valve is not a limiting factor, despite having slightly higher-pressure dips than gate/ball valves. Besides their more common name, globe valves are also sometimes called throttle valves. A globe valve’s primary functions are flow control and isolation. A disk-like part that can rotate and a ring seat that remains stationary make up the sphere-shaped body. A globe valve has a seat that runs centrally and perpendicular to the pipe, and it uses a disc or plug to seal off the opening in the seat. The design of a globe valve allows it to function either way.

  • Size:2″~20″
  • Rating:150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB
  • Material:WCB, LCB, LCC, WC6, WC9, C5, C12, C12A, CF8, CF8M, CF3, CF3M, CN7M, Alloy 20, B148, UB6, Hastelloy C etc
  • End connection:Flanges, RTJ flange, butt weld, hub end, groove
  • Operation:Handwheel, wormgear, gearbox, pneumatic actuator

CE Certification

ISO Standards

Warranty Included



The globe valve is most commonly used in domestic plumbing for water faucets. The disc is moved up and down in response to the handle being turned. The water is turned off after the disc is fully down. The water flow rate is maximized when the disc is fully lifted. When used in industrial settings, a globe valve may not have a manual handle but rather an electrical, pneumatic, or hydraulic actuator.


  • Capacity to effectively turn off or disconnect.
  • Control of the throttle ranges from very good to superb
  • The length of the stroke got shorter (compared to a gate valve).
  • Refinishing seats or machining them requires very little effort on the customer’s part.
  • Beneficial for use as a safety valve in order to stop leaks.

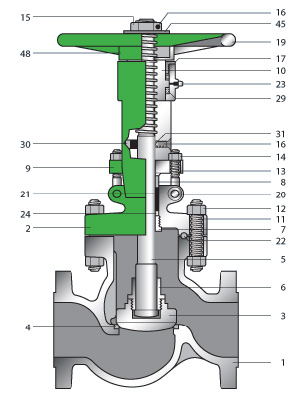

  • The straight pattern body design
  • Outside screw and yoke, bolted bonnet
  • Loose disc, choice of plug or ball
  • Renewable seat ring or body seat ring
  • Rising stem and handwheel
  • Full port or reduced bore
  • Yoke integral with the bonnet
  • Horizontal service
  • NACE MR-01-75
  • Low emission graphite gland packing


Size 2″~20″
Rating 150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB
Material WCB, LCB, LCC, WC6, WC9, C5, C12, C12A, CF8, CF8M, CF3, CF3M, CN7M, Alloy 20, B148, UB6, Hastelloy C etc
End connection Flanges, RTJ flange, butt weld, hub end, groove
Operation Handwheel, wormgear, gearbox, pneumatic actuator
Supply ability 10000 piece/pieces per month
Port Wenzhou/shanghai
Payment terms L/C, D/A, D/P, T/T
Delivery time 7-10 Working day
  • Design and manufacture: ANSI B16.34, API600, BS1873
  • Pressure-temperature rating: ASME B16.34
  • Face to face(end to end): ANSI B16.10
  • End connection: 2″-24″ ASME B16.5; 26″ -42″ ASME B16.47; B.W end ASME B16.25
  • Test and inspection: API598
Can we order goods from you directly?
Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. If you require smaller quantities we will be happy to arrange an individual delivery. We would be delighted to assist you.
Can I get a discount?
This depends on the specific situation, you can call directly to consult.
