Angle Globe Valve- GMK- Easy operation with Angle globe valve

Angle Globe Valve

The traditional design of the globe valve has been given a new twist in the form of the angle globe valve, which has a turn of 90 degrees at each end. GMK Angle globe valves with a streamlined curved bore provide greater flow while simultaneously lowering the CV value. When the valve is open, the gas or liquid rushes through it at a high rate of speed. The product of the pressure of the fluid and the area of the disc in a valve determines the amount of force that is applied by the fluid to the disc in the valve. It is beneficial in applications that have situations like these because it is resistant to the slugging impact that pulsating flow may have.

Size:50-400mm

Pressure:PN16-PN150

Connection:Flanges,RTJ Flange

Operate:Handwheel, Wormgear, Gearbox, Penumatic Actuator

Description
Technical
Standard
Q&A

DESCRIPTION

When designing Angle Globe Valve, we include packing flushing and heating steam jackets. It helps to avoid the accumulation and crystallization of the medium. It has an angled body. OS&Y with Bolted Bonnet and Pressure makes it unique and highly functional. It has a Seal Stem-lifting handwheel, either a full-bore or a reduced-bore variant, integrated into the hood., a pressure Seal Stem-lifting handwheel, and glands made of graphite that have a low-emission packing.

Benefits

The usage of GMK angle valves comes with a variety of advantages, the most notable of which are their compact size, versatility in terms of installation, and user-friendliness.
This valve is adaptable and has applications in a wide variety of fields and settings, including the plumbing, heating, ventilation, air conditioning (HVAC), refining, petrochemical, and industrial sectors, among others.
It has lesser weight.
It is easy to operate
It has a relatively low thrust load.

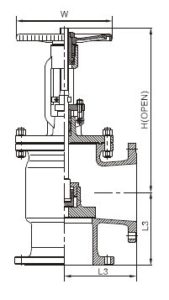

angle-globe-valve

TECHNICAL SPECS

Size 50-400mm

Pressure PN16-PN150

Connection Flanges,RTJ Flange

Operate Handwheel, Wormgear, Gearbox, Penumatic Actuator

Supply Ability 10000 Piece/Pieces per Month

Port Wenzhou/shanghai

Payment Terms L/C,D/A,D/P,T/T

Standard

Design and Manufacture:ANSIB16.34,API600,BS1873
Pressure-temperature rating: ASME B16.34
Face to face(end to end): ANSIB16.10
End Connection: ASME B16.5
Test and inspection: API598

Q&A

Can we order goods from you directly?

Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. If you require smaller quantities we will be happy to arrange an individual delivery. We would be delighted to assist you.

Can I get a discount?

This depends on the specific situation, you can call directly to consult.
