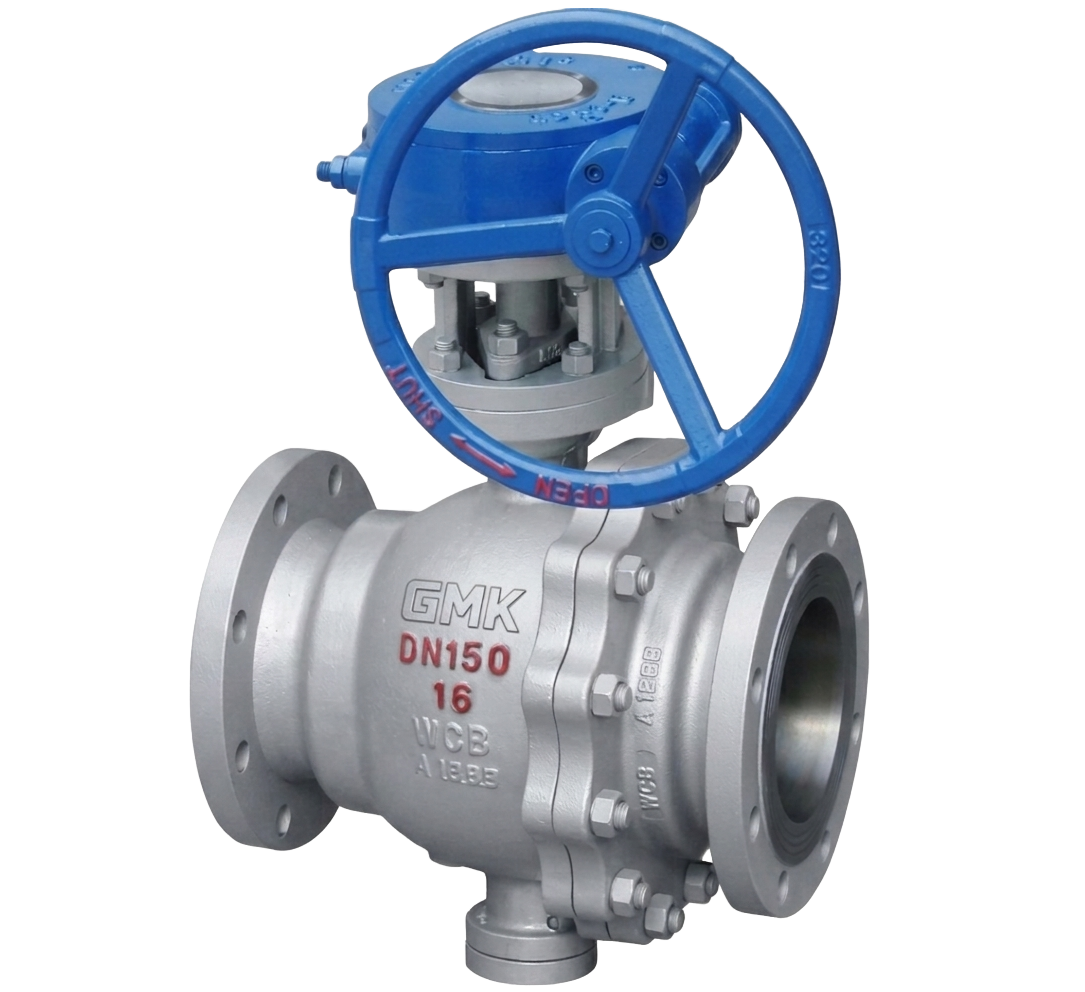

What is Ball Valves?

When regulating flow using a ball valve, also called a quarter-turn valve, a revolving ball that has a hole drilled through it is used. This allows the ball to spin freely while the hole is exposed. When the hole in the item is oriented in the same direction as the flow of the liquid or gas, it is feasible for the liquid or gas to pass through the hole. Alternately, the flow may be completely interrupted when the ball is turned ninety degrees in the other direction from where it was originally moving. The handle serves as a point of reference for assessing the operating status of the valve in any of the two possible scenarios. The valve is considered to be in an open state when the handle is in a horizontal position about the valve. On the other hand, the valve is in the closed position whenever the handle is in the perpendicular position, which is the opposite of the open position.

When a valve is in the open position, the hole in the ball will be in the same plane as the opening for the flow of fluid. This suggests that the valve is working in a system that alternates between opening and closing. When the valve is in the closed position, the handle turns the ball’s hole through a straight angle of ninety degrees, which blocks the passage of liquids. It is not suggested to use ball valves to control the flow in a manner that is either half-open or half-closed in any way. This might lead to an unsafe situation. This is because the pressure has the potential to break down certain portions of the valve, which is the reason for this.

Working of Ball Valves:

Ball valves are distinguished from other types of valves by the presence of a hollow ball that, when the valve is in the open position, allows flow through the valve but, when it is in the closed position, restricts passage. A lever, which is operated by a spindle that fits into a slot machined into the hollow ball, opens and closes the hollow ball. The slot was machined into the hollow ball. The spindle, which is inserted into the groove that has been carved into the hollow ball, is what drives the ball. The spindle of the ball valve is encased in the neck of the valve body to prevent leakage, and the neck of the valve is sealed using a variety of neck seals.

In addition to this, the ball is located in the middle of two body/ball seats that work together to provide a tight seal. They perform a wiping motion, removing any particles from the surface of the ball that may have been carried through the air by the ball as it passes back and forth between the seats in the arena. It is vital to note that abrasive substances can harm the seats as well as the surface of the ball, which will finally result in leakage. This is something that should be avoided at all costs. It’s conceivable that anything firm, stringy, or fibrous might prevent the ball from closing completely. This is a possibility. The two-way configuration of a ball valve is the most common kind of design. This arrangement enables flow to go in either direction between the intake and the output of the valve. Ball valves with three and four-way passageways enable flow to be directed in a variety of different directions.

Why should we buy a Ball valve?

Despite the fact that there is a wide selection of ball valves available on the market from a variety of different manufacturers, each one is most effective when used in a certain environment. For instance, a steel ball valve that was intended to be used in a facility that processes chemicals may not be up to the challenge of satisfying the standards for use in an environment that is considered to be sanitary. Ball valves may be used to seal off pipelines and can also be used to control the flow of fluids in a specific direction. Ball valves come in a variety of sizes and shapes. When designing valves that are specific to a particular application, the designer has to be mindful of whether or not the following criteria will be met:

The valve prevents any flow from going through it in any direction.

The valve makes it possible to alter the flow of water between the many different sources.

The main trunk is the point from which branches originate, and these branches flow to two different locations (applies to 3-way ball valves).

Advantages of Ball Valve:

The primary benefits of a ball valve are as follows:

  • Ball valves are high recovery valves because of the large aperture in the ball, which allows for a minimal pressure drop and great flow capacity. When the valve is completely open, there is very little turbulence and resistance to the flow of fluid.
  • Because they only need a quarter turn (90 degrees) to open and close, ball valves are both practical and easy to use. Because of its tiny size and low weight, the valve may be quickly and easily attached or detached from its mounting.
  • Ball valves are easy to use and need less upkeep compared to other kinds of valves. The packing seal on the stem of a ball valve seldom needs replacing since the stem only spins in one plane. Ball valves may be quickly taken apart to replace any worn components.
  • In comparison to other, more intricate valve designs, ball valves provide significant cost savings. They are also less expensive to maintain because of their minimal upkeep requirements. do anything about it in the long run.
  • Ball valves can handle more pressure than most other valve types. They may be utilized in a broad variety of settings and across many different sectors because of the materials they are made from.

Applications of Ball Valves:

In the industrial world, ball valves are put to work in a broad range of different applications. They provide consistent protection against the occurrence of leaks throughout the system. Ball valves have a very low-pressure drop and a quick opening and shutting time, which are two of their defining characteristics. In addition to being engaged by hand manipulation, they may also be operated by pneumatic or electric quarter-turn actuators. Because they can be built utilizing such a broad variety of construction materials, trim options, and design configurations, ball valves have a high degree of adaptability.

From where to buy the best Ball valve?

Since it started the very first online shop in valves in 2003, GMK has been acknowledged as one of the most successful online valve merchants in the world. It offers one of the widest selections of goods now on the market. This was done in response to requests from clients who wanted to be able to shop online for valves, process, and control solutions. Since that time, the business has earned a reputation for providing customers with one of the widest possible ranges of product options.

Why GMK?

GMK provides its valves, actuation, and process control solution products to a wide variety of various sorts of organizations all over the world. These businesses include power stations, hospitals, food and beverage firms, laundries, and steam plants. GMK is a recognized authority in various fields. We offer one of the greatest collections of valves that can be obtained online. Our inventory includes steam traps, pneumatics, solenoid valves, actuated valves, and control valves in addition to ball valves, butterfly valves, knife gate valves, globe valves, diaphragm valves, and globe valves. On our website, you can discover not only these valves but also many more. We are able to provide ball and butterfly valves with actuators of an exceptionally high standard. Because our technical experts perform the actuation in-house, you can be certain that the solutions we supply are not only trustworthy but also cost-effective and have a long lifetime. In our state-of-the-art workshop that specializes in valve actuation, we make actuated and control valves according to the parameters provided by the client, and we put those valves through testing. We are always trying to enhance not just the features of our products but also our websites and the way that we display, explain, and organize our inventory so that it is simple for you to purchase things online.

What Ball valve GMK offers:

When it comes to the variety and types of Ball valves, GMK covers all the bases and offers a number of ball valves. Some of them include Inconel Ball ValvePure Nickel Ball Valve, etc.


It is not a simple task to choose suitable ball valves for the many different industrial applications that exist. It is necessary to conduct research on the numerous rules and standards that govern the valve industry. Additionally, it is necessary to conduct an in-depth analysis of the technical requirements of the pipeline and to make a well-balanced selection of the materials that are used in the production process. After reading this blog, engineers and pipeline designers will be equipped with the information essential to make informed judgments and choose ball valves that are trustworthy and give long-term service.
