Cast Steel Floating Ball Valve

Cast steel floating ball valves are floating ball valves that have a body made of cast steel. They get their name from the material that makes up the valve body. GMK Cast Steel Floating Ball Valve, which has a broad temperature range at which it may operate, is perfect for low-pressure applications. Cast Steel Floating Ball Valve offers ball valves that are part of this series in a wide variety of sizes and materials, all of which are compatible with API, ASME, DIN, JIS, and NOSOK regulations. End connectors with flanges are a typical kind of accessory.

Size:2 inch -24 inch

Pressure:Class150,Class300,Class600,Class900,Class1500

Material:A216 WCB, A352 LCB,LCC, WC6,WC9, C5,C12,C12A, CF8,A315 CF8M, CF3, CF3M, CN7M,Alloy 20,B148,UB6 904l,Hastelloy C ect

Connection:Flanges,RTJ Flange,Butt Weld,Hub end,Groove

Description
Technical
Standard
Q&A

DESCRIPTION

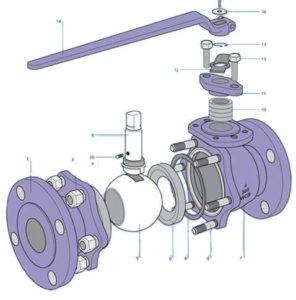

Cast steel floating ball valves are compact. Because of its low-pressure ratings and relatively small size, the valve must be operated manually (with a lever or a gear), since the amount of torque necessary to open or close the valve is very low. GMK Cast steel floating ball valves are often used for on/off control with little throttling capabilities. It has an Asymmetrical Two-Piece Design. It contains a Stem that won’t burst if you accidentally let the ball float away. The ISO 5211 mounting configuration with low torque value available on demand makes this product ideal.

Benefits

In systems ranging from medium to low pressure, this Cast steel floating ball valve is often used for the purpose of controlling the flow of liquids and gases.
The seats are lightweight, which makes them cost-effective.
Because of its modest weight, it is able to work efficiently and securely.
It has economical and Convenient Nature of the Slender Design
Customizable
Very little impediment to the movement of things
There is dependability in the sealing functions.
Simple in both construction and design

cast-steel-floating-ball-valve

TECHNICAL SPECS

Size 2 inch -24 inch

Pressure Class150,Class300,Class600,Class900,Class1500

Material A216 WCB, A352 LCB,LCC, WC6,WC9, C5,C12,C12A, CF8,A315 CF8M, CF3, CF3M, CN7M,Alloy 20,B148,UB6 904l,Hastelloy C ect

Connection Flanges,RTJ Flange,Butt Weld,Hub end,Groove

Operate Hand lever, Wormgear, Gearbox, Penumatic Actuator

Standard

Design and Manufacture: API6D, BS5351,ASME B16.34
Pressure-temperature rating: ASME B16.34
Face to Face(end to end): ANSI B16.10,API6D
Flange End: ASME B16.5
Butt-welding Ends: ASME B16.25
Test and inspection: API598,API6D,BS5146
Fire safe design: API607,API6FA
