DESCRIPTION

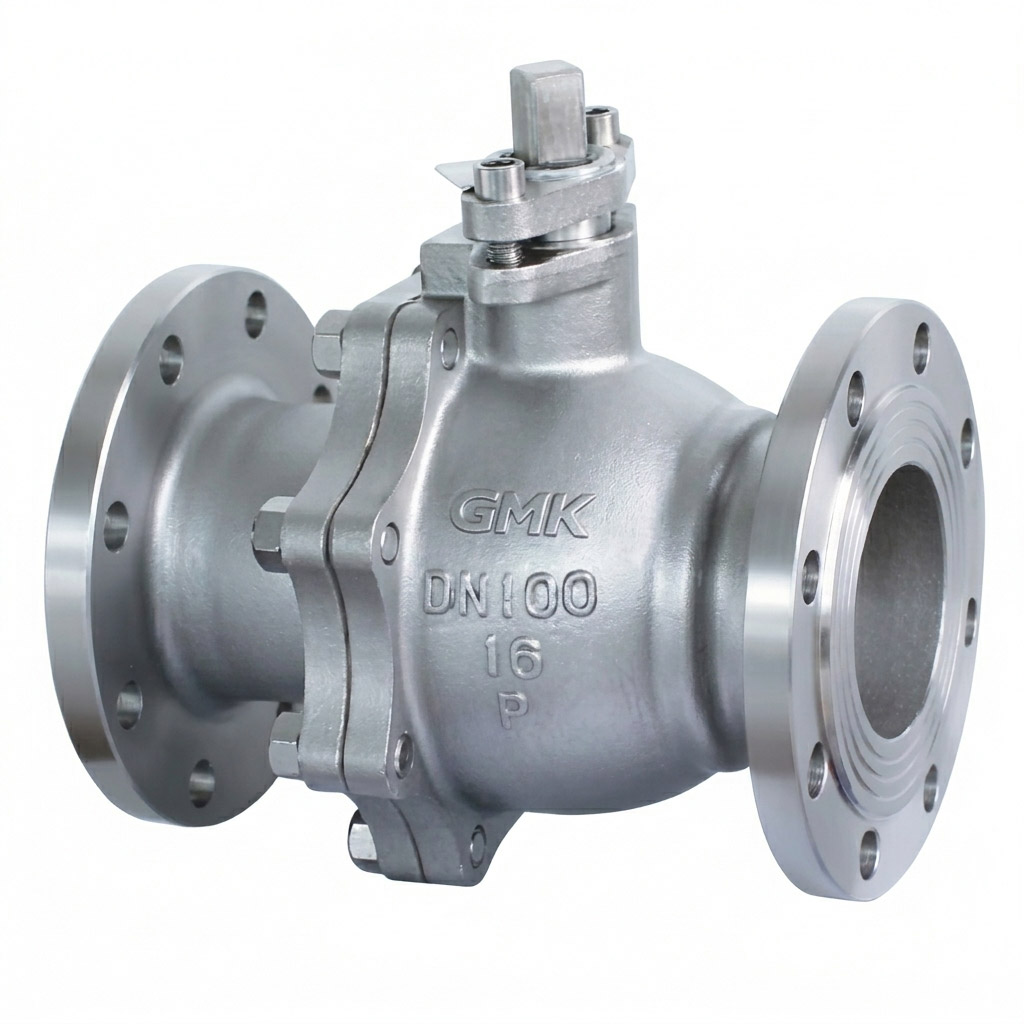

Advanced Design of Stainless Steel Ball Valve

=”text-align: center;” data-start=”1285″ data-end=”1450″>The DIN Stainless Steel Ball Valve features a robust split-body design that ensures high mechanical strength and reliable operation under various working conditions.

The optimized valve structure includes:

Floating ball or trunnion mounted ball design
Two-piece or three-piece body construction
Anti-blowout stem structure
Fire-safe design
Anti-static device
ISO 5211 actuator mounting option
NACE MR-01-75 compliance

This advanced design provides safe operation, easy maintenance, and extended service life for industrial applications.

Reliable PTFE Seat Sealing Performance

The valve uses PTFE + 15% fiberglass reinforced seats to improve sealing reliability and wear resistance.

The reinforced PTFE seat provides:

Excellent chemical resistance
Low friction operation
Reliable shut-off performance
Reduced leakage risk
Extended service life

This sealing technology makes the valve suitable for applications involving corrosive fluids and demanding process conditions.

TECHNICAL SPECS

Size DN15-DN600

Pressure PN16 PN25 PN40 PN64

Material A105, WCB, CF8, CF8M, CF3, CF3M ect

Connection Flanges

Operate Hand Lever, Gearbox, Penumatic Actuator, Electric Actuator, Hydraulic Actuator

Supply ability 10000 piece/pieces per month

Port Wenzhou/shanghai

Payment terms L/C, D/A, D/P, T/T

Key Benefits of DIN Stainless Steel Ball Valve

le=”text-align: center;” data-section-id=”1lgsni1″ data-start=”2344″ data-end=”2378″>Excellent Corrosion Resistance

The stainless steel construction provides superior resistance against corrosion, oxidation, and aggressive industrial media.

This makes the valve suitable for chemical processing, petrochemical, pharmaceutical, and other corrosion-sensitive applications.

Reliable Shut-Off Performance

The precision ball and seat design ensures tight sealing performance and stable operation during frequent opening and closing cycles.

Low Maintenance and Long Service Life

The durable stainless steel body, reinforced PTFE seats, and anti-blowout stem structure help reduce maintenance requirements and extend valve service life.

Flexible Industrial Applications

The DIN standard ball valve can be configured with different materials, sizes, and connection options to meet various pipeline requirements.

Main Features of DIN Stainless Steel Ball Valve

The valve includes the following features:

Stainless steel body construction
DIN standard design
Floating ball and trunnion mounted options
PTFE reinforced seat
Two-piece and three-piece body design
Fire-safe construction
Anti-static protection
Anti-blowout stem
ISO 5211 actuator mounting option
High corrosion resistance
Reliable sealing performance
Long service life
Easy maintenance

Applications of Stainless Steel Ball Valve

The DIN Stainless Steel Ball Valve is widely used in industries requiring corrosion-resistant and reliable fluid control solutions, including:

Chemical processing systems
Oil and gas pipelines
Pharmaceutical industries
Food and beverage processing
Water treatment systems
Petrochemical plants
Industrial fluid control systems
Process pipeline applications

Its excellent corrosion resistance and dependable sealing performance make it an ideal solution for demanding industrial environments.

a-start=”4218″ data-end=”4259″>Technical Standards and Specifications

Design and Manufacture

DIN 3352

Face-to-Face Dimensions

DIN 3202 F4 for DN15-DN100
DIN 3202 F5 for DN150-DN600

End Connection

DIN 2543

Testing and Inspection

DIN 3230

DIN Ball Valve

Standard

Why Choose Our DIN Stainless Steel Ball Valve?

e=”text-align: center;” data-start=”4509″ data-end=”4707″>European standard design, durable stainless steel construction, and advanced sealing technology provide reliable performance for industrial fluid control systems.

With excellent corrosion resistance, flexible configuration options, and long-term operational reliability, this valve is an ideal choice for customers looking for a high-performance DIN standard ball valve solution.

Q&A

Can we order goods from you directly?

Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. If you require smaller quantities we will be happy to arrange an individual delivery. We would be delighted to assist you.

Can I get a discount?

This depends on the specific situation, you can call directly to consult.
