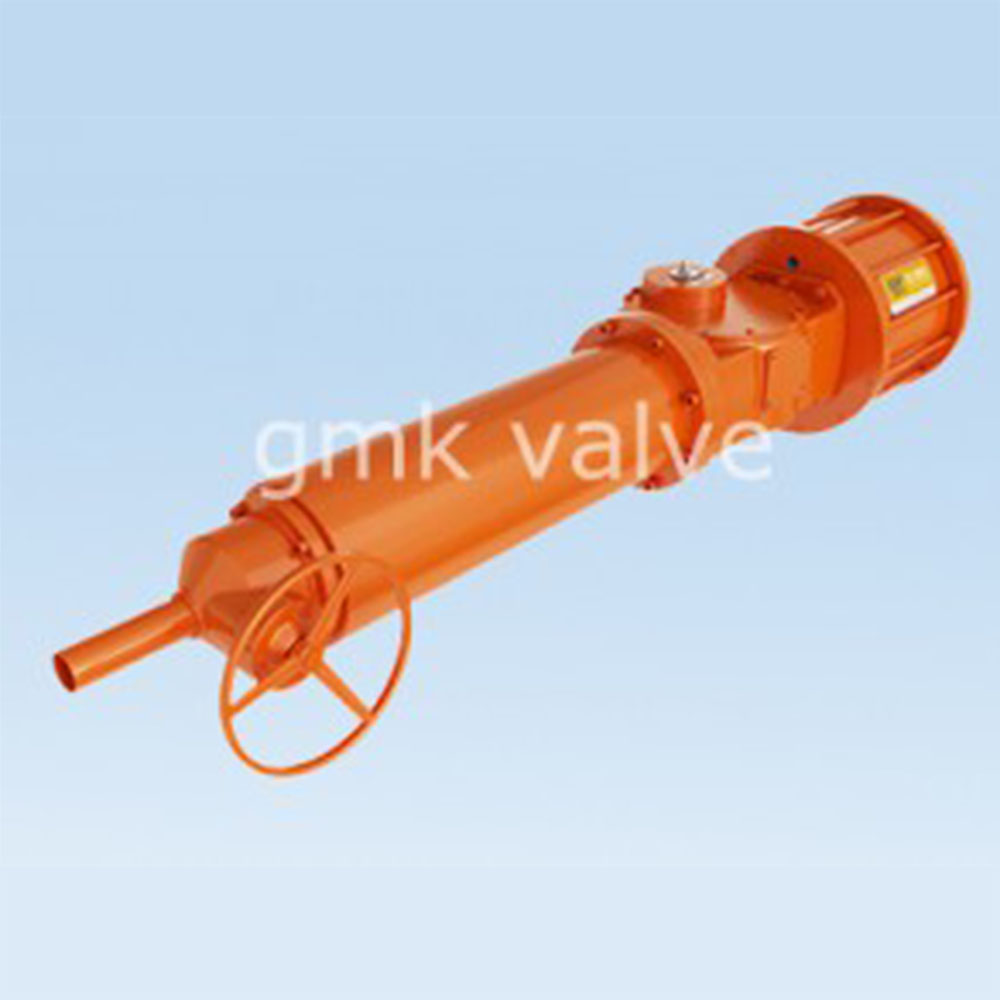

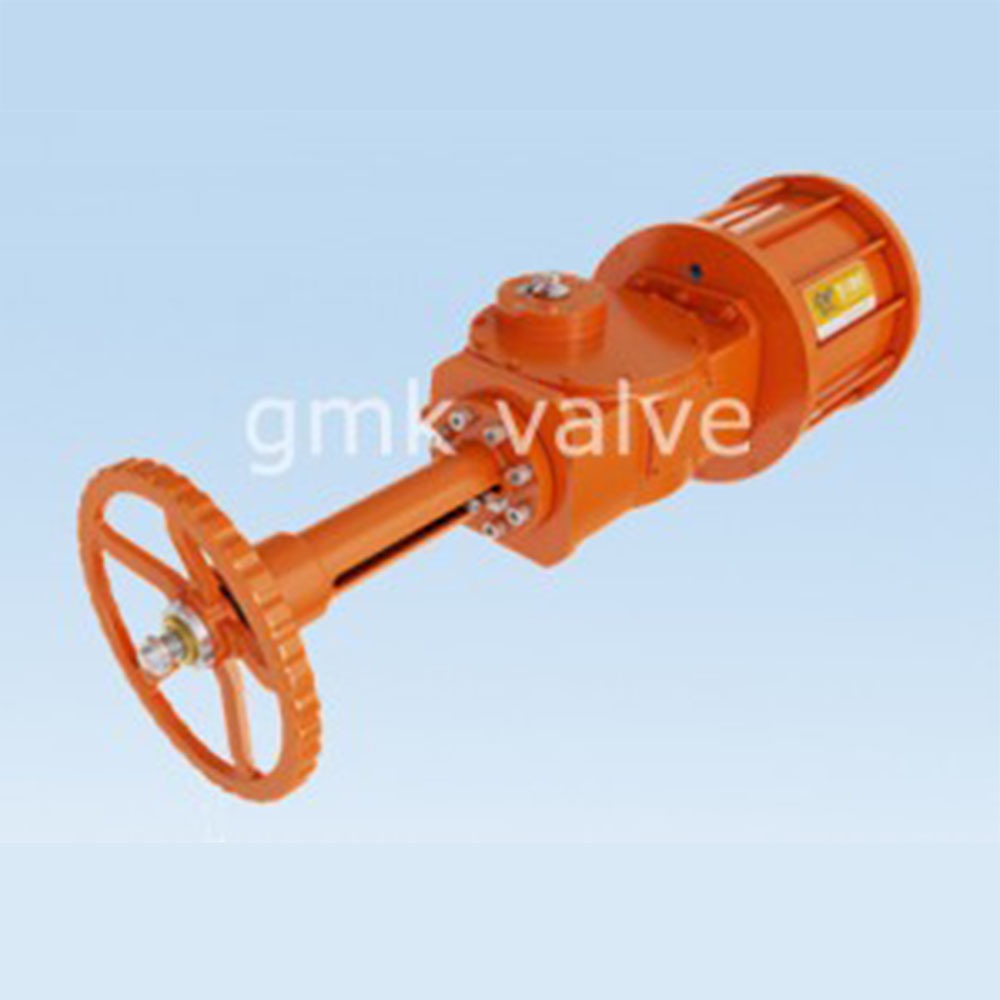

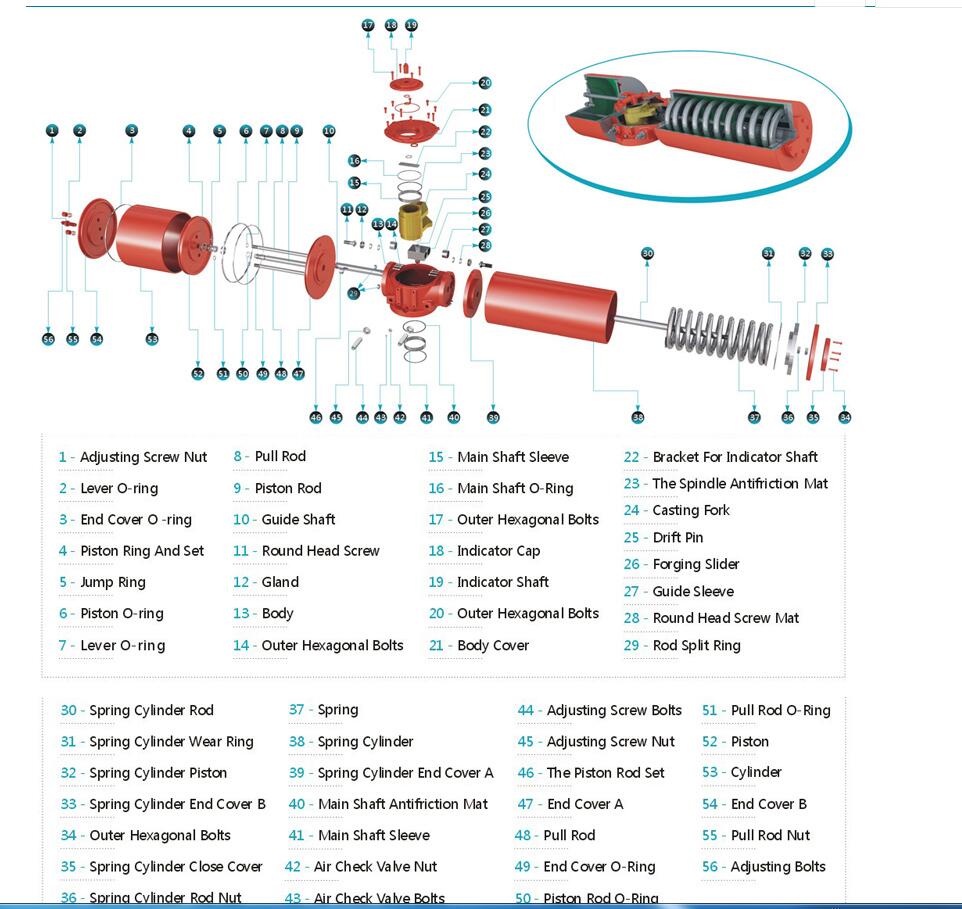

Scotch Yoke Type Pneumatic Actuator

The highly skilled engineers of GMK have manufactured the scotch-type pneumatic actuator. Heavy-duty applications call for the usage of these Scotch Yoke Actuators. They are produced with a startling variety of permutations of sizes, cylinder diameters, and patterns to choose from. Actuators known as Scotch Yokes are built to function reliably in environments with a diverse range of temperatures and pressures. It has a piston rod that is coupled to a yoke that rotates in response to the linear motion of the piston. This results in the piston moving in a circular motion.

Working Pressure:From 3 bar up to 7 bar (Designed for 10 Bar)

Standard Temperature:-20℃+80℃

Low Temperature:-40℃+80℃

High Temperature:-20℃+120℃

Description
Technical
Applications
Q&A

DESCRIPTION

The GMK scotch-type pneumatic actuator has an operating temperature range of -20 degrees Celsius to 80 degrees Celsius. Hard chrome plating is applied to both the guide rod and the piston rod to give an exceptionally high level of wear resistance. Actuators are always kept lubricated with components and lubricants that are suitable for the operating conditions they are subjected to. The cylinder of it has an inside coating of either ENP or hard chrome, while the exterior has an epoxy coating. It features superior seals and springs, which should allow it to last for a very long time.

Benefits

The scotch-type pneumatic actuator provides unwavering protection against corrosion and risk of injury, even in the most dangerous of environments.
The method of installing it is simple, and it entails less effort when it comes to upkeep.

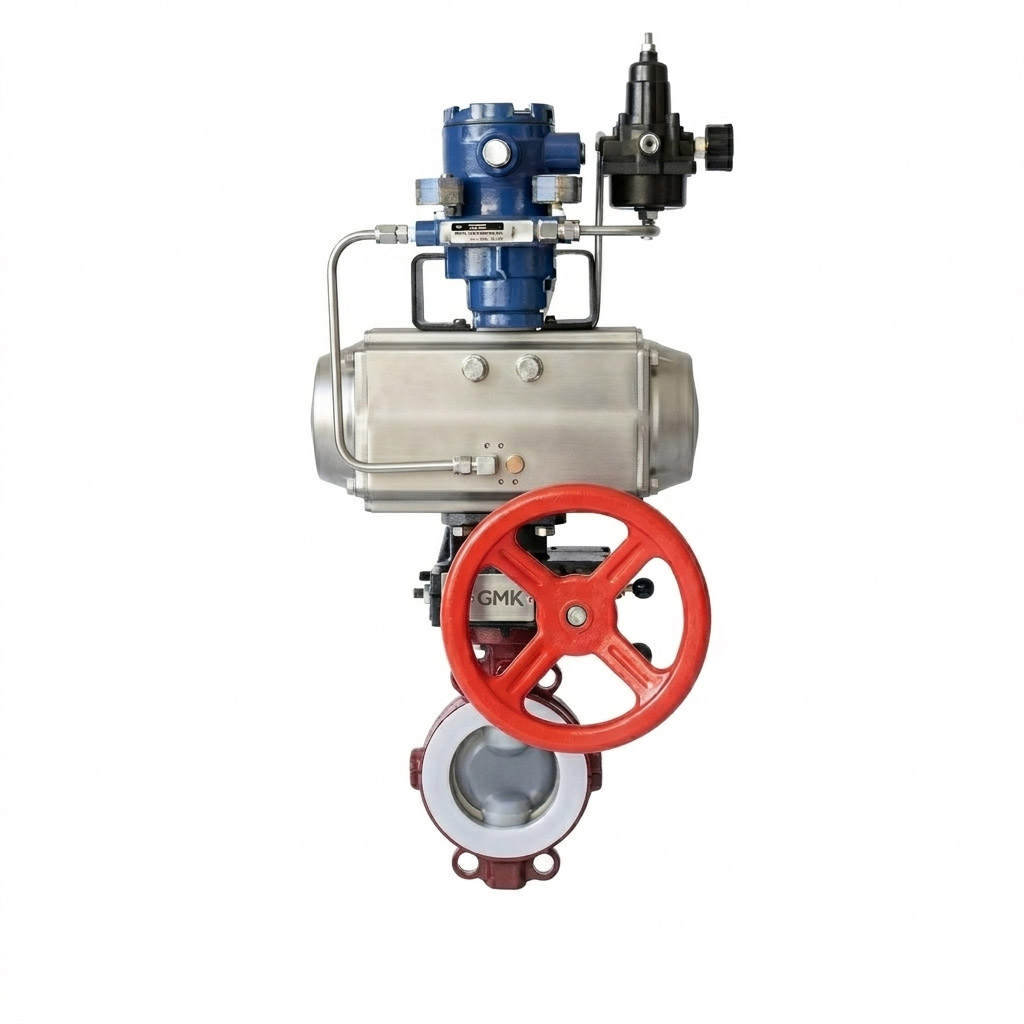

It is appropriate for use with the ball valve and the butterfly valve, both of which demand a larger torque.
It has applications in a variety of industries, including the food and beverage industry, the oil and gas industry, the pulp and paper industry, and others.

Scotch Yoke Type Pneumatic Actuator

TECHNICAL SPECS

Double Acting Output Torque (N.m)

Model	3bar		4bar		5bar		6bar		7bar
Model	Start	End	Start	End	Start	End	Start	End	Start	End
HX-G17-DA250	1326	1326	1768	1768	2210	2210	2705	2705	3093	3093
HX-G17-DA280	1663	1663	2217	2217	2772	2772	3326	3326	3093	3093
HX-G20-DA300	2496	2496	3329	3329	4161	4161	4993	4993	5825	5825
HX-G20-DA320	2840	2840	3787	3787	4734	4734	5681	5681	5825	5825
HX-G22-DA320	3342	3342	4456	4456	5569	5569	6683	6683	7797	7797
HX-G22-DA360	4229	4229	5639	5639	7049	7049	8459	8459	7797	7797
HX-G25-DA360	4652	4652	6203	6203	7754	7754	9305	9305	10855	10855
HX-G25-DA400	5744	5744	7658	7658	9573	9573	11487	11487	10855	10855
HX-G28-DA400	6527	6527	8702	8702	10878	10878	13053	13053	15229	15229
HX-G28-DA450	8260	8260	11014	11014	13767	13767	16521	16521	15229	15229
HX-G32-DA450	8921	8921	11895	11895	14869	14869	17842	17842	20817	20817
HX-G32-DA500	11013	11013	14685	14685	18356	18356	22028	22028	20817	20817
HX-G35-DA500	12237	12237	16317	16317	20396	20396	24475	24475	28554	28554
HX-G40-DA550	14808	14808	19743	19743	24679	24679	29615	29615	34551	34551
HX-G45-DA600	17622	17622	23496	23496	29370	29370	35244	35244	41118	41118
HX-G50-DA700	28783	28783	38377	38377	47972	47972	57568	57568	67160	67160
HX-G55-DA800	37594	37594	50125	50125	62657	62657	75188	75188	87720	87720
HX-G60-DA850	51871	51871	69162	69162	86452	86452	103750	103750	121033	121033

Applications

SPRING RETURN • DOUBLE ACTING
• Chemical and Petrochemical
• Food and Beverage
• HVAC
• Marine
• Mining
• Oil and Gas
• Original Equipment Manufacturing
• Pulp and Paper
• Semiconductor
• Water and Wastewater
