DESCRIPTION

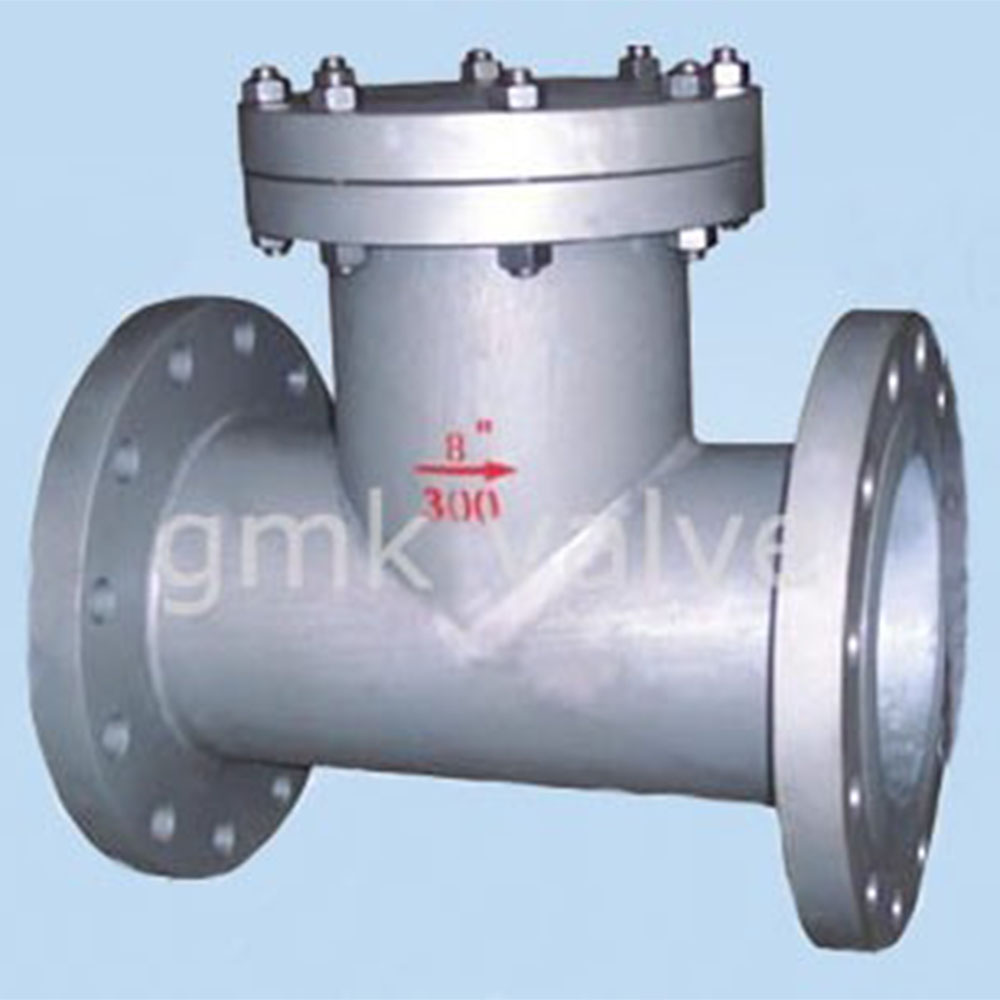

What Is a T-Type Strainer?

A T-Type Strainer is commonly installed in large-diameter pipelines with nominal sizes of 2 inches and above. Therefore, it is widely used as a permanent filtration solution for industrial systems handling high flow rates. In addition, the strainer can be connected through flanged or butt-weld ends to match different pipeline designs.

The streamlined body efficiently removes foreign particles while maintaining smooth media flow. Furthermore, the compact structure supports both horizontal and vertical installation according to project requirements. As a result, the filtration system improves equipment protection while reducing maintenance costs.

TECHNICAL SPECS

Size 2″-40″

Pressure 150LB,300LB

Material WCB, LCB,LCC, WC6,WC9, C5,C12,C12A, CF8, CF8M, CF3, CF3M, CN7M ect

Connection Flanges

Supply Ability 10000 Piece/Pieces per Month

Port Wenzhou/shanghai

Payment Terms L/C,D/A,D/P,T/T

T-Type Strainer Design Features

The durable body is manufactured for demanding industrial applications requiring reliable and continuous filtration. Moreover, GMK VALVE offers customized designs with quick-opening covers, pressure gauge connections, vent ports, and elbow-type configurations. Therefore, customers can select a solution that matches their operating conditions.

The intake and outlet can also be positioned at a 90-degree angle for installations with limited space. In addition, available sizes range from 2 inches to 40 inches, making the product suitable for a wide range of industrial pipeline systems.

Features of T-Type Strainer

The strainer operates within a temperature range of -30°C to 380°C for carbon steel and -80°C to 450°C for stainless steel. Moreover, the available pressure ratings range from 0.6 MPa to 5.0 MPa, providing dependable performance under different operating conditions.

Customers can choose sealing materials including Asbestos, NBR, PTFE, and Graphite with Stainless Steel according to application requirements. Furthermore, the stainless steel filter element is available with mesh sizes from 18 to 480 mesh, while customized specifications are also available.

Benefits of T-Type Strainer

The quick-release cover allows faster inspection and cleaning while minimizing maintenance downtime. Therefore, routine servicing becomes easier and more efficient.

Moreover, the optimized internal flow channel increases flow capacity while reducing pressure loss throughout the pipeline. As a result, the strainer delivers stable filtration performance even in high-flow industrial systems.

The compartment cover can be safely opened during horizontal installation with minimal fluid loss. Furthermore, the durable construction supports continuous operation in demanding industrial environments.

Applications of T-Type Strainers

A T-Type Strainer is widely used in water treatment, chemical processing, oil and gas, mining, marine engineering, power generation, and other industrial pipeline systems. Moreover, it effectively removes solid contaminants before they reach sensitive downstream equipment.

Therefore, many industrial operators select this filtration solution to improve equipment reliability and reduce maintenance frequency. In addition, its high flow capacity makes it suitable for large-diameter pipeline applications.

Technical Specifications

The T-Type Strainer is designed and manufactured according to ANSI B16.34 standards. Moreover, its pressure-temperature ratings comply with ASME B16.34, while face-to-face dimensions follow ANSI B16.10.

Flanged end connections from 2″ to 24″ comply with ASME B16.5, while 26″ to 42″ flanges follow ASME B16.47. In addition, butt-weld ends meet ASME B16.25, and every product is tested according to API 598 before delivery.

Standard

Why Choose GMK VALVE?

GMK VALVE specializes in manufacturing industrial strainers and valves with advanced production equipment and strict quality control. Moreover, every product undergoes comprehensive inspection to ensure reliable performance and long-term durability.

In addition, our engineering team provides customized solutions based on pipeline size, material, connection type, pressure rating, and application requirements. Therefore, customers receive dependable filtration products that improve system efficiency while lowering operating costs.

Conclusion

This industrial strainer provides reliable filtration, high flow capacity, and durable construction for demanding pipeline applications. Furthermore, its flexible design, customizable configurations, and dependable performance help protect valuable equipment while reducing maintenance requirements. Choosing GMK VALVE means investing in reliable filtration solutions that deliver long-term operational value.
