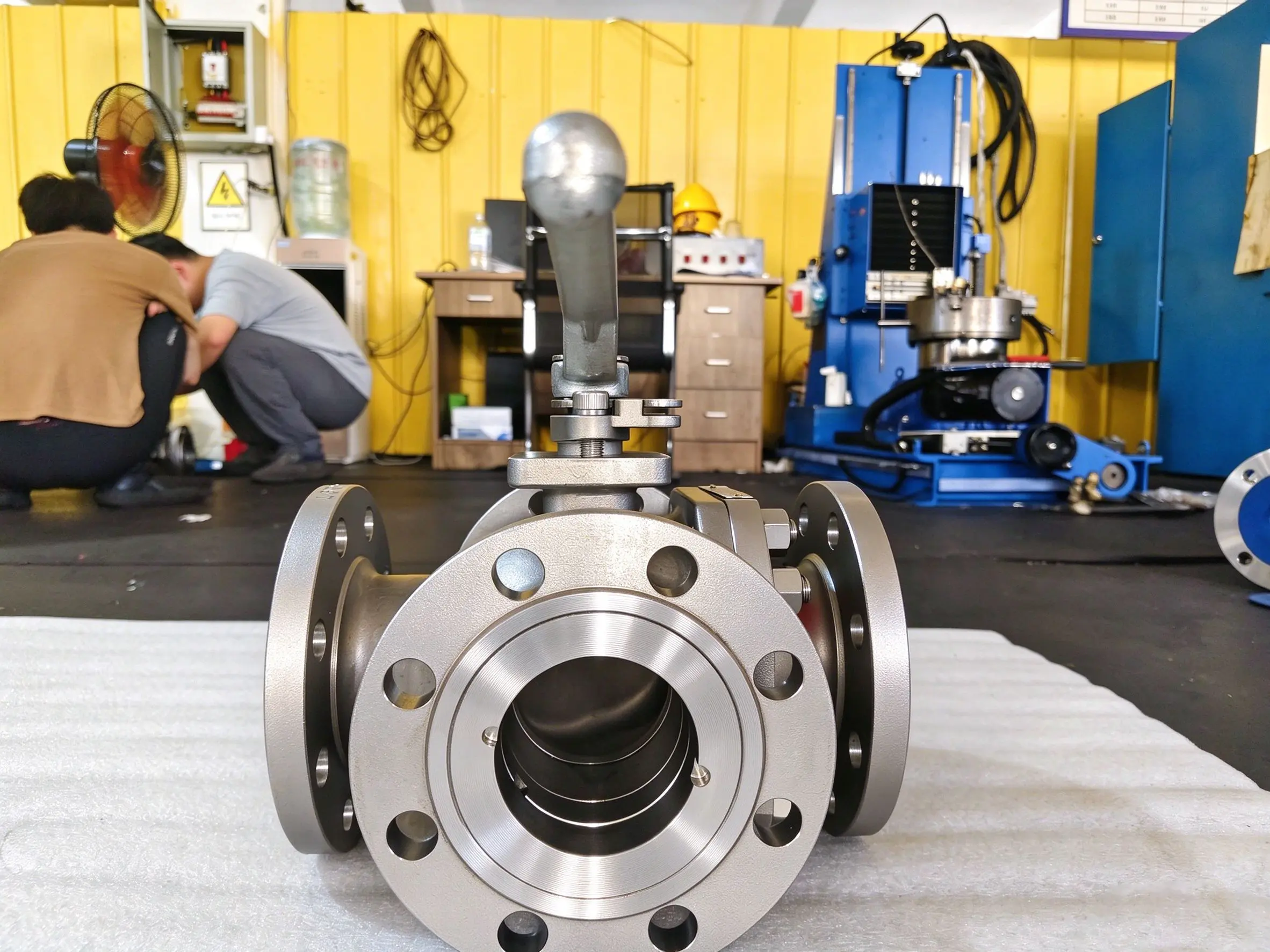

A 4-way ball valve is a multi-port flow control valve that directs media between four pipe connections using a perforated ball. With a single 90-degree quarter-turn, operators can switch flow paths, mix streams, or divert flow — replacing what would otherwise require two or three separate 2-way ball valves and additional actuators.
GMK Valve manufactures precision-engineered 4-way ball valves in stainless steel, carbon steel, and super duplex alloys for petrochemical, chemical, power, and water treatment industries worldwide. This guide explains how a 4-way ball valve works, the L-port versus T-port difference, common applications, and selection criteria.
What Is a 4-Way Ball Valve?

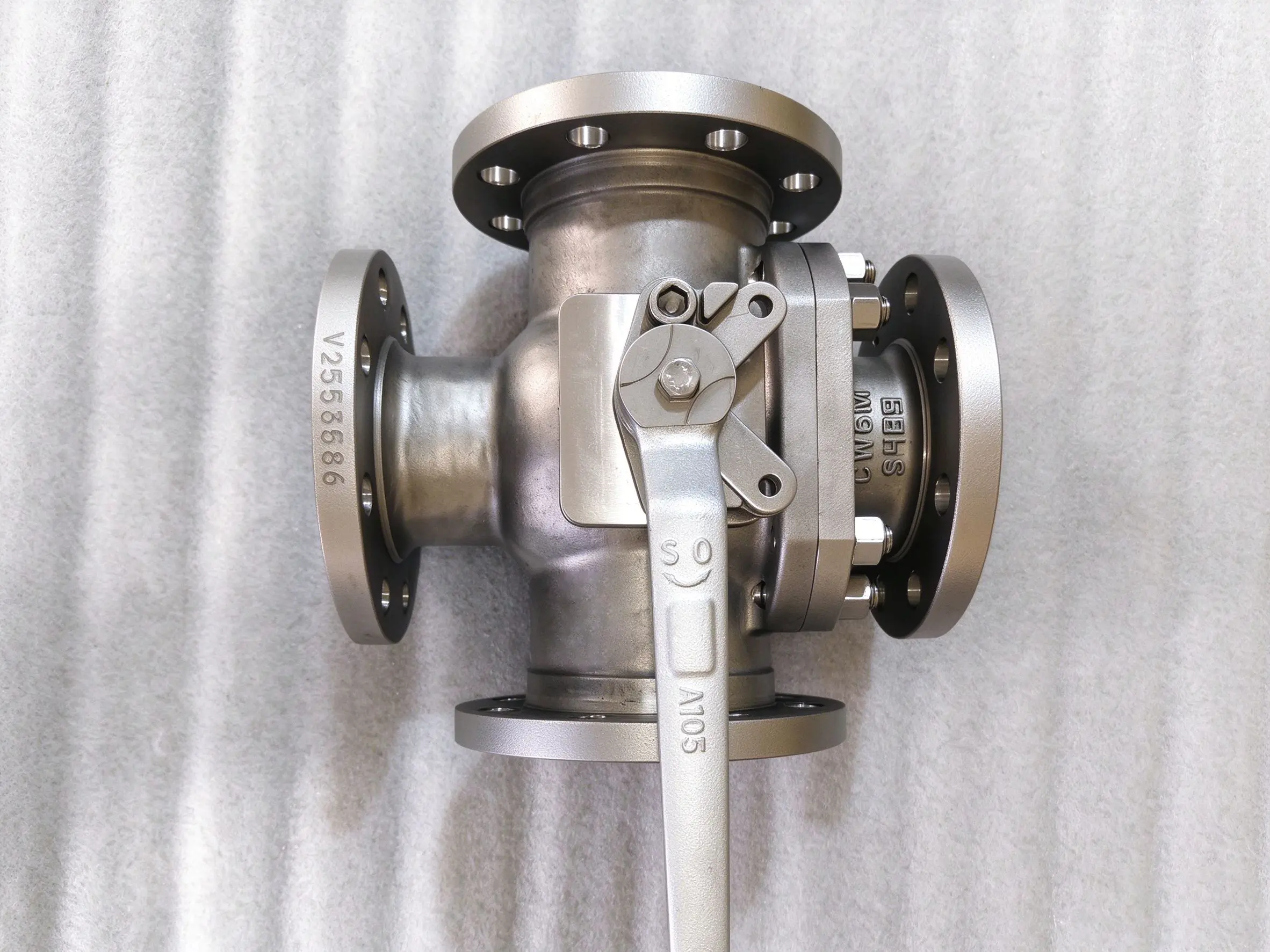

A 4-way ball valve has four ports and a specially designed ball bore that connects selected ports depending on the handle position. By rotating the ball 90 degrees, the valve changes which ports are connected, allowing flow to be redirected from one line to another without stopping the pump or manually changing valve configuration.

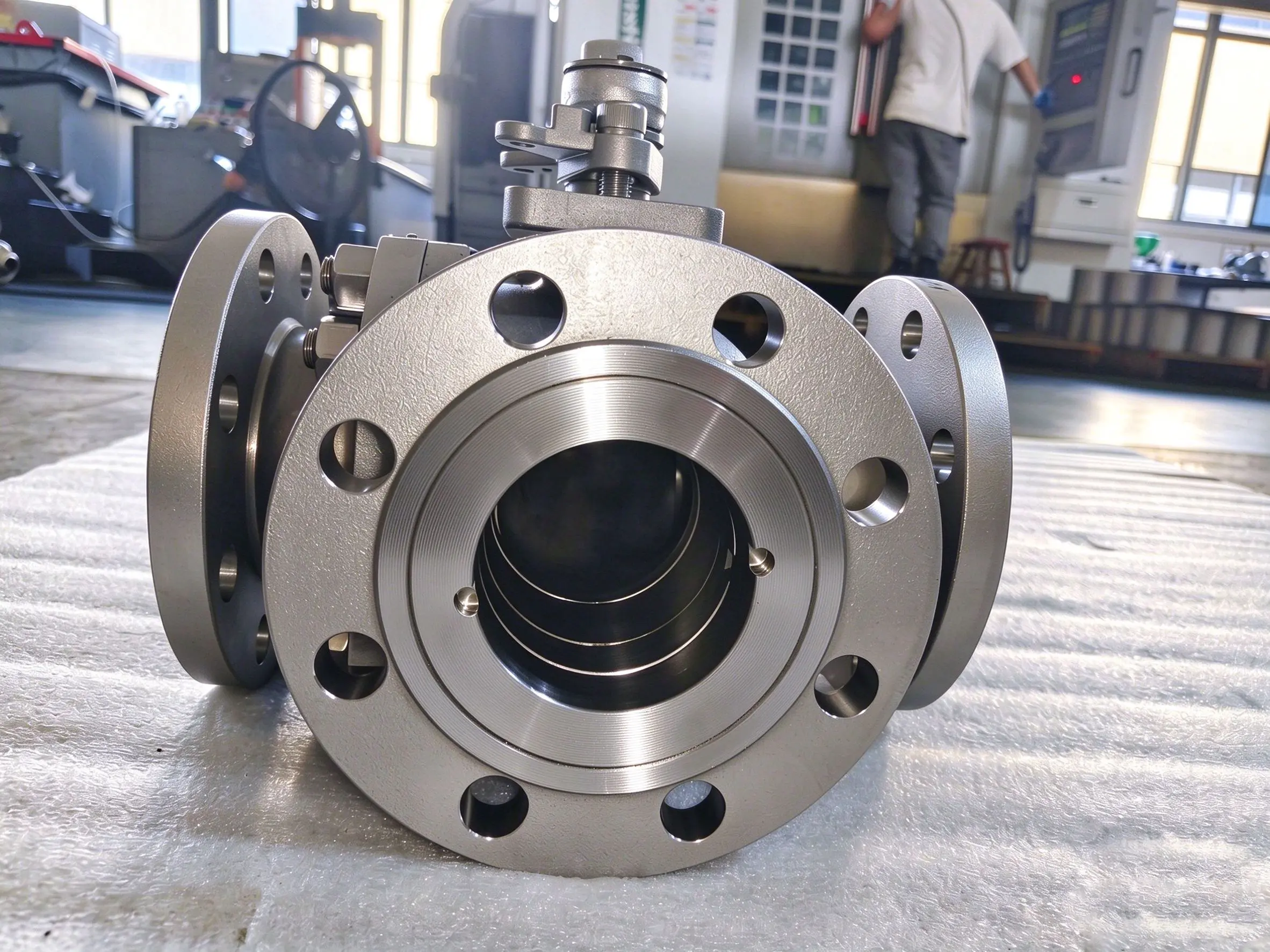

Common body designs include flanged ends (ASME B16.5, JIS 10K, PN16/PN40), wafer, and threaded connections. GMK four-way ball valves are available in sizes from DN15 to DN300 and pressure ratings up to Class 600.
L-Port vs T-Port: Which Do You Need?
The internal ball bore geometry determines flow behavior in any 4-way ball valve:
- L-port 4-way ball valve: Connects two ports at a time. Ideal for diverting flow between two lines, such as pump A to line B or pump A to line C. Cannot connect two inlets simultaneously.
- T-port 4-way ball valve: Connects three ports together at certain positions, enabling mixing or distribution of flow between multiple sources. Used for blending media or feeding one outlet from two sources.
Key Applications of a 4-Way Ball Valve
Engineers specify a four-way ball valve wherever flow direction changes are needed:
- Pipeline switching: Diverting product flow between filters, heat exchangers, or storage tanks without shutdown.
- Steam and condensate systems: Reversing flow direction in cleaning or flushing cycles.
- Cryogenic and LNG service: Directional control in loading and unloading terminals.
- Chemical injection skids: Selecting different injection chemicals based on process requirements.
- Pharmaceutical and food processing: CIP/SIP flow reversal and media switching.

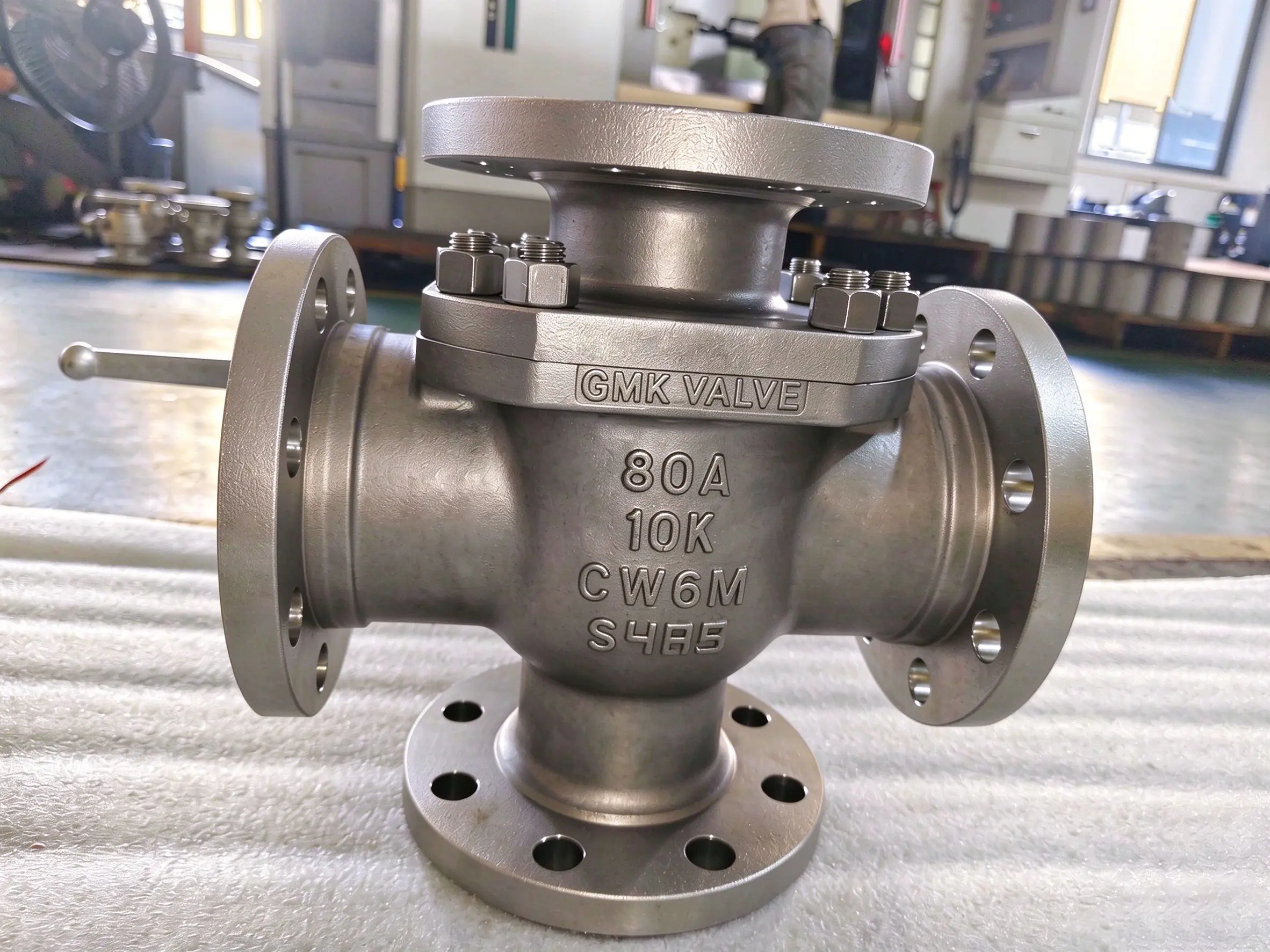

Materials and Pressure Ratings
GMK offers 4-way ball valves in a range of materials matched to the process medium:
- CF8M / CF8 (304/316 stainless steel) — general corrosive service
- WCB (cast carbon steel) — oil, gas, and water service
- CN7M / CW6M / Duplex / Super Duplex — seawater, chloride, and acidic service
- Hastelloy / Alloy 20 — highly corrosive chemical applications
End flanges meet ASME B16.5, JIS B2210 (10K/20K), EN1092 PN16/PN40, and GB standards. Fire-safe design to API 607 is available on request. Learn more about our 4-way ball valve product line and compare with our standard 2-way ball valve range.
Why Choose GMK Valve as Your 4-Way Ball Valve Manufacturer?
Since 2007, GMK Valve has supplied multi-port ball valves to customers in over 40 countries. Every 4-way ball valve undergoes shell and seat leakage testing before shipment. Our CNC machining center ensures tight tolerances on ball and seat surfaces, delivering reliable shut-off and long service life.
We can customize port configurations, bore sizes, end connections, and actuator mounting to match your exact piping specification. Manual lever, gear operator, pneumatic actuator, and electric actuator options are available. For more technical details on ball valve design, visit this ball valve reference on Wikipedia.
Request a Quote
Need a 4-way ball valve for your project? Contact GMK Valve today with your size, pressure rating, material, and connection standard. Our engineering team will recommend the right configuration and provide a competitive quotation within 24 hours. Visit our 4-way ball valve product page for specifications, or contact us directly.
