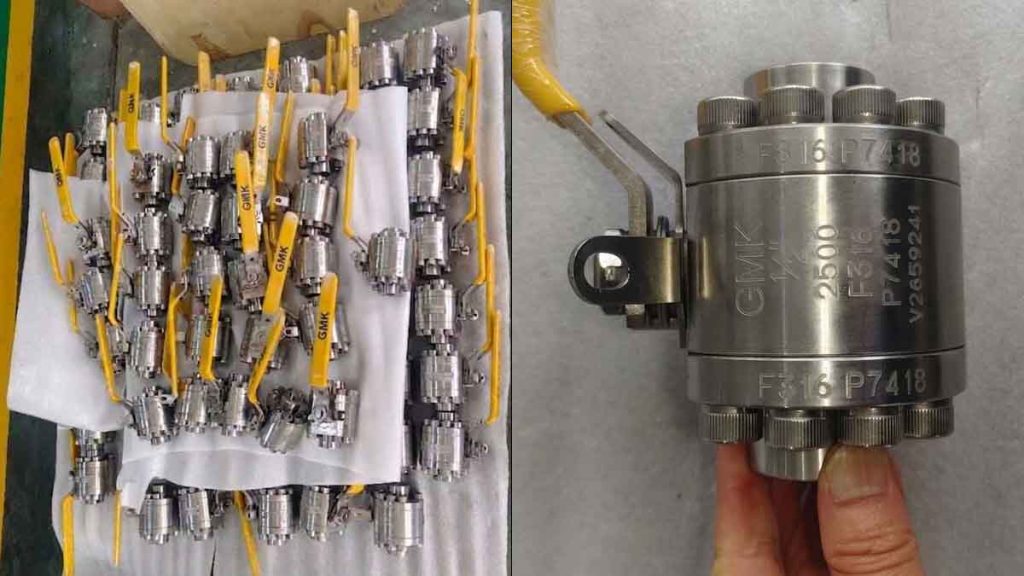

In high-stakes industrial environments, the reliability of your flow control system is non-negotiable. If you are searching for a robust solution that combines durability with precision, the GMK F316 Forged Ball Valve stands out as a premier choice.
1. The Strength of a Forged F316 Body
Unlike standard casting, a forged ball valve offers a much tighter molecular structure. This manufacturing process eliminates internal defects, making the F316 stainless steel ball valve significantly stronger under high-pressure conditions.
2. Precision Engineering: F51 Stem & Anti-Static Design
Safety is a core pillar of our design. Each valve features an anti-static stem made from F51 duplex stainless steel. F51 provides superior yield strength and enhanced resistance to pitting compared to standard 316.
3. Superior Sealing with PEEK Seats and HNBR O-Rings
The sealing capability is where the high pressure floating ball valve truly shines. PEEK Seats are chosen for their incredible mechanical strength at high temperatures, preventing deformation even under 2500lb pressure. The HNBR O-rings offer excellent heat and oil resistance.
4. Smooth Operation: F316+ENP Floating Ball
To reduce operating torque and increase wear resistance, the floating ball is crafted from F316 and treated with ENP (Electroless Nickel Plating). This allows for effortless manual operation via the lever operator.
5. Easy Integration with NPT Threaded Ends
Our NPT threaded ball valve follows strict ANSI/ASME standards, allowing for a secure, tapered seal that is easy to integrate into existing piping systems without complex welding.
Key Specifications at a Glance:
| Component | Material / Feature |
| Body | Forged F316 Stainless Steel |
| Connection | NPT Threaded (National Pipe Thread) |
| Ball | F316 + Electroless Nickel Plating (ENP) |
| Seat | High-Performance PEEK |
| Stem | F51 Duplex Steel (Anti-Static) |
| Seals | HNBR O-rings |
| Operation | Manual Lever Operator |
