Cage Type Control Valve

Description
Technical
Standard
Q&A

DESCRIPTION

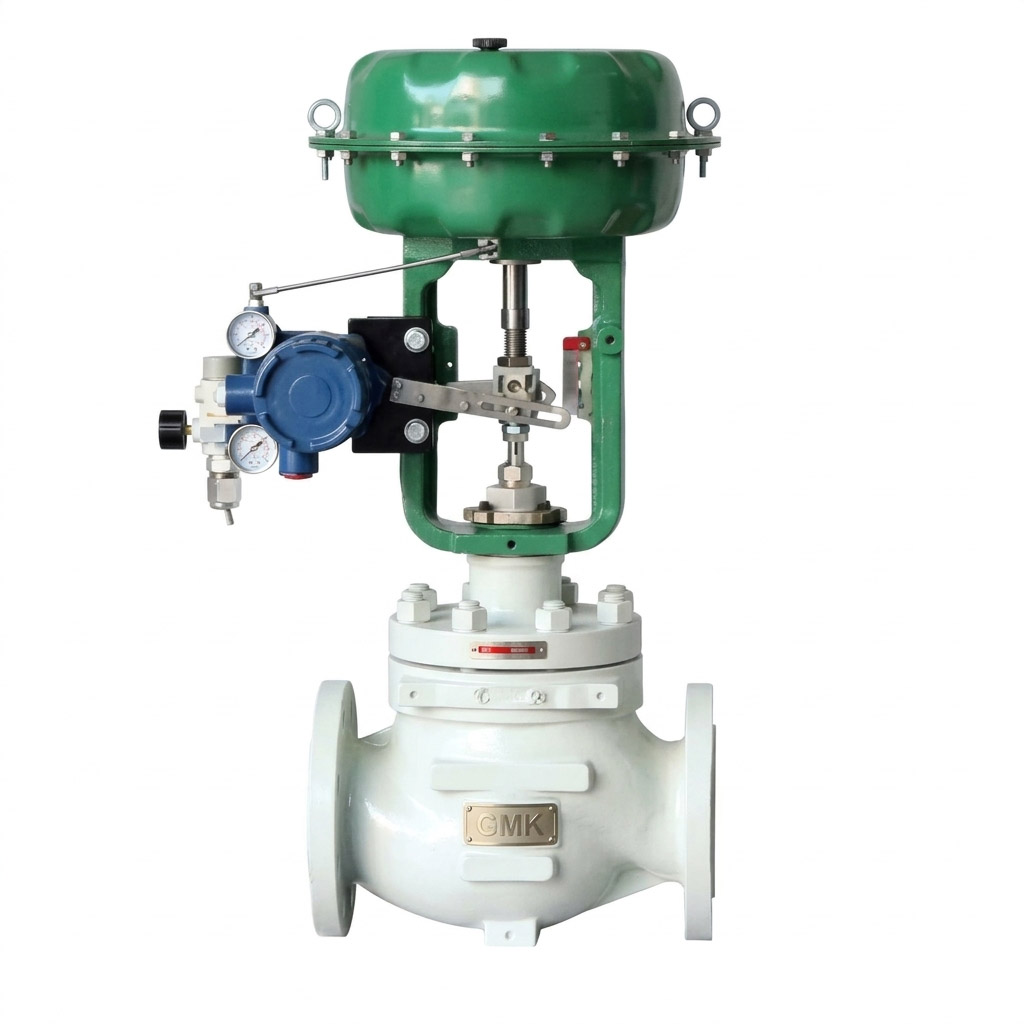

Cage Type Control Valve for High Pressure Applications

A Cage Type Control Valve is well suited to applications with a high pressure differential. The pressure-balanced plug reduces the force required for valve operation. Furthermore, the cage-guided design helps keep the plug stable during movement.

This construction also helps reduce mechanical noise during operation. In addition, the balanced sealing ring supports reliable shutoff and stable valve performance. Therefore, the valve provides precise and dependable flow control.

Durable Cage-Guided Construction

The cage provides strong guidance for the valve plug during operation. As a result, the plug moves smoothly and maintains stable positioning. This design also helps reduce mechanical vibration and operating noise.

The valve body can withstand demanding process conditions. Moreover, the construction helps protect against damage caused by steam and cavitation. This makes the valve suitable for various industrial fluid control applications.

Pneumatic Actuation Options

The Cage Type Control Valve can use either a pneumatic diaphragm actuator or a pneumatic piston actuator. Therefore, customers can select an actuator based on their control requirements and operating conditions.

Both actuator options support reliable valve operation and process control. In addition, the simple construction makes routine inspection and maintenance more convenient. This can help reduce maintenance time and support continuous plant operation.

TECHNICAL SPECS

Trim features Cage guided balanced trim structure the balanced seal ring structure

Body type Straight-through type/angle type

Bonnet type Standard type heat dissipation type cryogenic type bellows type

Flow characteristic Equal percentage linear quick open

Size DN40-400（1.5”-16”）

Pressure class PN1.6, 4.0, 6.3Mpa（ANSI 150, 300, 600LB）

Leakage class ASME B16.104 Ⅴ（standard type metal seat), ASME B16.104 Ⅵ（shut-off soft seat）

Pipe connection type Flange type butt welding type

Applicable temperature range -30C° ～ 260C°

Actuator type Pneumatic diaphragm actuator, pneumatic piston actuator

Supply ability 10000 piece/pieces per month

Port Wenzhou/shanghai

Payment terms L/C, D/A, D/P, T/T

Key Benefits of Cage Type Control Valve

The Cage Type Control Valve offers several advantages for industrial fluid control systems. Its balanced plug and cage-guided construction provide stable and reliable operation.

The main benefits include:

Stable plug movement through a durable cage guide

Reduced mechanical noise during valve operation

Reliable sealing through a balanced sealing ring

Improved resistance to steam and cavitation damage

Easy installation and a compact footprint

Flexible flow control for demanding applications

Pneumatic diaphragm and piston actuator options

Multiple material options for different process conditions

DN40 to DN400 size range

Operating temperature range from -30°C to 260°C

Applications of Cage Type Control Valve

This valve is designed for industrial fluid handling and flow regulation. It provides stable and reliable flow control for demanding industrial applications.

Furthermore, its pressure-balanced design makes it suitable for systems with high pressure differentials. Depending on the process requirements, customers can select suitable materials, sizes, and actuator configurations.

Why Choose GMK VALVE?

GMK VALVE provides reliable control valve solutions for different industrial process requirements. We offer multiple designs, materials, sizes, and actuator configurations to support specific applications.

Moreover, the cage-guided construction provides stable plug movement and reliable flow control. With flexible configuration options, the valve can be adapted to different operating conditions and fluid control systems.

If you need a reliable solution for your application, contact GMK VALVE to discuss your required size, material, pressure rating, temperature range, and actuator configuration.
