Forged Y Pattern Piston Check Valve – How Does It Work?

2023-01-31 By ren

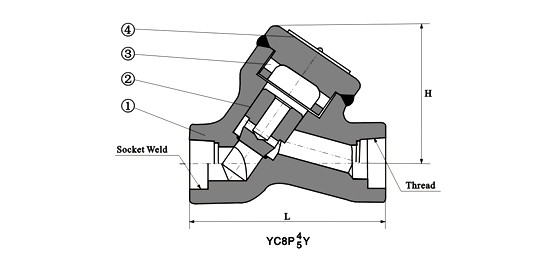

forged y pattern piston check valve

Have you ever heard of a forged Y pattern piston check valve? It’s an important piece of equipment in the industrial sector and is used to regulate the flow of liquids and gases. The valve is made up of a series of components that work together to create a tight seal, and it’s often used in applications where pressure needs to be regulated or prevented from flowing back.

In this blog post, we’ll explore the design and function of a forged Y pattern piston check valve, and why it’s such an important part of many different industries. We’ll look at the various components that make up this valve, as well as its various applications in the industry. Read on to learn more about this fascinating piece of equipment!

What is a forged Y pattern piston check valve?

A forged Y pattern piston check valve is a non-return valve that is typically used in high-pressure applications. The valve comprises a body with a Y-shaped internal passageway and a piston that moves up and down within the passageway. When the piston is in the up position, it blocks the flow of fluid through the valve; when the piston is in the down position, it allows fluid to flow through the valve.

Forged Y pattern piston check valves are often used in applications where a traditional swing check valve would not be suitable, such as in highly viscous fluids or fluids with solids content. They are also often used as emergency shut-off valves, as they can be quickly closed by actuating the piston.

How does it work?

When a Y pattern piston check valve is used, the fluid that is being transported is forced to change directions. This happens because the valve has a check that sits on top of the piston. The check limits the amount of fluid that can pass through the valve at any given time. Because of this, the pressure that is exerted on the piston from the fluid is increased. This increased pressure forces the piston to move upwards, which in turn forces the check to close.

Advantages of using a forged Y pattern piston check valve

There are many advantages to using a forged Y pattern piston check valve. One advantage is that it can provide a tight seal against backflow, preventing contaminants from entering the system. Additionally, it is durable and can withstand high pressures, making it ideal for use in industrial applications. Furthermore, it is easy to maintain and repair, and its simple design makes it relatively inexpensive.

Lastly, it has a low cracking pressure, which means that it can open and close rapidly, making it suitable for use in systems with large fluctuations in flow rates.

Where to buy a forged Y pattern piston check valve

There are a few different options for where to buy a forged Y-pattern piston check valve. One option is to purchase the valve online through a website that specializes in selling plumbing supplies. Another option is to go to a local hardware store or home improvement store and look for the valve in the plumbing section. Finally, another option is to contact a company that specializes in manufacturing valves and inquires about purchasing the valve directly from them.

It is important to note that when purchasing a forged pattern piston check valve, it is important to make sure that it meets the necessary requirements for use in your particular application. For example, if you are using the valve in an outdoor environment or a high-pressure system, then you may need to purchase a higher grade of steel or other material. Additionally, it is important to consider the size and pressure rating of the valve before making a purchase.

When to use a forged Y pattern piston check valve

There are many different types of valves available on the market, each with its own specific purpose. So, when should you use a forged pattern piston check valve?

The answer depends on the application. Forged Y-pattern piston check valves are designed for use in high-pressure systems. They can handle pressures up to 6,000 PSI and temperatures up to 1,800 degrees Fahrenheit. This makes them ideal for use in oil and gas applications.

Forged pattern piston check valves are also corrosion-resistant and have a lower risk of leakage than other types of valves. This makes them ideal for use in chemical processing applications.

If you need a valve that can handle high pressures and temperatures, is corrosion resistant, and has a low risk of leakage, then a forged Y-pattern piston check valve is the right choice for your application.

It’s important to remember that the right valve for any given application depends on a variety of factors, including pressure, temperature, and other environmental conditions. Be sure to consult with an experienced professional when selecting the right valve for your needs.


In conclusion, the forged pattern piston check valve is an essential component of many industrial systems. Its unique design allows for precise control of fluid flow and pressure while also providing excellent durability. In addition, its versatility makes it ideal for a wide range of applications. If you are looking for a reliable and cost-effective solution to your piping needs, the forged Y pattern piston check valve may be the right choice for you.
