How To Choose The Best Angle Globe Valve

2023-04-30 By ren


When it comes to managing fluid flow in industrial applications, using the right valve is crucial. Among the many types available, angle globe valves have become a popular choice due to their versatility and reliability. These valves are designed to control the flow of liquid or gas by regulating its direction and speed through an angled passageway. However, with so many options out there, choosing the best angle globe valve for your needs can be overwhelming. In this blog post, we’ll guide you on how to select the perfect angle globe valve that will meet your requirements and boost efficiency in your operations!

What is an angle globe valve?

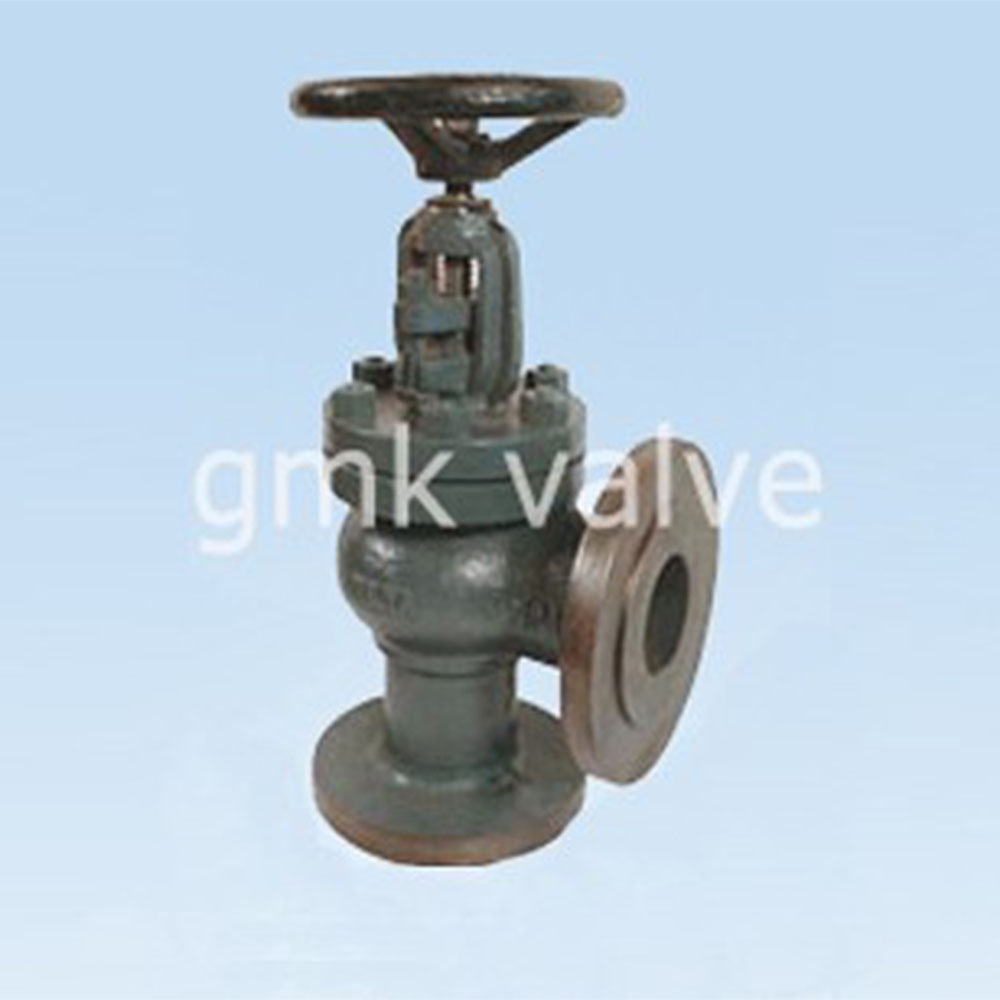

An angle globe valve is a type of control valve that regulates the flow of liquid or gas in a pipeline. It consists of an angled body with an internal baffle and a movable disk or plug, which can be raised or lowered using a stem to allow fluid to pass through. The baffle helps create turbulence and reduce pressure drop, making it ideal for applications where precise control is required.

Angle globe valves are commonly used in industries such as oil and gas, chemical processing, power generation, HVAC systems, and more. They can handle high-pressure fluids and withstand extreme temperatures while maintaining consistent flow rates.

One advantage of angle globe valves over other types is their ability to operate at different angles without affecting performance. This feature makes them suitable for installations where space is limited or when piping needs to be arranged in specific configurations.

Angle globe valves offer excellent control capabilities that allow operators to regulate the flow rate accurately while minimizing pressure fluctuations.

How does an angle globe valve work?

An angle globe valve is a type of control valve that is used to regulate the flow of fluid or gas through a pipeline. It works by using a movable disk-like element, also known as the disc or plug, which controls the amount of fluid or gas that can pass through the valve.

The disc is attached to a stem, which in turn connects to an actuator such as an electric motor or pneumatic cylinder. When the actuator receives a signal from the controller, it moves the stem and opens or closes the valve.

The angle design of this type of globe valve allows for easy installation in tight spaces where vertical clearance might be limited. The inlet and outlet are positioned at 90 degrees from each other, which makes it possible to install them in pipelines with limited headroom.

Angle globe valves are ideal for applications where precise control over flow rate and pressure drop is required. They offer high accuracy and repeatability, making them suitable for use in industries such as oil and gas, chemical processing, power generation, and water treatment plants.

Angle globe valves work by regulating the amount of fluid or gas flowing through a pipeline using a movable disk-like element controlled by an actuator. Their unique design allows them to operate effectively even when space is limited while providing precise control over flow rate and pressure drop.

What are the benefits of using an angle globe valve?

Angle globe valves are essential components of many industrial processes, providing a highly effective means of controlling the flow and pressure of fluids. There are numerous benefits associated with using angle globe valves in various applications.

One key benefit is their ability to regulate fluid flow accurately, making them ideal for use in systems where precise control is required. This makes them particularly useful in industries such as oil and gas, chemicals, and power generation.

Another advantage is that they can handle high-pressure environments effectively due to their robust design. Additionally, angle globe valves have a long service life when properly maintained, thereby reducing maintenance costs over time.

Angle globe valves also offer excellent shut-off capabilities thanks to their tapered plug design which creates a tight seal against the valve seat. This helps prevent any leakage or loss of fluid from the system.

These types of valves can be customized to meet specific application requirements such as temperature range or compatibility with certain fluids. As a result, they are highly versatile and widely used across various industries worldwide.

How to choose the best angle globe valve for your needs

When it comes to choosing the best angle globe valve for your needs, there are several factors that you should consider. The first thing you need to determine is the application for which you will be using the valve. This will help you decide on the type of material, size, and pressure rating that would work best.

Next, consider the flow rate and pressure requirements of your system as this can affect how well a particular angle globe valve performs. It’s essential to choose a valve that can handle both high and low flow rates while maintaining optimal efficiency.

Another crucial factor to consider when selecting an angle globe valve is its design features such as whether it has a straight or angled pattern stem or if it has external or internal threads. These design elements can impact how easy it is to install and maintain the valve.

Take into account any specific environmental conditions in which your system operates. For example, if your system deals with corrosive materials or operates at extreme temperatures, you’ll want to select an angle globe valve made of appropriate materials that can withstand these conditions.

By considering all these factors carefully, you’ll be able to choose an angle globe valve tailored specifically for your unique needs and ensure optimal performance within your system.


To sum it up, an angle globe valve is a useful component in many industrial applications. It can control the flow of various fluids and gases with precision, making it a reliable choice for regulating processes that require accuracy.

When choosing the best angle globe valve for your needs, consider factors such as material compatibility, pressure rating, temperature range, and application requirements. These considerations will help you select an angle globe valve that can handle the demands of your process while providing optimal performance.

Remember to consult with a trusted manufacturer or supplier to ensure that you get the right angle globe valve for your specific needs. With proper selection and installation, an angle globe valve can improve efficiency, reduce downtime and maintenance costs while ensuring safe operation.

Take time to research and choose carefully when selecting an angle globe valve for your industrial process. A well-informed decision will lead to more efficient operations in the long run.
