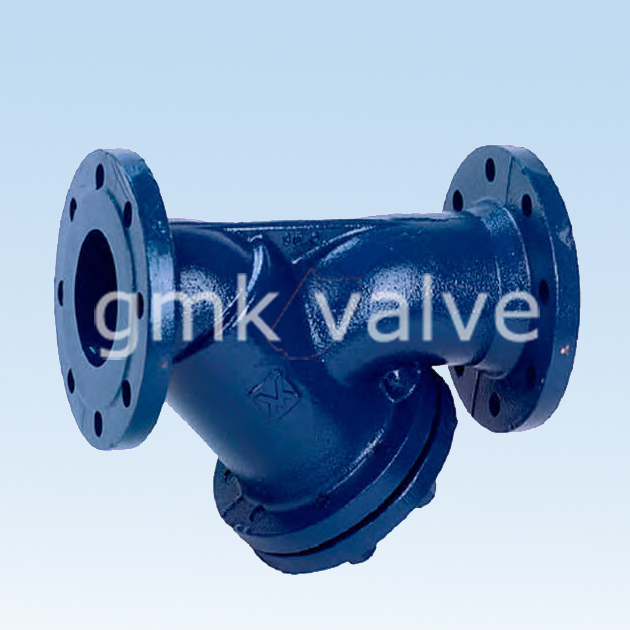

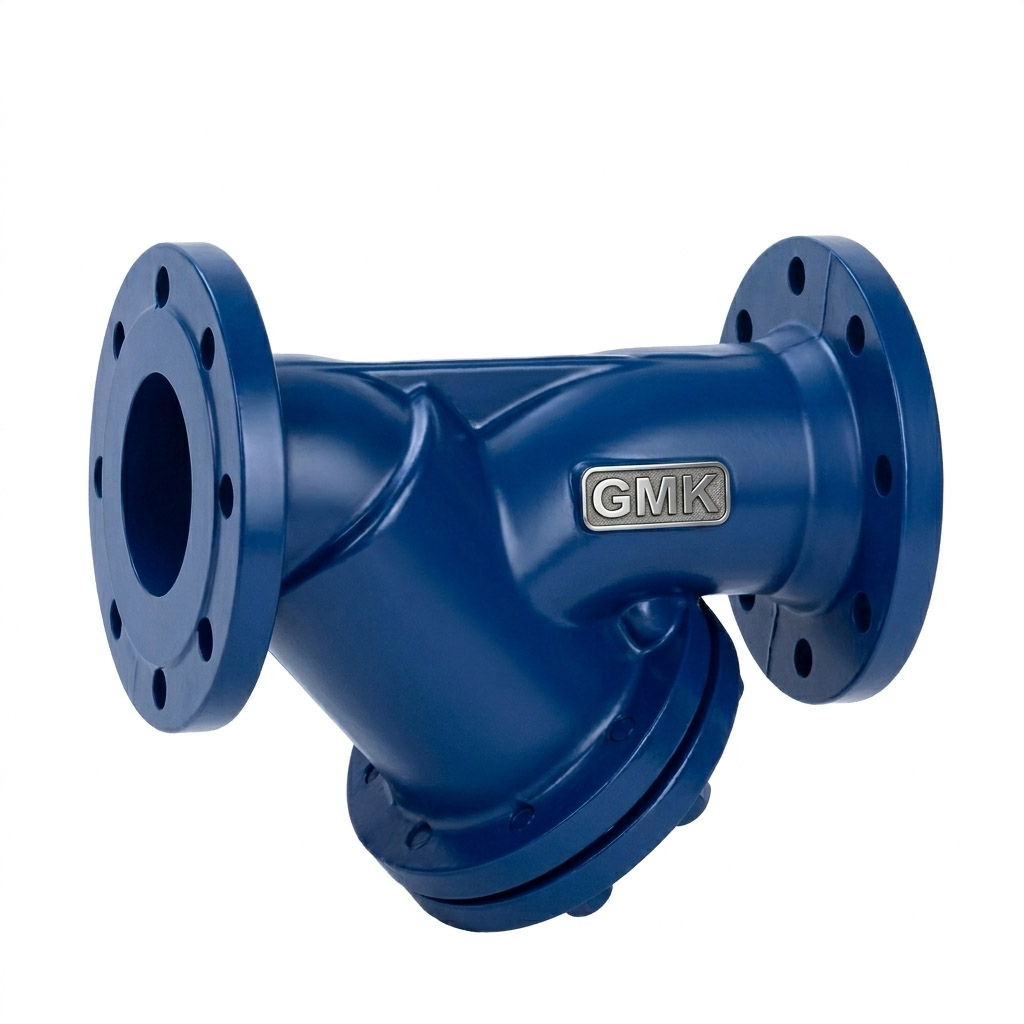

GMK Y Type Strainer

The straining element of a Y strainer is commonly formed of wire mesh, and its function is to remove debris from steam, gas, or liquid. The use of this mechanical procedure in pipelines helps to safeguard the pumps and steam traps. ‘Blow-off valves’ can simplify the cleaning process for Y strainers. The Y-type strainer’s adaptability is its most notable quality. Both a vertical and a horizontal orientation are possible for installation. While this strainer kind is already reasonably priced, further savings can be had by decreasing the size of its strainers. This cuts down on wasteful material consumption as well. There is no one standard material for Y strainers. Industry and function should inform your choice of material. In addition, any desired terminal is readily available. There is a Y strainer out there with whichever end you require, from a socket to a flange. When compared to other strainers, the possibilities for personalization with Y strainers seem unlimited. While this approach has the potential to be useful, it relies on the Y strainer being of a proper design for the task at hand.

  • Size:2 inch-40 inch
  • Pressure:150LB, 300LB
  • Material:WCB, LCB, LCC, WC6, WC9, C5, C12, C12A, CF8, CF8M, CF3, CF3M, CN7M ect
  • Connection:Flanges

CE Certification

ISO Standards

Warranty Included



The advantages of utilizing a strainer of the Y type are as follows:

  • The blow-down apertures that are integrated into the design of the fixture are directly responsible for the greater flushing that can be achieved with this particular model.
  • The return on investment is significantly better.
  • Due to the fact that they are big items, it is possible that they will be shipped out more swiftly.
  • Having a larger variety of applications and uses possible.
  • It is now possible to select from a wider variety of building materials thanks to advancements in the industry.
  • Expanded pressure range with increased fluctuation.
  • Open ratios that are substantially greater than those of T-type strainers.


  • Operating temperature: CS:-30~380C degree, SS:-80~450C degree
  • Operating pressure(Mpa): 0.6-5.0Mpa
  • Seal material: Asbestos, NBR, PTEF, Graphite+SS
  • Strainer element material: Stainless steel
  • Screen mesh from 18 to 480 eyes, also can refer to clients requestion



Size 2 inch-40 inch
Pressure 150LB, 300LB
Material WCB, LCB, LCC, WC6, WC9, C5, C12, C12A, CF8, CF8M, CF3, CF3M, CN7M ect
Connection Flanges
Supply ability 10000 piece/pieces per month
Port Wenzhou/shanghai
Payment terms L/C, D/A, D/P, T/T
Delivery time 7-10 Working day
  • Design and manufacture: ANSIB16.34
  • Pressure-temperature rating: ASME B16.34
  • Face to face(end to end): ANSIB16.10
  • End connection: 2″-24″ ASME B16.5; 26″ -42″ ASME B16.47; B.W end ASME B16.25
  • Test and inspection: API598
Can we order goods from you directly?
Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. If you require smaller quantities we will be happy to arrange an individual delivery. We would be delighted to assist you.
Can I get a discount?
This depends on the specific situation, you can call directly to consult.
