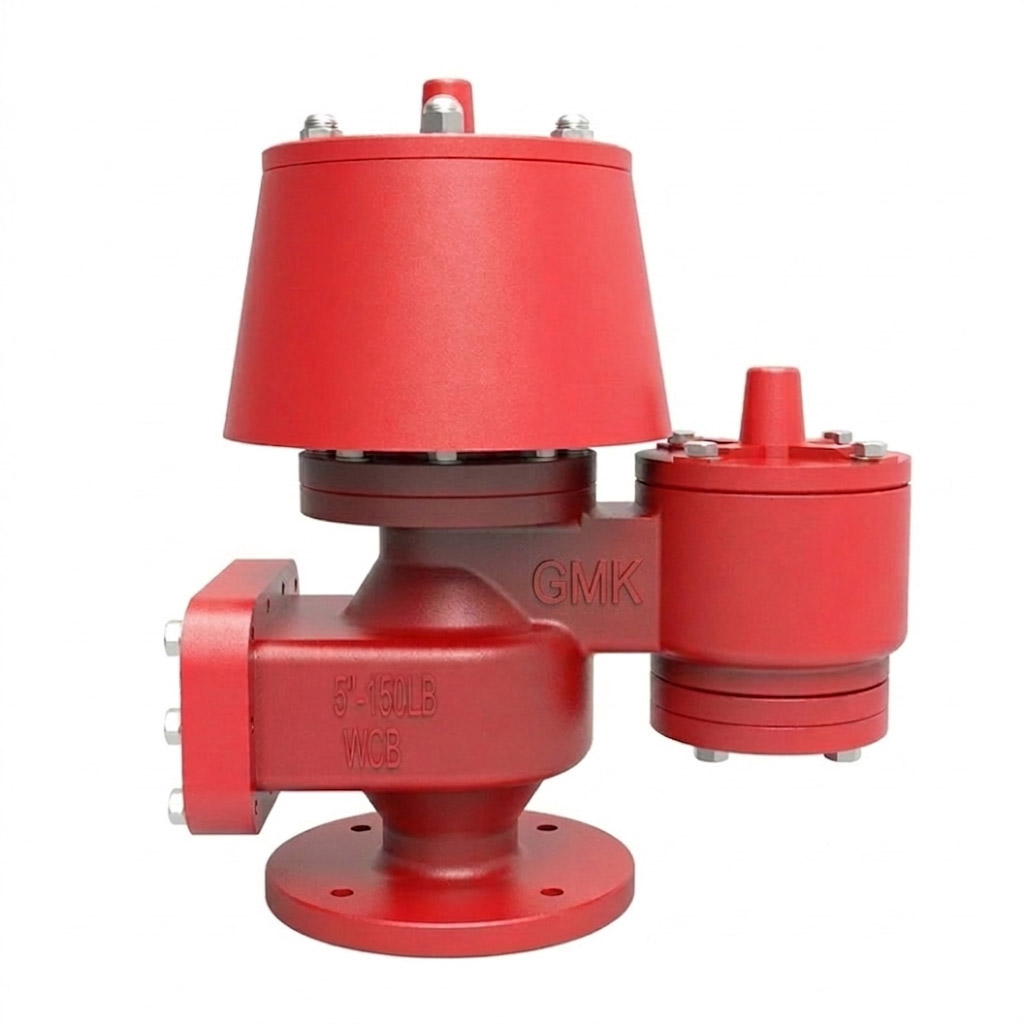

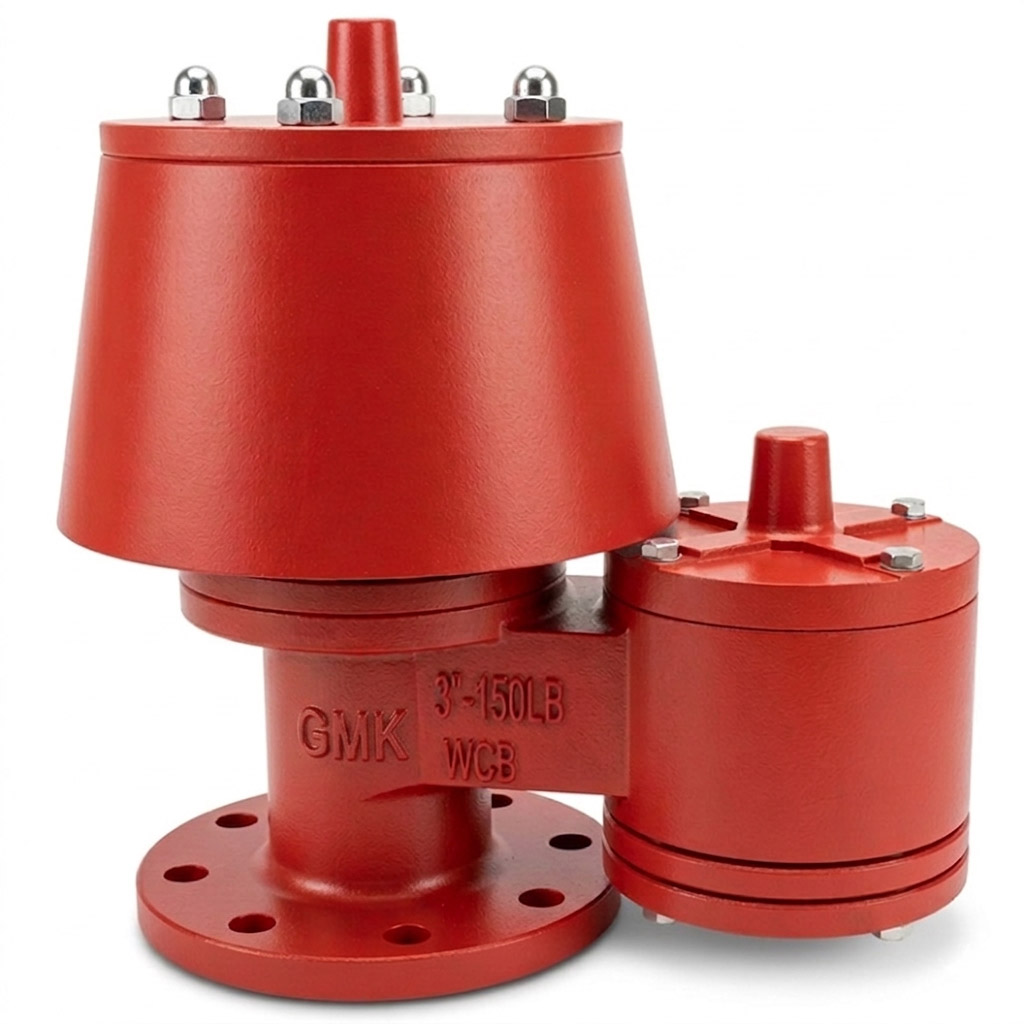

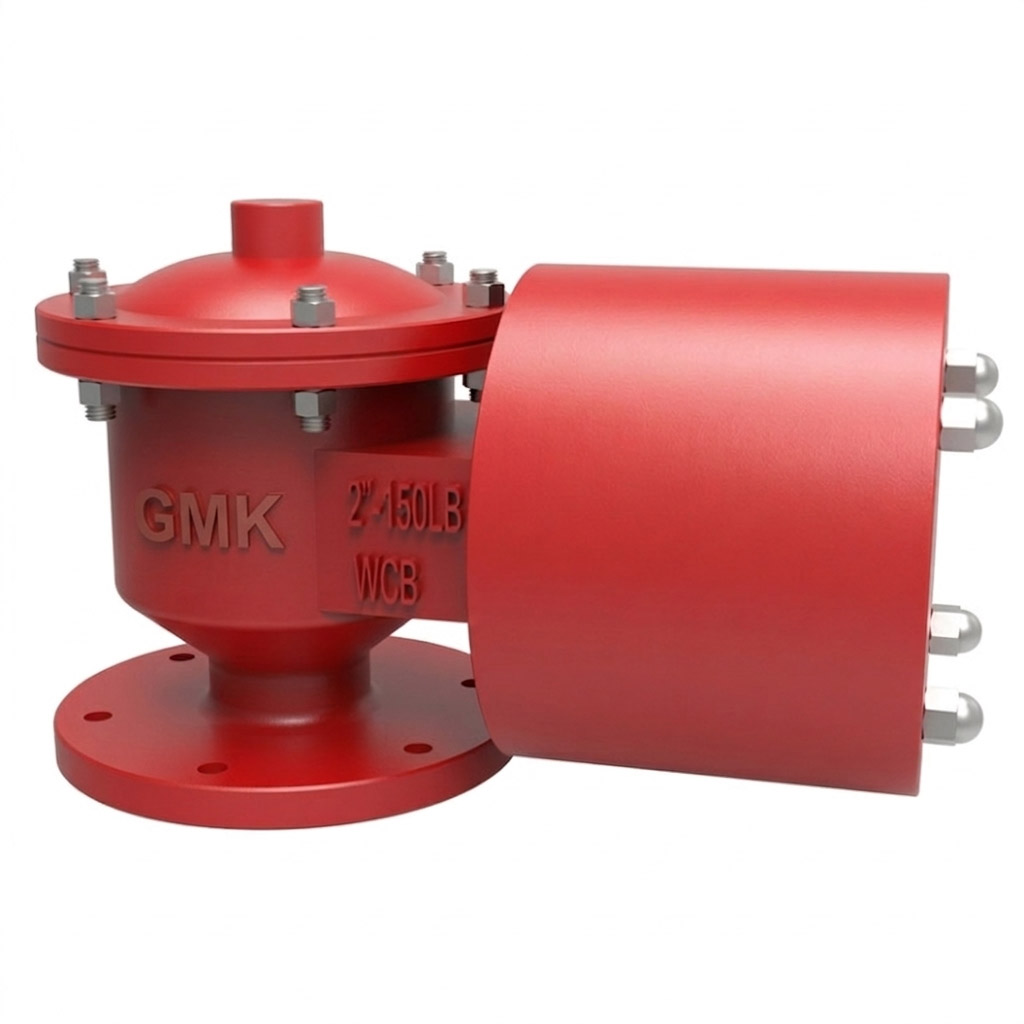

Breather Valve With Flame Arrester

ZCPE-pilot operated  breather valve with flame arrester is a bit different with breather valve ,first let the seat leakage closer to set point ,second  full flow without overpresure ,to  maintain the tank pressure balance, reduce safety energy-saving products medium volatile, but also the use of principles of vapor heat transfer, protect the respiratory valve parts is not easy to freeze, the breathing valve to ensure the normal work, equipped with fire retardant explosion-proof function.

Fire breathing valve produced by our company has simplified structure, ventilation volume, less leakage, corrosion resistance, insulationetc.. The valve adopts polytetrafluoroethylene material, has the advantages of low temperature resistant, anti frost. The electrostaticprotection device is provided with a respiratory valve, the valve and the tank to keep the same potential moment.



Under normal circumstances, (fire) breathing valve operating pressure to B shall prevail;

Applicable materials: gasoline, kerosene, diesel, aromatics, sulfur, air and other petrochemical materials;

Environment temperature: -40 °C -+60 °C;

Shell material: HT, AL, A3, 18-8, 304, 304L, 316, 316L.

Flange standards: HG20592-97 PN1.0 (also can be produced according to user specified criteria)

PTFE lined butterfly valve
left
right
PTFE lined butterfly valve

CE Certification

ISO Standards

Warranty Included

Operating pressure:

Type A: +355pa(+36mmH2O) -295pa(-30mmH2O)
Type B: +980pa(+100mmH2O)-295pa(-30mmH2O)
Type C:  +1950pa(+200mmH2O) -295pa(-30mmH2O)
Type D: according to user requirement (special pressure rating)
Material: WCB SS304 SS304L SS316 SS316L
Flange Standard: HG/T20592-2009   ANSI B16.5

HG/T 20615-2009(Class series)

HG/T20592-2009 (PN series)

ANSI B16.5

AMSE B16.5

Summarize

Breathing valve is a pressure balance, reduce the maintenance tank safety energy-saving products medium volatile, widely used in petrochemical storage and transportation equipment industry. Breathing valve of traditional structural design is simple, because no set quick opening device, cleaning and maintenance is not convenient; because of long time service in low temperature environment, the valve port is very easy to freeze, and breathing between the valve and the tank is easy to produce the potential due to the poor.

The content of the invention

Aiming at the existing disadvantages of respiration valve, the utility model provides a quick opening valve model.
In order to achieve the above purpose, the utility model measures:
A fast open type respiratory valve, including valve, valve body close to the inlet end is provided with a pressure valve, pressure valve seat is provided with a pressure valve disc, the valve body is arranged on the top of the vacuum valve, vacuum valve seat is provided with a vacuum valve, vacuum valve disc is matched with the groove at the top of the column and the top of the body, top of the valve body is provided with a side hinged plate set the U shaped groove on the pressure plate, the outer end of the connection and locking device, pressure valve plate and the vacuum valve disc are provided with elastic ground.
The locking device is connected by a hinge pin screw and nut and manual.
The valve body material is stainless steel 304.
Vacuum pressure valve seat and valve seat material is polytetrafluoroethylene.
Pressure valve disc material for the composite structure of 304 stainless steel with ptfe.
Vacuum valve disc material for the composite structure of aluminium and teflon.
Elastic ground for copper wire.

The utility model has the advantages of: manual fast open, easy to maintain and repair, low temperature resistance, antistatic, long service life.
