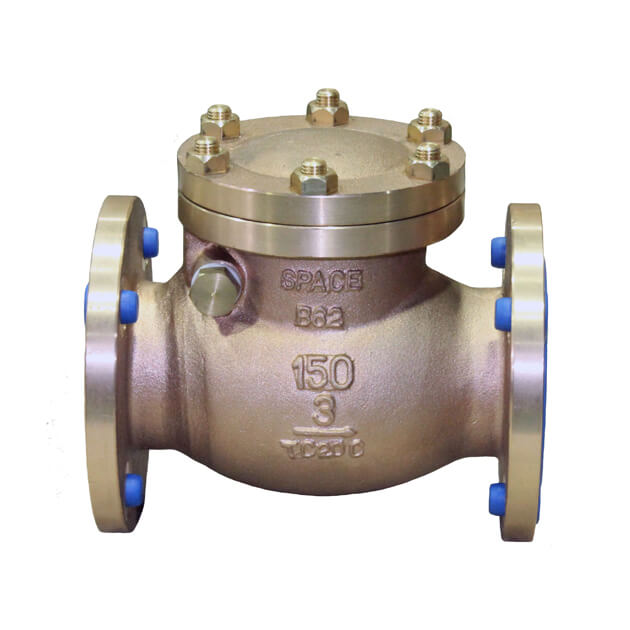

GMK Bronze Swing Check Valve

Product Overview of Bronze Swing Check Valve

The Bronze Swing Check Valve is designed to allow forward flow while preventing reverse flow in pipeline systems. It provides reliable one-way flow control and helps protect pumps, compressors, and other equipment from backflow damage.

This valve uses a swing disc mechanism consisting of a disc, seat, and hinge. When the upstream fluid pressure reaches the required opening pressure, the disc swings open to allow smooth forward flow. When the flow stops or reverses, the disc returns to the seat and prevents backflow.

The swing design provides efficient operation with high flow capacity and low pressure loss. Different disc and seat configurations are available to meet various process media requirements and application conditions.

Proper valve sizing is important to ensure reliable performance. The minimum pressure required to open the valve is known as cracking pressure, which varies depending on valve size and operating conditions.

  • Size:1 1/2”-20”
  • Rating:150LB-300LB
  • Material:ASME B148 C95800, ASTM B148 C95500, ASTM B148 C95400, ASTM B62, ASTM B61, ASTM B148 C83600, ASTMB150 C63200, DIN1705 RG10(CuSn10Zn2) ect
icon_quote Get A Quote
Bronze Swing Check Valve for Industrial Pipeline Backflow Prevention
left
right
Bronze Swing Check Valve for Industrial Pipeline Backflow Prevention

CE Certification

ISO Standards

Warranty Included

DESCRIPTION

Reliable Swing Check Valve Design for Backflow Prevention</h2>

The Swing Check Valve</strong> features a simple and durable design that provides automatic flow control without external operation.

During normal operation:

Fluid pressure opens the disc automatically
The disc allows forward flow through the pipeline
The disc closes when flow stops
Reverse flow is prevented effectively

This automatic operation makes the valve a reliable solution for industrial piping systems requiring safe and efficient flow control.

TECHNICAL SPECS
Size 1 1/2”-20”
Rating 150LB-300LB
Material ASME B148 C95800, ASTM B148 C95500, ASTM B148 C95400, ASTM B62, ASTM B61, ASTM B148 C83600, ASTMB150 C63200, DIN1705 RG10(CuSn10Zn2) ect
Supply ability 10000 piece/pieces per month
Port Wenzhou/shanghai
Payment terms L/C, D/A, D/P, T/T
Delivery time 7-10 Working day

Key Benefits of Bronze Swing Check Valve

art=”1883″ data-end=”1971″>The Bronze Swing Check Valve provides several advantages in industrial applications.

Effective Backflow Prevention

The valve prevents reverse flow that may damage pumps, compressors, and other critical equipment.

Key advantages include:

Protects downstream equipment
Reduces system failures
Minimizes production downtime
Improves pipeline reliability

High Flow Capacity

The swing disc design provides a large flow passage, allowing efficient fluid transportation with minimal pressure drop.

Benefits include:

Lower energy consumption
Improved system efficiency
Reduced operating costs

Cost-Effective Operation

The simple structure of this valve provides reliable performance while reducing installation and maintenance costs.

Its durable construction makes it suitable for a wide range of industrial projects.

Flexible Installation Options

The valve can be installed in horizontal or vertical pipeline configurations depending on system requirements.

Various end connection options are available, including flanged and butt weld connections.

Main Features of Bronze Swing Check Valve</h2>

The valve includes the following features:

Bronze valve body

construction
Swing type disc design
Automatic backflow prevention
Anti-rotation disc structure
Renewable seat rings
Non-penetrating disc shaft design
Horizontal or vertical installation
Flanged or butt weld end connections
High flow capacity
Low pressure drop
Easy maintenance

Applications of Bronze Swing Check Valve

The Bronze Swing Check Valve is widely used in applications requiring reliable one-way flow control, including:

Water supply systems
Industrial piping systems
Pump protection systems
HVAC systems
Marine applications
Process pipelines
General fluid control systems

Its reliable sealing performance and automatic operation make it an effective Backflow Prevention Valve solution for industrial and commercial applications.

Technical Standards and Specifications

Design Standard

ASME B16.34
API 602

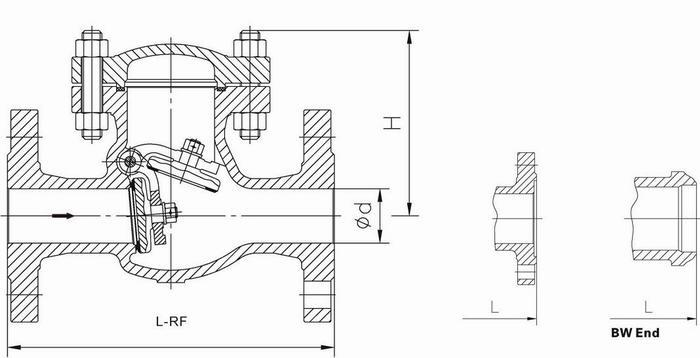

Face-to-Face Dimension

ASME B16.10

Flange Standard

ASME B16.5

Testing Standard

API 598

&amp;amp;amp;amp;amp;amp;amp;quot;&amp;quot;bron</p/&gt;</p>

Standard

Why Choose Our Bronze Swing Check Valve?

tart=”4153″ data-end=”4342″>This valve combines durable bronze construction, reliable sealing performance, and efficient flow control to provide a dependable solution for preventing reverse flow.

With high flow capacity, low pressure drop, and easy maintenance, this valve is an ideal choice for industrial piping systems requiring safe and reliable fluid management.

Q&A
Can we order goods from you directly?
Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. If you require smaller quantities we will be happy to arrange an individual delivery. We would be delighted to assist you.
Can I get a discount?
This depends on the specific situation, you can call directly to consult.
