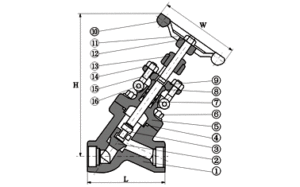

Forged Steel Y Pattern Globe Valve

GMK globe valves are widely used all over the world. A GMK-forged steel Y-pattern globe valve is a form of globe valve that may be used to control fluid flow as well as open and shut liquid passageways. These GMK valves also go by the name oblique pattern globe valves when they have an oblique pattern. The seat and stem of a Y pattern globe valve are angled at 45 degrees concerning the longitudinal axis of the pipeline, according to the construction of the valve.  We advise you to use these valves in high-pressure situations when pressure loss is not preferable. Pressure loss is common in other forms of globe valves, such as Z-pattern globe valves.


CE Certification

ISO Standards

Warranty Included


GMK globe valves with a Y design alleviate this pressure loss issue and may be installed anywhere in a pipeline. Due to their low fluid barrier, these valves have minimal pressure loss. When completely open, the GMK Y-shaped stem and seat of a globe valve provide a direct flowing route, allowing for less opposition to flow. GMK Globe valves with a Y pattern may have either a soft seat or a steel seat. The steel chairs are employed when the temperature rises over 60 degrees, while the softer ones are utilized when the temp decreases below 60 ° c.


  • The excursion of these valves is rather small.
  • Compared to a gate valve, GMK-forged steel Y-pattern valves can be opened and closed quickly.
  • Unless there’s a technical breakdown, they won’t spill the liquid.
  • In a variety of commercial settings, forged steel Y-pattern globe valves demonstrate their adaptability.
  • GMK valves last a long time also they may be fixed and used again.


  • Product name: Forged Steel Y Pattern Globe Valve
  • Size:1/2″-2′
  • Pressure:800LB
  • Material: A105,LF2,F11,F22,F304,F304L,F316,
    F316L etc
  • Connection: NPT thread, Socket weld


Supply Ability 10000 Piece/Pieces per Month
Port Wenzhou/shanghai
Payment Terms L/C,D/A,D/P,T/T
  • Design and Manufacture: API602,ANSI B16.34
  • Face to face(end to end): Manufacture standard
  • NPT End Connection: ANSI B1.20.1
  • SW End Connection: ANSI B16.11
  • Test and inspection:API598
Can we order goods from you directly?
Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. If you require smaller quantities we will be happy to arrange an individual delivery. We would be delighted to assist you.
Can I get a discount?
This depends on the specific situation, you can call directly to consult.
