DESCRIPTION

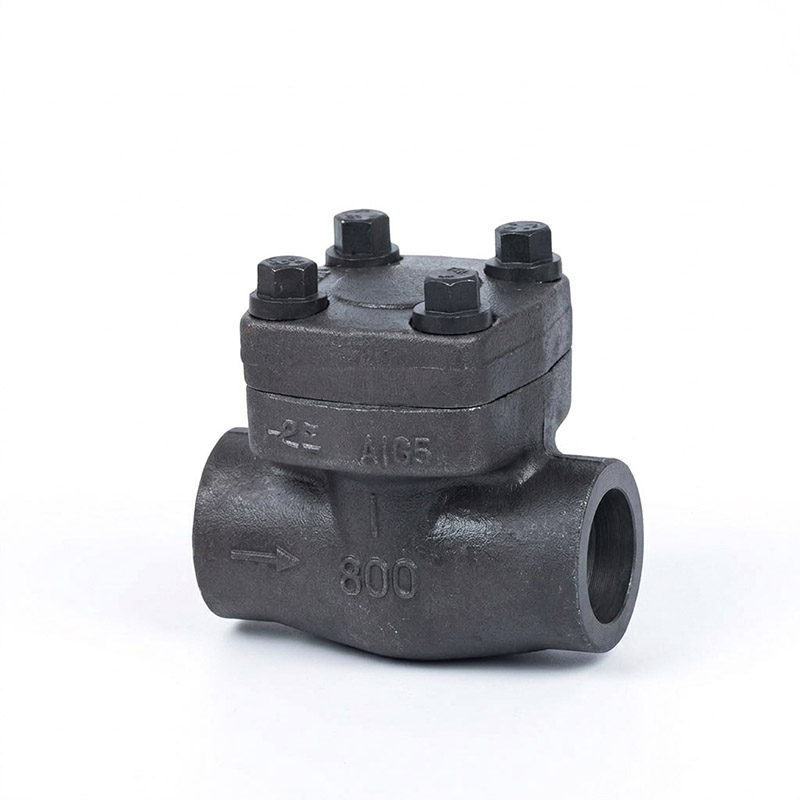

Reliable Forged Steel Piston Check Valve Design

A Forged Steel Piston Check Valve uses a piston mechanism that automatically responds to changes in pipeline pressure. When the medium flows in the correct direction, the valve opens smoothly. However, when reverse flow occurs, the piston moves back to the seat and prevents backflow.

The forging manufacturing process improves the internal structure of the valve body. As a result, the valve can withstand high pressure, temperature changes, and demanding industrial environments.

Moreover, the compact design reduces turbulence and improves flow efficiency. Therefore, this type of check valve is widely selected for applications where reliability and long service life are required.

TECHNICAL SPECS

Size 3/8″-2″

Pressure 800LB,900-1500LB

Material A105,LF2,F11,F22,F304,F304L,F316, F316L F904L Allay20 ect

Connection NPT thread,Socket weld

Supply Ability 10000 Piece/Pieces per Month

Port Wenzhou/shanghai

Payment Terms L/C,D/A,D/P,T/T

Advantages of Forged Piston Check Valve

The forged body structure provides excellent strength because it is produced from high-quality metal materials through controlled forging processes. Unlike cast valves, forged valves have better resistance to impact, pressure stress, and mechanical wear.

In addition, the piston design offers stable operation with minimal maintenance requirements. This feature helps reduce downtime and improves the overall efficiency of industrial pipeline systems.

Furthermore, forged valves have a dense metal structure with fewer internal defects. Therefore, they are suitable for demanding industries such as oil and gas, chemical processing, power generation, and energy projects.

Applications of Piston Check Valve

GMK VALVE’s piston check valves are designed for industrial systems that require dependable one-way flow control. They are commonly used in pipelines where preventing reverse flow is essential for equipment protection.

These valves are suitable for high-pressure applications, including steam systems, oil and gas pipelines, chemical plants, and power facilities. Moreover, their reliable sealing performance makes them an ideal choice for critical service conditions.

As a professional valve manufacturer, GMK VALVE focuses on delivering durable valve solutions that meet international standards and customer requirements.

Product Features

Product Name: Forged Steel Piston Check Valve

Size Range: 3/8″ – 2″

Pressure Rating: 800LB, 900LB – 1500LB

Material Options: A105, LF2, F11, F22, F304, F304L, F316, F316L, etc.

Connection Types: NPT Thread, Socket Weld

Design and Manufacture: API 602, ANSI B16.34

NPT End Connection: ANSI B1.20.1

Socket Weld End Connection: ANSI B16.11

Testing Standard: API 598

Standard

Why Choose GMK VALVE

GMK VALVE specializes in manufacturing industrial valves with advanced production technology and strict quality control systems. Our products are developed to provide reliable performance in various industrial applications worldwide.

Moreover, we continuously improve valve design and manufacturing processes to achieve better safety, durability, and operational efficiency. Contact GMK VALVE today for customized valve solutions and professional technical support.

Q&A

Can we order goods from you directly?

Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. If you require smaller quantities we will be happy to arrange an individual delivery. We would be delighted to assist you.

Can I get a discount?

This depends on the specific situation, you can call directly to consult.

Inquire with us directly
