DESCRIPTION

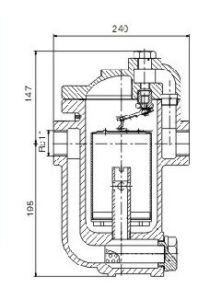

How Does an Inverted Bucket Steam Trap Work?

An Inverted Bucket Steam Trap separates condensate from steam through changes in bucket buoyancy. The bucket rises when steam enters and falls when condensate fills the trap.

This movement operates the valve through a mechanical lever system. Therefore, the trap automatically responds to changing steam and condensate conditions.

A vent hole in the bucket helps discharge air and non-condensable gases. Moreover, continuous venting supports efficient steam system operation and improves condensate removal.

The simple mechanical design contains only a few moving components. As a result, it reduces the risk of sticking, binding, and mechanical blockage.

Reliable Inverted Bucket Steam Trap Design

GMK VALVE Inverted Bucket Steam Trap features an open-bottom bucket design for reliable operation. This construction helps the trap withstand water hammer and demanding steam conditions.

Moreover, critical wear areas receive reinforced construction to support long service life. The robust design allows the trap to operate reliably under repeated cycling.

The simple mechanism also makes inspection and maintenance more convenient. Therefore, users can maintain reliable steam system performance with practical servicing requirements.

TECHNICAL SPECS

Size DN15- 100

Rating 1.6- 4.0Mpa

Material WCB,CF8,CF8M

Supply Ability 10000 Piece/Pieces per Month

Port Wenzhou/shanghai

Payment Terms L/C,D/A,D/P,T/T

Key Benefits of the Inverted Bucket Steam Trap

The Inverted Bucket Steam Trap provides several advantages for industrial steam systems. Its mechanical operation offers reliable condensate discharge without complex control components.

Water Hammer Resistance

The open bucket design helps improve resistance to water hammer conditions. Therefore, the trap can provide reliable operation in demanding steam applications.

Durable Mechanical Design

The reinforced wear areas help extend service life during repeated operation. Moreover, the simple mechanism reduces the number of components that require movement.

Reliable Condensate Removal

The trap automatically responds to changes between steam and condensate. As a result, it provides continuous condensate discharge while helping reduce steam loss.

Air and Gas Venting

The vent hole helps remove air and non-condensable gases from the system. Furthermore, effective air removal supports faster steam system startup and stable operation.

Superheated Steam Applications

The trap can be used on superheated steam lines when a suitable check valve is installed at the inlet. Therefore, it can support demanding steam applications with proper system design.

Open Failure Mode

The open failure mode can be beneficial for applications that require reliable condensate drainage. For example, turbine drain systems may benefit from this operating characteristic.

Inverted Bucket Steam Trap Applications

GMK VALVE Inverted Bucket Steam Trap is suitable for various industrial steam applications. Its mechanical design provides reliable condensate removal in demanding operating environments.

Typical applications include:

Steam distribution systems

Process steam equipment

Heat exchangers

Steam pipelines

Power plant systems

Turbine drain systems

Industrial heating systems

Steam condensate systems

Moreover, the trap can support applications where reliable condensate drainage and air removal are important. Therefore, it provides a practical solution for industrial steam management.

Why Choose GMK VALVE?

GMK VALVE provides reliable steam system and industrial flow control solutions for demanding applications. Our products focus on durable construction, stable performance, and practical maintenance.

Furthermore, our steam traps are designed to provide dependable condensate management under demanding operating conditions. The simple mechanical structure also supports reliable operation over extended service periods.

GMK VALVE focuses on consistent product quality and practical engineering solutions. As a result, customers can select suitable steam trap products for different industrial applications.

Select the Right Steam Trap

Selecting the right steam trap requires consideration of steam pressure, temperature, condensate load, and installation conditions. Therefore, users should evaluate the complete steam system before selecting a trap.

GMK VALVE provides reliable solutions for industrial condensate management and steam system protection. With a durable mechanical design and dependable operation, the Inverted Bucket Steam Trap is suitable for many demanding applications.

Q&A

Can we order goods from you directly?

Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. If you require smaller quantities we will be happy to arrange an individual delivery. We would be delighted to assist you.

Can I get a discount?

This depends on the specific situation, you can call directly to consult.
