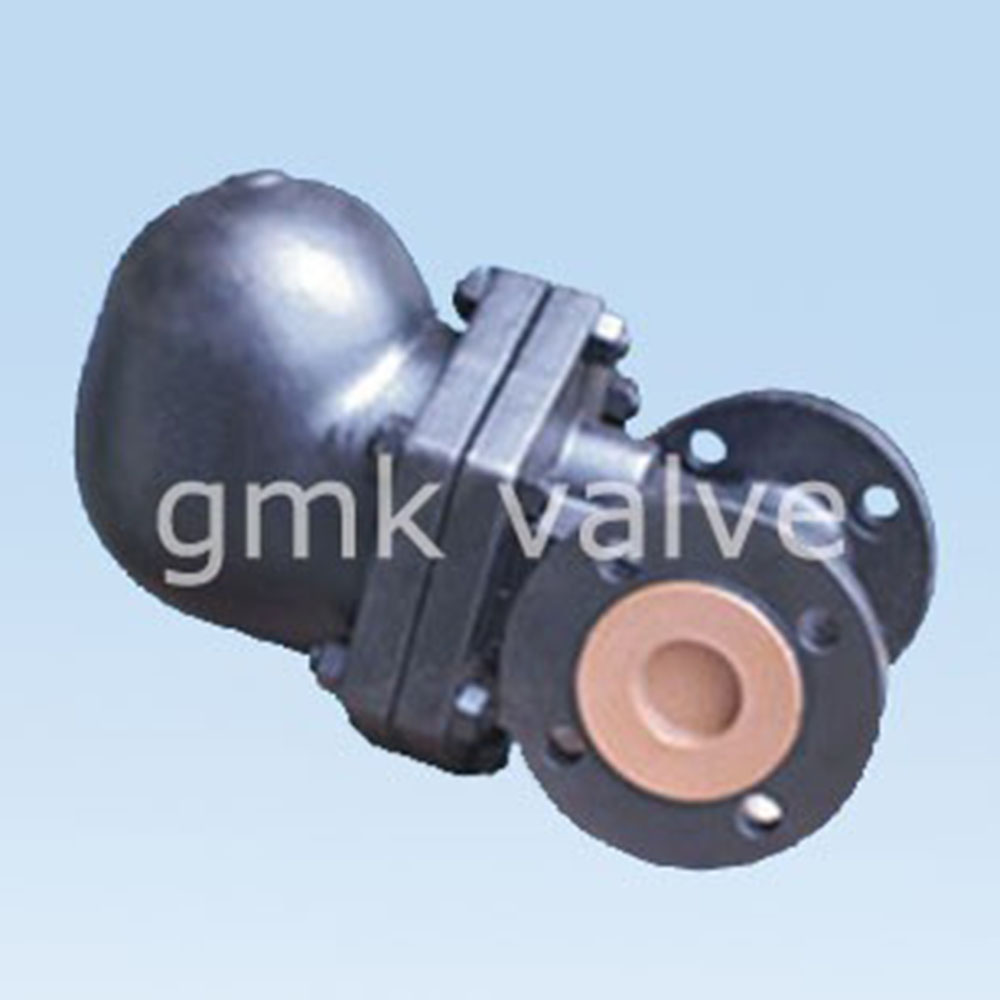

Lever Ball Float Steam Trap

Description
Technical
Application
Q&A

DESCRIPTION

How Does a Lever Ball Float Steam Trap Work?

A Lever Ball Float Steam Trap uses a float ball and lever mechanism to control condensate discharge. When condensate enters the trap, the liquid level rises and lifts the float.

The rising float moves the lever and opens the valve. As a result, accumulated condensate can discharge from the trap without unnecessary delay.

When the condensate level falls, the float moves downward. Therefore, the lever allows the valve to close and helps prevent excessive steam loss.

The mechanical design responds continuously to changing condensate conditions. In addition, it can handle both light and heavy condensate loads.

Reliable Ball Float Steam Trap Performance

GMK VALVE uses a robust mechanical design to support dependable steam system operation. The internal components are made from durable materials for demanding industrial environments.

Moreover, stainless steel components provide good resistance to corrosive condensate. This construction helps maintain reliable performance during long-term service.

The trap can also respond to rapid changes in pressure and flow conditions. Therefore, it is suitable for steam systems with changing operating loads.

TECHNICAL SPECS

Size DN15 – 100

Pressure 1.6- 4.0Mpa

Material WCB,CF8,CF8M

Body Material WCB

Connection Flange,Internal Thread

Temperature <=350℃

Supply Ability 10000 Piece/Pieces per Month

Port Wenzhou/shanghai

Payment Terms L/C,D/A,D/P,T/T

Key Benefits of the Lever Ball Float Steam Trap

The Lever Ball Float Steam Trap provides several benefits for industrial steam and condensate systems. Its mechanical operation supports efficient condensate removal and stable steam system performance.

Immediate Condensate Discharge

The float mechanism responds quickly when condensate enters the trap. Therefore, it can discharge accumulated condensate and help prevent unwanted backup.

Reduced Steam Loss

The valve closes as the condensate level decreases and the float moves downward. As a result, the trap helps reduce unnecessary live steam loss during normal operation.

Reliable Operation Under Changing Loads

The mechanical mechanism can handle both heavy and light condensate loads. Moreover, it can continue operating during significant changes in pressure and flow.

Corrosion-Resistant Components

The internal components use stainless steel materials for improved resistance to corrosive condensate. Therefore, the design supports reliable operation in demanding steam applications.

Integrated Air Vent

The integrated air vent helps remove air from the steam system during startup. In addition, effective air removal supports faster system warm-up and improved heat transfer.

Durable Construction

The robust construction helps the trap withstand vibration and water hammer conditions. As a result, it can provide dependable performance during long-term industrial service.

Lever Ball Float Steam Trap Applications

GMK VALVE Lever Ball Float Steam Trap is suitable for various industrial steam applications. Its reliable condensate removal helps maintain efficient operation across different steam systems.

Typical applications include:

Steam distribution systems

Process heating equipment

Heat exchangers

Steam pipelines

Industrial heating systems

Power plant equipment

Steam condensate systems

Process steam applications

Moreover, the trap can support systems where efficient condensate removal is essential. Therefore, it provides a practical solution for maintaining reliable steam system performance.

Why Choose GMK VALVE?

GMK VALVE provides industrial steam and flow control solutions for demanding applications. Our products focus on reliable operation, durable construction, and practical maintenance.

Furthermore, our mechanical steam traps are designed to provide consistent condensate management during continuous operation. The robust internal components also support long-term service in challenging environments.

GMK VALVE understands the importance of reliable condensate removal for industrial steam systems. As a result, we provide practical solutions that help customers maintain efficient and stable plant operation.

Selecting the Right Steam Trap

Selecting the right steam trap requires consideration of steam pressure, temperature, condensate load, and installation conditions. Therefore, users should evaluate their operating requirements before selecting a suitable model.

GMK VALVE provides reliable steam trap solutions for different industrial applications. With a durable float mechanism, integrated air vent, and corrosion-resistant components, the product supports efficient condensate management.
