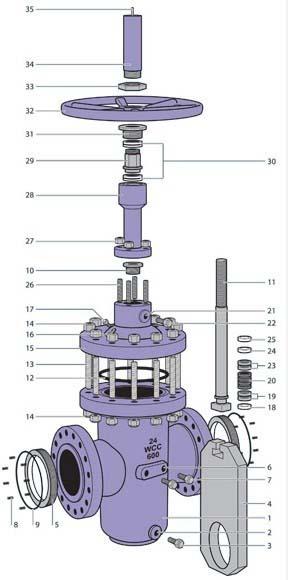

GMK Parallel Plate Gate Valve

Gate valves that operate with plates that are parallel to one another are offered here at GMK. Parallel gate valves are a type of slide valve that features a gate-like closure component that has faces that are parallel to one another. This closing section can be a single disc, or it might be two discs with a spreading mechanism in the middle of the space between them. The amount of force required to press the two components together is determined by the fluid pressure that is applied on either the disc or the seat. When working with twin-disc parallel gate valves, an additional mechanical force that originates from a spreading mechanism located in between the discs can supplement this force.

  • Size:2″-40″
  • Pressure:150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB
  • Material:WCB, LCB, LCC, WC6, WC9, C5, C12, C12A, CF8, CF8M, CF3, CF3M, CN7M, Alloy 20, B148, UB6, Hastelloy C etc
  • Connection:RF flange, RTJ flange, butt weld, hub end, groove
  • Operate:Handwheel, wormgear, gearbox, pneumatic actuator

CE Certification

ISO Standards

Warranty Included



An obvious advantage is that full-bore parallel gate valves have a low flow resistance that is comparable to that of a relatively short stretch of straight pipe. This is a significant advantage.

  • Due to the fact that the disc glides across the seat face, parallel gate valves are able to control the flow of fluids that contain suspended particles. This form of valve operation also imposes certain limitations on the use of parallel gate valves, including the following:
  • Leaks can occur in metal-to-metal seating if the fluid pressure is not high enough to provide a sufficient amount of seating force.
  • It is possible that frequent valve operation will cause excessive wear of the seating faces. The severity of the fluid pressure, the breadth of the seating faces, the lubricity of the fluid to be sealed, and the wear resistance of the seating material are all factors that contribute to this possibility. Because of this, parallel gate valves are the go-to choice for unusual applications.


  • OS&Y outside screw and yoke
  • Slab gate, conduit
  • Rising stem
  • Fire-safe design
  • Block and bleed feature
  • Anti-dusty design with position indicator
  • Parallel and solid wedge two structures with or without conduit


Size 2″-40″
Pressure 150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB
Material WCB, LCB, LCC, WC6, WC9, C5, C12, C12A, CF8, CF8M, CF3, CF3M, CN7M, Alloy 20, B148, UB6, Hastelloy C etc
Connection RF flange, RTJ flange, butt weld, hub end, groove
Operate Handwheel, wormgear, gearbox, pneumatic actuator
Supply ability 10000 piece/pieces per month
Port Wenzhou/shanghai
Payment terms L/C, D/A, D/P, T/T
Delivery time 7-10 Working day
  • Design and manufacture: API 6D, ANSI B16.34
  • Pressure-temperature rating: ASME B16.34
  • Face to face(end to end): ANSI B16.10
  • End connection: 2″-24″ ASME B16.5; 26″ -40″ ASME B16.47
  • Test and inspection: API598
