GMK DIN Standard Bellows Seal Globe Valve

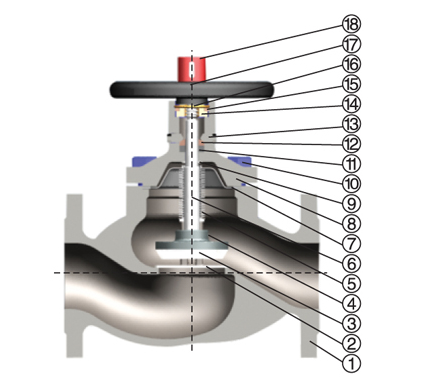

The components of the valve stem that make up a Bellows Seal Globe Valve are hermetically sealed using bellows, which results in a design that is more compact. Inside the bellows valve is where you’ll find the bellows, and thanks to the stainless steel bellows that are welded to the stem at their lower end, the stem is shielded from the corrosion that can be caused by the fluid in the system. The other end is then put between the cover and the body of the valve to create a seal that will last. This design features a double seal to ensure that there are no leaks; even if the bellows fail to function properly, the stem package will cover any residual gaps. The bellows are welded to the stem of the valve in order to prevent the stem from vibrating as a result of the movement of the valve insert.

  • Supply ability:10000 piece/pieces per month
  • Port:Wenzhou/shanghai
  • Payment terms:L/C, D/A, D/P, T/T

CE Certification

ISO Standards

Warranty Included



Bellows Seal Globe Valves Have Numerous Benefits

  • The double seal design (bellows + packing) is the most notable benefit of any bellows valve. To ensure compliance with international sealing standards, the stem packing will work even if the bellows fail.
  • It keeps the medium fluid loss to a minimum while still protecting people and the planet. This will increase the security of the facility where the bellows valve was installed.
  • It can help you save money on your utility bills by reducing leakage-related energy loss.
  • Because the leakage is reduced, the valve doesn’t need to be serviced as often. As a result, the valves last for considerably longer.
  • Less money is spent on upkeep and operations because of the machine’s longer lifespan.
  • The valve stem is guaranteed to leak nothing thanks to the tough bellows seal construction.
  • The installation of a bellows valve increases worker safety since it reduces the release of flammable, poisonous, and dangerous chemicals.


  • Bellow seal element. The key part of bellow sealed globe valves is mental below
  • Benefit from the con and streamline shape design, the disc has a reliable seal and longer service life
  • Double seal design(bellow+packing)
  • Grease nipple
  • Ergonomic handwheel
  • Application: Hot oil system, steam system, hot and cold water system, etc
  • Suitable temperature: -196 degree C to 600 degrees C






Supply ability 10000 piece/pieces per month
Port Wenzhou/shanghai
Payment terms L/C, D/A, D/P, T/T
Delivery time 7-10 Working day
  • Design and manufacture: DIN 3356
  • Face to face: DIN 3202
  • Flange end: DIN 2543-2545
  • Test & inspection: DIN 3230
Can we order goods from you directly?
Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. If you require smaller quantities we will be happy to arrange an individual delivery. We would be delighted to assist you.
Can I get a discount?
This depends on the specific situation, you can call directly to consult.
