Cryogenic Globe Valve

Our innovative approaches to customer service will help to simplify the way in which you deal with the production plant. We are here to provide you with all of the valve services you need at a cost that is reasonable. For use in cryogenic applications, the globe valves offered by GMK have bodies made of fire-resistant stainless steel. GMK globe valve is able to handle the processing of a wide variety of gases and vapors, including argon, oxygen, nitrogen, carbon dioxide, LNG, and carbon monoxide. Keeping a temperature range at work of -196 degrees Celsius to +420 degrees Celsius while maintaining a pressure range of DN 0 to DN 200.

  • Size:2″-24″
  • Rating:ASME Class150-Class900
  • Material:WCB, LCB,LCC, WC6,WC9, C5,C12,C12A, CF8, CF8M, CF3, CF3M, CN7M,Alloy 20,B148,UB6 ,Hastelloy C etc
  • End Connection:Flanges,RTJ Flange,Butt Weld,Hub end,Groove
  • Temperature:-196℃~+420℃
  • Operation:Handwheel, Wormgear, Gearbox, Pneumatic Actuator
  • Applicable Industry:Construction,Chemical,Metallurgy,Oil,Pharmaceutical,Food,Beverage
icon_quote Get A Quote
cryogenic-globe-valve
left
right
cryogenic-globe-valve

CE Certification

ISO Standards

Warranty Included

DESCRIPTION

Our cryogenic globe valves may be deployed in a variety of environments, including highly insulated vacuum lines and vacuum lines that are vacuum jacketed (also known as VJ lines) (SIVL). The bellows seal that is included inside each valve body is the product of painstaking engineering, and the valve bodies themselves are machined from a solid block of stainless steel (or other specialized alloys) making it an ideal choice.

Benefits

  • The cost-to-performance ratio of cryogenic globe valve design is quite favorable.
  • Adaptable Cryogenic Valve Inserts
  • In order to change or switch the inserts (internals), it is not necessary to remove the valve body. Alterations to the internals of the valve or its actuation type are possible at any moment.
  • Both the outside and the interior design of the bodies have been optimized to the point where they produce an extremely low amount of heat.
  • Actuators with a compact piston or diaphragm enable an easy installation process and minimal space needed.

.



  • Size:2″-24″
  • Rating: ASME Class150-Class900
  • Material: ASTM A352 LCB, LC1, LC2, LC3, LC4 A351 CF8, A351 CF8M ect
  • End Connection: Flanges,RTJ Flange,Butt Weld,Hub end,Groove



Feature

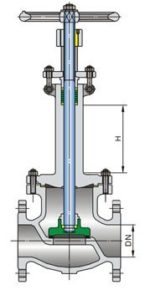

  • Straight pattern body design
  • OS&Y Outside Screw and Yoke, Bolted Bonnet
  • Rising stem,Extended bonnet/stem,extended length according to temperature and size of valve
  • The temperature is generally divided in to three. T>-46, -46≤ T101,-101≤T≤-196.

cryogenic-globe-valve

TECHNICAL SPECS
Size 2″-24″
Rating ASME Class150-Class900
Material WCB, LCB,LCC, WC6,WC9, C5,C12,C12A, CF8, CF8M, CF3, CF3M, CN7M,Alloy 20,B148,UB6 ,Hastelloy C etc
End Connection Flanges,RTJ Flange,Butt Weld,Hub end,Groove
Temperature -196℃~+420℃
Operation Handwheel, Wormgear, Gearbox, Pneumatic Actuator
Applicable Industry Construction,Chemical,Metallurgy,Oil,Pharmaceutical,Food,Beverage
Supply Ability 10000 Piece/Pieces per Month
Port Wenzhou/shanghai
Payment Terms L/C,D/A,D/P,T/T
Standard
  • Design and Manufacture:ANSIB16.34,API600,BS1873,BS 5352,BS 6364
  • Pressure-Reference Temperature: ASME B16.34
  • Face to face(end to end):ANSIB16.10
  • End Connection: 2″-24″ ASME B16.5; 26″ -42″ ASME B16.47; B.W end ASME B16.25
  • Check & Experiment:API598,BS6755
Q&A
Can we order goods from you directly?
Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. If you require smaller quantities we will be happy to arrange an individual delivery. We would be delighted to assist you.
Can I get a discount?
This depends on the specific situation, you can call directly to consult.
