GMK Cryogenic Globe Valve

A flow-regulating valve known as a Cryogenic globe valve, as opposed to a ball valve, has a body that is typically spherical and is equipped with a movable plug or disc element and a stationary ring seat. Unlike a ball valve, a globe valve does not have a stem. The word “globe valve” originates from the body of the valve, which is shaped like a globe, and an internal baffle prevents the two halves of the valve from coming into contact with one another. A plug that is screwed into the aperture that serves as the seat of the valve can be used to close the valve. Discs can also be used to refer to plugs in some contexts. For a globe valve, the opening and closing of the valve are accomplished by turning a screw that is attached to the stem of the valve using a handwheel. In most cases, an actuator assembly is used to control automated globe valves. These valves feature smooth stems rather than threaded ones.

  • Size: 2″-20″
  • Pressure:150LB-600LB
  • Material:ASME B148 C95800, ASTM B148 C95500, ASTM B148 C95400, ASTM B62, ASTM B61, ASTM B148 C83600, ASTMB150 C63200, DIN1705 RG10(CuSn10Zn2) ect

CE Certification

ISO Standards

Warranty Included



Cryogenic Globe valves provide various benefits over other types due to their shape and structure. Some other benefits are as follows:

  • They have the capability to shut things off effectively when required.
  • They have the capacity to slow down or halt with a reasonable amount of ease.
  • In this valve, the length of the stroke got shorter (compared to a gate valve).
  • There are many other configurations available, such as tees, wyes, and angles, and each one has a unique set of benefits to offer.
  • The seats are able to be machined or resurfaced with relative ease.
  • It is possible for the disc to act as a check valve when it is separated from the stem of the valve.


  • The straight pattern body design
  • OS&Y Outside Screw and Yoke, Bolted Bonnet

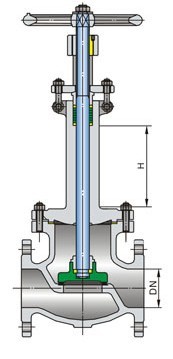

  • Rising stem, extended bonnet/stem, extended length according to temperature and size of valve
  • The temperature is generally divided into three. T>-46, -46≤ T101,-101≤T≤-196


Supply ability 10000 piece/pieces per month
Port Wenzhou/shanghai
Payment terms L/C, D/A, D/P, T/T
Delivery time 7-10 Working day
  • Design and manufacture: ANSIB16.34, API600, BS1873, BS 5352, BS 6364
  • Pressure-reference temperature: ASME B16.34
  • Face to face(end to end): ANSIB16.10
  • End connection: 2″-24″ ASME B16.5; 26″ -42″ ASME B16.47; B.W end ASME B16.25
  • Check & experiment: API598, BS6755
Can we order goods from you directly?
Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. If you require smaller quantities we will be happy to arrange an individual delivery. We would be delighted to assist you.
Can I get a discount?
This depends on the specific situation, you can call directly to consult.
