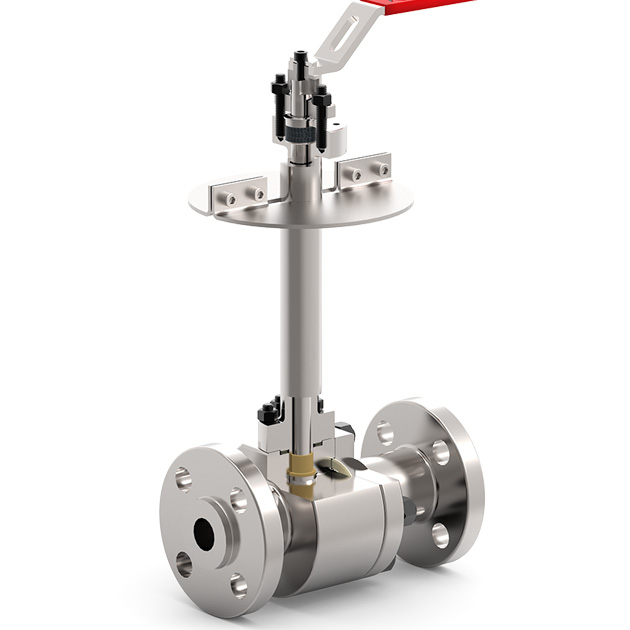

GMK Cryogenic Ball Valve

Only when the temperature is exceedingly low may cryogenic valves be used effectively. In order to ensure the safe and effective storage and transfer of cryogenic gases, cryogenic valves were invented. Keeping cryogenic valves in the closed position is the method that is both the most secure and the most reliable when it comes to containing cryogenic gases or other media. When a cryogenic valve is subjected to high pressure, the valve opens, allowing the gas or other medium to freely pass through. This unrestricted flow will continue until the pressure in the system drops, at which time it will entirely stop with the help of a one-of-a-kind metal seat and a gas-tight seal.

The safest and most reliable method of containing cryogenic gases or other media is to maintain the closed position of cryogenic valves. When high pressure is applied to a cryogenic valve, the valve opens to let the gas or other media freely pass through. This free flow will last until the pressure drops, at which point it will close off completely with a unique metal seat and a bubble-tight seal.

Supply ability:10000 piece/pieces per month

Port:Wenzhou/shanghai

Payment terms:L/C, D/A, D/P, T/T

Description
Technical
Standard
Q&A

DESCRIPTION

Benefits:

Cryogenic Ball Valves provide various benefits such as those defined next:

Cryogenic Ball valves are high recovery valves because of the large aperture in the ball, which results in a low-pressure drop and a large flow capacity. When the valve is fully open, there is very little turbulence and resistance to the flow of fluid.
They are effective and simple to use because they only need to be turned a quarter turn (90 degrees). Since the valve is small and light, setting it up and taking it apart is a breeze.
They are easy to use and require less upkeep compared to other types of valves. The packing seal on the stem of a ball valve rarely needs replacing because the stem only spins in one plane. Ball valves can be quickly dismantled and rebuilt with new or refurbished parts.
When compared to other, more complicated valve types, the price of a ball valve is quite reasonable. Also, as they have minimum care needs, they’re cheaper to keep. execute in a way that lasts.
Cryogenic Ball valves can handle greater pressure than most other valve types, making them one of the most reliable options. Their adaptability to many settings and fields is made possible by the large array of materials they are made from.

Feature

Two pieces design
Floating ball or Trunnion mounted ball
Temperature serving: -196 C degree
Length of extended bonnet/stem according to shell standard or upon request
Fire-safe design, anti-static device
Anti-blow out stem

TECHNICAL SPECS

Supply ability 10000 piece/pieces per month

Port Wenzhou/shanghai

Payment terms L/C, D/A, D/P, T/T

Delivery time 7-10 Working day

Standard

Design and manufacture: API6D, BS5351, ASME B16.34, API608, MSS-SP-72
Pressure-temperature rating: ASME B16.34
Face to face(end to end): ANSIB16.10, API6D
End connection: 2″-24″ ASME B16.5; 26″ -42″ ASME B16.47; B.W end ASME B16.25
Test and inspection: API598, API6D, BS5146
Fire-safe design: API607, API6FA

Q&A

Can we order goods from you directly?

Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. If you require smaller quantities we will be happy to arrange an individual delivery. We would be delighted to assist you.

Can I get a discount?

This depends on the specific situation, you can call directly to consult.
