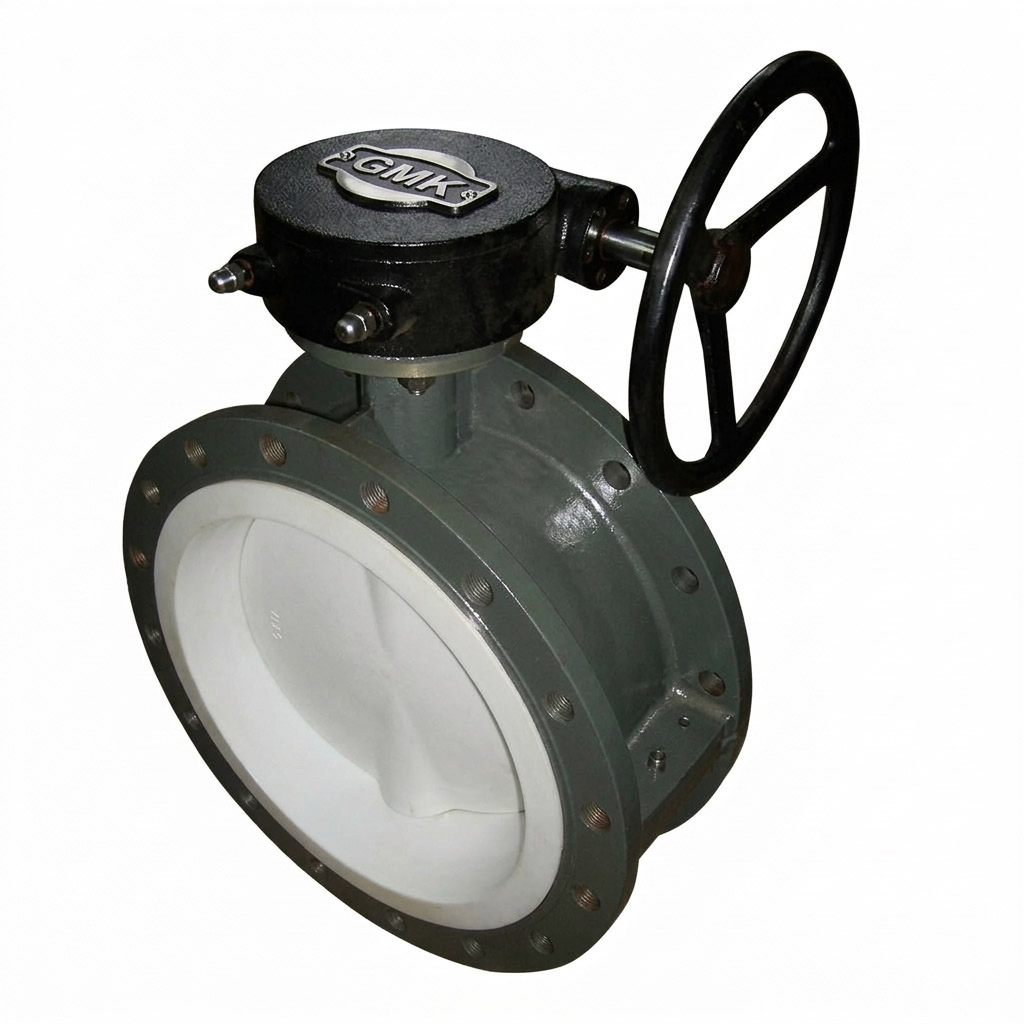

Short Double Flange Fully Lined Butterfly Valve

In groundwater infrastructure, piping, agriculture, and other applications, a GMK short butterfly valve with a double flange and a completely lined interior is employed for pressure regulating and slicing. Because of the groove’s hydrodynamic shape, GMK double flange butterfly valve has a minimal head loss. Additionally, it is completely watertight and does not need any gaskets to be placed. The flow of a variety of fluids, gases, or solid materials may be regulated or isolated using a butterfly valve, which has uses in several different sectors. A GMK Double-flanged butterfly valve has flanges attached to its frame on both ends of the gate.

Size:DN40-DN400

Drive type:Hand Lever,Gear Box,Pneumatic Actuator

Description
Technical
Standard
Q&A

DESCRIPTION

Product name: Short Double Flange Fully Lined Butterfly Valve

One flange is located at the inlet side of the valve, while the second flange is located at the discharge point of the valve. The most durable short Double Flange Fully Lined Butterfly Valve is often used for dead-end operations. Its primary functions are flow control, flow regulation, and flow throttling. Because it is fastened to the matching flanges of other pipelines, GMK Flanged-end valves make it possible for deployment and removal from pipelines to be done more easily. GMK can assist you with the correct installation of double-flanged valves to avoid displacement, which may lead to difficulties in your piping systems that are more long-term in nature.

Benefits:

GMK short double flange fully lined butterfly valves have a controlling feature that enables them to be used in the management of water resources.
Because of the on-off impact GMK butterfly valves have on the flow of water, they may also be employed as a kind of safety improvement to enable repair to be performed on other areas of the site of the dam or the nuclear reactor.
GMK butterfly valves are easy to fix and maintain.

DN	Size	Dimensions(mm)											Torque	Weight
mm	in	A	B	C	D	Di	E	F	R	K	Z	Flange		KG
40	1 1/2	100	50	145	84	110	106	72	12	11	50	F05	30	7.5
50	2	110	63	160	100	125	108	72	12	11	50	F05	30	10
65	2 1/2	125	72	180	118	145	112	72	12	11	50	F05	35	12.5
80	3	136	80	195	130	160	114	72	12	11	50	F05	50	15.5
100	4	151	111	215	157	180	127	90	16	14	70	F07	80	19
125	5	170	124	245	177	210	140	90	19	17	70	F07	150	16.5
150	6	190	138	280	206	240	140	90	19	17	70	F07	216	36.5
200	8	222	171	335	258	295	152	120	24	22	102	F10	410	49
250	10	270	209	390	315	350	165	120	24	22	102	F10	680	77.5
300	12	290	230	440	366	400	178	135	29	27	125	F12	900	92
350	14	325	261	500	415	460	190	135	29	27	125	F12	1120	130
400	16	342	285	565	470	515	216	180	38	36	140	F14	2203	180

TECHNICAL SPECS

Size DN40-DN400

Drive type Hand Lever,Gear Box,Pneumatic Actuator

Supply Ability 10000 Piece/Pieces per Month

Port Wenzhou/shanghai

Payment Terms L/C,D/A,D/P,T/T

Standard

Face-To-Face:EN 558-1 (DIN 3202),ISO 5752,API 609
Flange Accommodation: DIN PN10 PN16,ANSI 150,JIS 5K JIS 10K
Top Flange: ISO 5211

Q&A

Can we order goods from you directly?

Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. If you require smaller quantities we will be happy to arrange an individual delivery. We would be delighted to assist you.

Can I get a discount?

This depends on the specific situation, you can call directly to consult.
