GMK Forged Steel Trunnion Mounted Ball Valve

The flow of a medium via a pipe can be managed with the assistance of a trunnion ball valve, which is a type of quarter-turn valve. Due to the fact that the “free-floating” variation of the ball valve is the industry norm, the trunnion type marks a significant development in valve construction. At one end, the ball of a trunnion ball valve is connected to the stem, and at the other end, it is connected to the trunnion. The ball is maintained in its position with the help of this improvement to the original design. The name “floating ball valve” comes from the fact that the ball in the valve is not fixed to the stem. Trunnion ball valves are preferable to free-floating valves in a number of aspects, including their adaptability (they may be used in low as well as high-pressure applications), which allows them to be utilized in a wider variety of settings, and their low cost of operation.

Size range:DN50-DN1000

Rating:150LB, 300LB, 600LB, 900LB, 1500LB

Material:WCB, LCB, LCC, WC6, WC9, C5, C12, C12A, CF8, CF8M, CF3, CF3M, CN7M, Alloy 20, B148, UB6 904l, Hastelloy C etc

Ends connection:RF flanges, RTJ flange, butt weld, hub end, groove

Operation:Hand lever, wrench, gear, penumatic actuator

Description
Technical
Standard
Q&A

DESCRIPTION

Benefits:

Use in situations requiring a lot of pressure

Trunnion ball valves are the superior form of ball valves while working with high pressure. When the valve is in operation, the ball floats just downstream of the seat ring, closing off the flow on one side alone. The stem torque is also increased.

Seats with a Spring Loading Mechanism

Ball valves positioned on a trunnion have spring-loaded seats. By applying pressure, the ball in a mounted ball valve is pushed against the seats, forming a seal. Due to the high pressure required to achieve a reliable seal, ball valves cannot be used in low-pressure systems.

Ball valves installed on a trunnion can be used with either low or high pressure. The spring-loaded seats will produce a seal in low or no-pressure situations and will continue to function in high-pressure settings.
Cut back on the price of operations

Any additional pressure applied to the valve is absorbed by the trunnion and stem of a trunnion-mounted ball valve, resulting in decreased operational expenses. As a result, the operating torque can be reduced, negating the need for a bulky actuator.

Feature

Full port design
Trunnion mounted ball type
Blow-out proof stem
Anti-fire safe construction, anti-static device
Double block and bleed(D.B.B)
Stopper device
ISO 5211 mounting pad
Flanged or butt-welding ends
Free leakage of body sealed construction

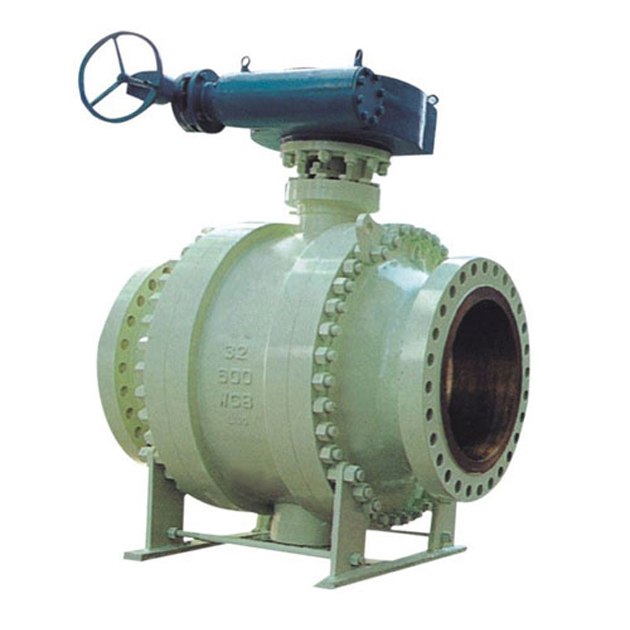

trunnion-mounted-ball-valve-01

TECHNICAL SPECS

Size range DN50-DN1000

Rating 150LB, 300LB, 600LB, 900LB, 1500LB

Material WCB, LCB, LCC, WC6, WC9, C5, C12, C12A, CF8, CF8M, CF3, CF3M, CN7M, Alloy 20, B148, UB6 904l, Hastelloy C etc

Ends connection RF flanges, RTJ flange, butt weld, hub end, groove

Operation Hand lever, wrench, gear, pneumatic actuator

Supply ability 10000 piece/pieces per month

Port Wenzhou/shanghai

Payment terms L/C, D/A, D/P, T/T

Delivery time 7-10 Working day

Standard

Design and manufacture: API6D, BS5351, ASME B16.34, API608
Pressure-temperature rating: ASME B16.34
Face to face(end to end): ANSI B16.10, BS2080
End connection: 2″-24″ ASME B16.5; 26″ -42″ ASME B16.47; B.W end ASME B16.25, BS5160
Test and inspection: API 598, API 6D, BS 5146
Fire-safe design: API607, API 6FA
