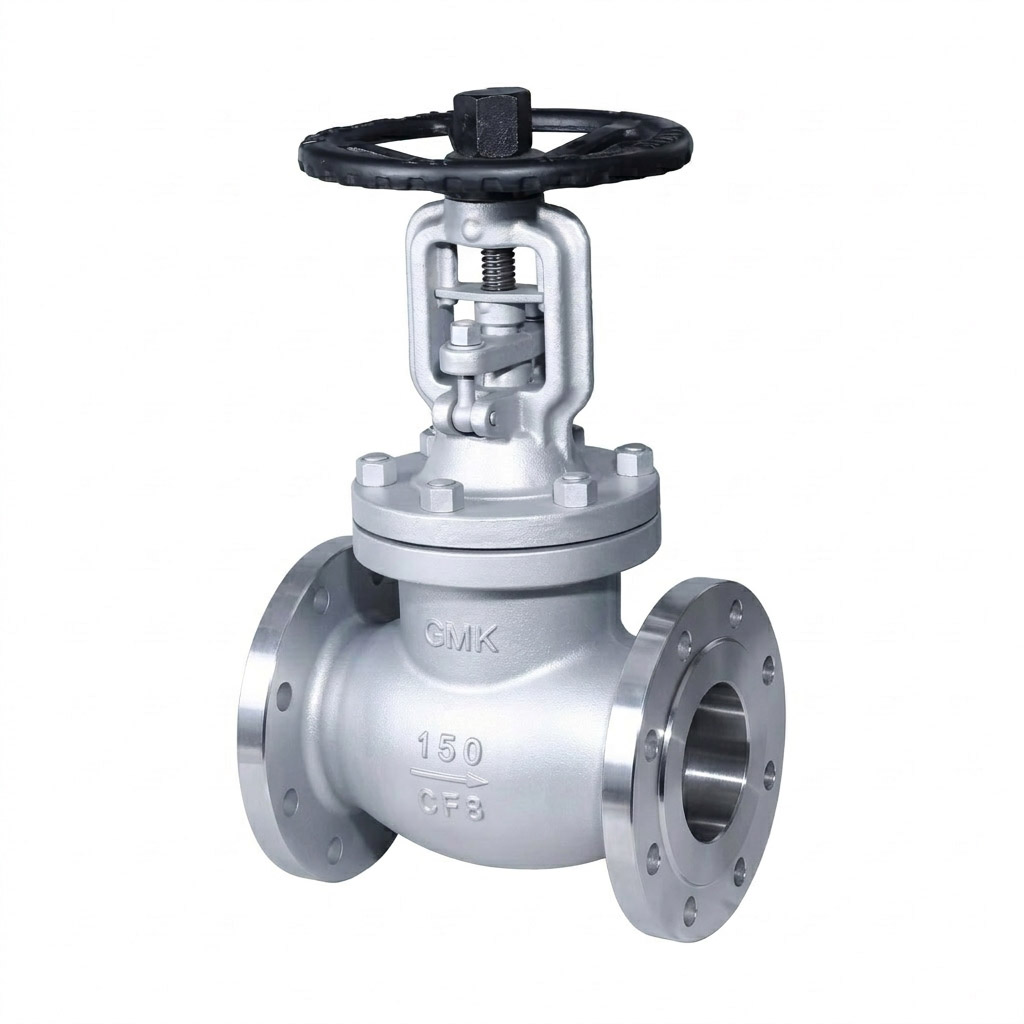

ANSI Bellows Seal Globe Valve

Description
Technical
Standard
Q&A

DESCRIPTION

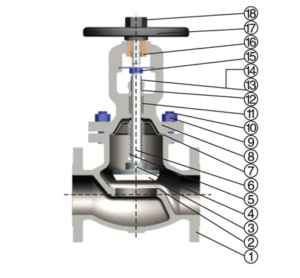

Working Principle of ANSI Bellows Seal Globe Valve

The ANSI Bellows Seal Globe Valve controls fluid flow through a movable disc and precision valve seat. When the handwheel rotates, the valve stem moves vertically to regulate or completely stop the flow.

Moreover, the welded bellows create a permanent metal barrier around the valve stem. Therefore, the process medium cannot escape through the stem sealing area during operation.

Furthermore, the secondary packing seal provides additional protection if required. As a result, the valve delivers dependable sealing performance under demanding operating conditions.

TECHNICAL SPECS

Supply Ability 10000 Piece/Pieces per Month

Port Wenzhou/shanghai

Payment Terms L/C,D/A,D/P,T/T

Features of ANSI Bellows Seal Globe Valve

The ANSI Bellows Seal Globe Valve features a double sealing system consisting of a welded stainless steel bellows and high-performance packing. Therefore, it offers outstanding sealing reliability and extended service life.

Moreover, the valve body uses high-quality stainless steel with a durable metal backseat and graphite sealing components. These premium materials improve corrosion resistance and reduce maintenance requirements.

In addition, the valve complies with ANSI flange and face-to-face standards for convenient installation. The ergonomic handwheel also allows smooth operation with reduced operating effort.

Benefits of Industrial Bellows Seal Globe Valve

The industrial bellows seal globe valve eliminates external leakage and protects hazardous process media. Therefore, it is suitable for chemical processing, steam pipelines, power generation, and refinery applications.

Moreover, the fully enclosed sealing structure operates reliably in temperatures ranging from -196°C to 600°C. This design improves operational safety while extending valve service life.

Furthermore, the valve reduces maintenance costs and minimizes energy loss during operation. As a result, plant operators achieve greater system efficiency and long-term reliability.

Applications of ANSI Globe Valve

ANSI globe valves with bellows seals are widely used in petrochemical plants, pharmaceutical facilities, power stations, LNG terminals, and industrial steam systems.

Moreover, they perform reliably in applications involving toxic, corrosive, flammable, or high-temperature media. Therefore, they are an excellent choice for industries requiring zero external leakage.

With advanced manufacturing technology and strict quality control, GMK VALVE supplies dependable valve solutions for customers worldwide.

Technical Specifications

Product Name: ANSI Bellows Seal Globe Valve

Valve Type: Bellows Seal Globe Valve

Design Standard: API 16.34

Face to Face: ANSI B16.10

Flange Standard: ANSI B16.5

Testing and Inspection: API 598

Sealing System: Welded Bellows Seal + Packing Seal

Operating Temperature: -196°C to 600°C

Applications: Steam, Chemical Processing, Oil & Gas, Power Generation, Industrial Pipelines

Standard

Quality Manufacturing Standards

GMK VALVE follows recognized international manufacturing standards to produce reliable industrial valve solutions. Every production stage includes strict quality control procedures to ensure excellent sealing performance and long-term mechanical strength.

Moreover, each valve undergoes comprehensive pressure testing and sealing inspection before shipment. As a result, customers receive durable products designed for long-term industrial operation.
