APL Limit Switch for Pneumatic Valve Actuators

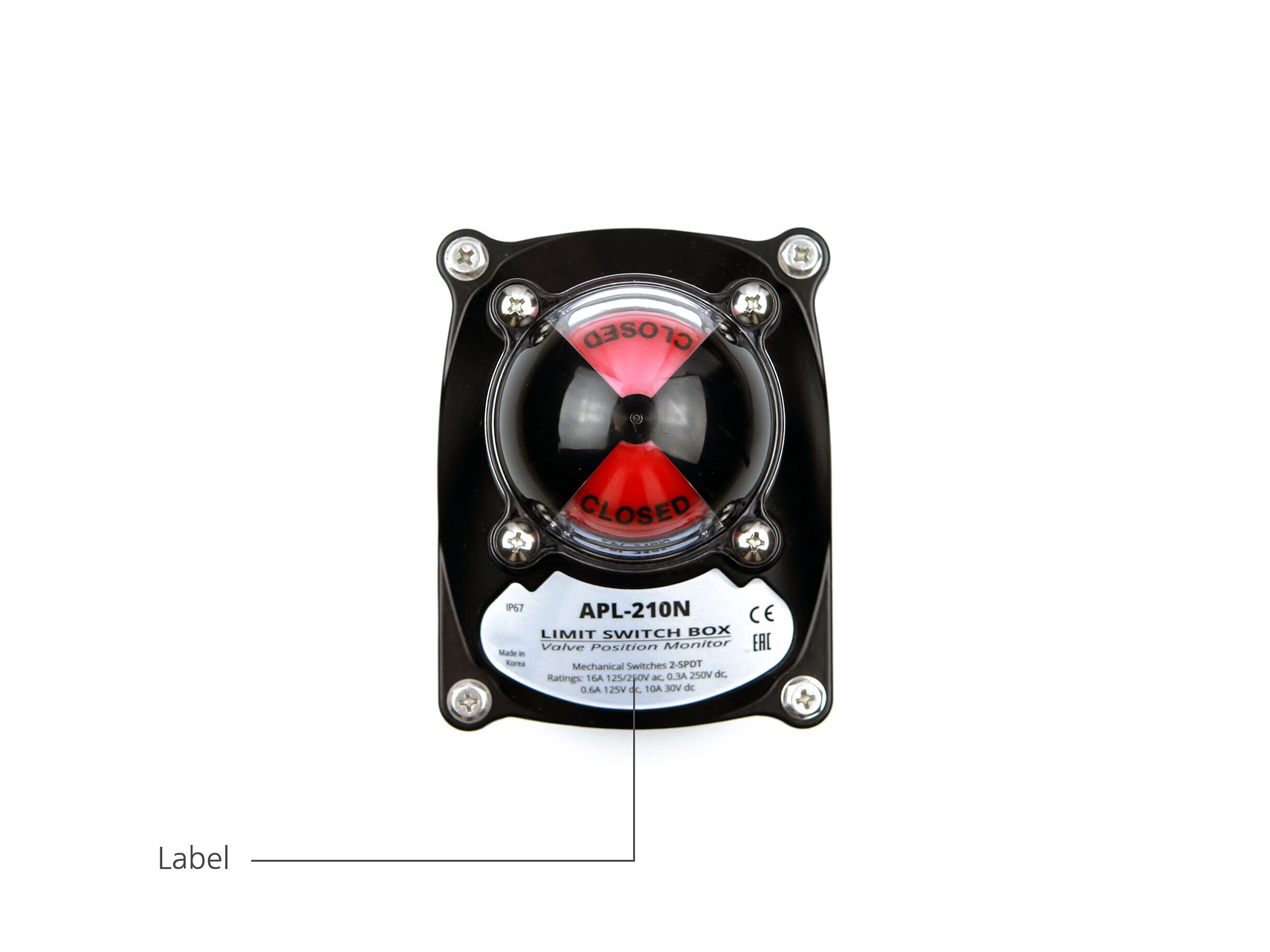

APL limit switch

APL Limit Switch for Pneumatic Valve Position Monitoring

The APL limit switch is a rotary position indicator designed for pneumatic valves and actuator systems. It provides accurate position feedback and reliable monitoring for industrial automation applications.

This compact device supports various internal switches and sensors while ensuring stable operation with pneumatic actuators. Moreover, its durable construction makes it suitable for demanding industrial environments that require accurate valve control.

This mechanical limit switch uses a durable switching design with a long operating life and reliable contact performance. Therefore, it is an ideal solution for monitoring small pneumatic actuators and automated valve systems.

Description
Technical
Application
Q&A

DESCRIPTION

Key Benefits of APL Limit Switch

This valve position indicator combines durability, flexible configuration, and accurate position detection. It helps improve valve automation performance while reducing maintenance requirements.

Reliable Valve Position Indication

The rotary design provides clear valve position feedback during operation. Furthermore, the indicator system allows operators to quickly identify valve status in industrial applications.

Durable Mechanical Construction

The housing uses lightweight aluminum die-cast material with excellent corrosion resistance. In addition, the double chromate treatment and polyester powder coating improve protection in harsh environments.

Easy Adjustment and Installation

Spring-loaded cams allow quick limit adjustment without additional tools. As a result, installation and commissioning become faster and more convenient for different valve applications.

Excellent Environmental Protection

The device features an IP67 protection rating against water and dust. Moreover, the double-sealed indicator dome helps prevent moisture from entering the internal components.

Flexible Switch Configuration

The APL switch supports different configurations, including SPDT mechanical switches and hermetically sealed proximity switches. Therefore, users can select suitable configurations according to application requirements.

TECHNICAL SPECS

Working medium Clean ,dry,non-corrosive compressed ai

Working air Pressure 0.35-0.7Mpa

Technical Features of APL Limit Switch

This rotary position indicator is designed for reliable operation with pneumatic actuators and automated valve systems. Its compact structure allows easy installation while maintaining excellent performance.

Main Features:

Rotary-type valve position indicator
Compatible with pneumatic actuators
Aluminum die-cast housing
Stainless steel NAMUR mounting bracket
Two V3 SPDT limit switches
Beacon position indicator
IP67 weather protection
Corrosion-resistant surface treatment

Applications of APL Limit Switch

This mechanical limit switch is widely used in industrial automation systems that require accurate position monitoring. It is suitable for valve control, actuator feedback, and equipment safety applications.

Common applications include:

Pneumatic valve automation
Process control systems
Assembly line equipment
Industrial machinery
Automated door systems
Safety monitoring applications

Moreover, the switch can activate or deactivate safety functions when a preset position is reached. Therefore, it helps improve operational safety and equipment reliability.

Operating Temperature Range

The device supports different temperature environments based on application requirements.

Standard Temperature:

-20°C to +80°C

High Temperature:

-20°C to +250°C

Low Temperature:

-40°C to +70°C

Standard

Why Choose APL Limit Switch Solutions?

This valve monitoring device provides a practical solution for industrial automation control. Its reliable design, flexible configuration, and durable materials make it suitable for various operating conditions.

Furthermore, this valve monitoring device helps improve system efficiency by providing accurate feedback signals. Contact us for suitable valve automation solutions and technical support.
