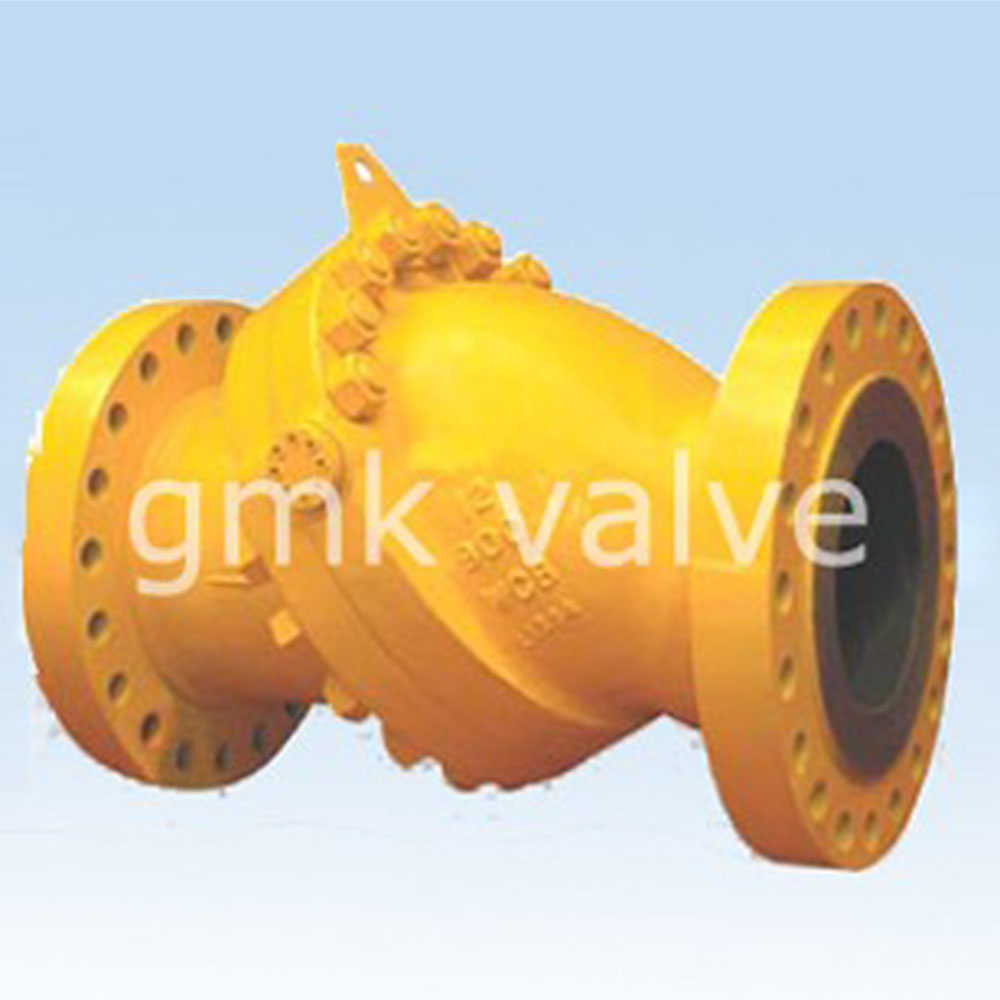

Tilting Disc Check Valve

The Tilted Disc Check Valve offered by GMK is a durable valve that has outstanding head loss characteristics. The valve is an excellent choice for use in applications involving raw water, cooling water, processed water/wastewater, and wastewater. Even in the most demanding environments, the tapered metal-to-metal seats of the valve, are made of an aluminum bronze alloy that is resistant to wear, maintains a secure sitting surface, and has a long service life.

  • Size:2″-36″
  • Rating:150LB,300LB,600LB,900LB,1500LB
  • Material:WCB, LCB,LCC, WC6,WC9, C5,C12,C12A, CF8, CF8M, CF3, CF3M, CN7M,Alloy 20,B148,UB6 ,Hastelloy C etc
  • Connection:Flanges,RTJ Flange,Butt Weld

CE Certification

ISO Standards

Warranty Included


The functioning of the GMK’s Tilted Disc Check Valve is completely independent and may be performed by itself automatically. For a wide variety of uses, the valve may be fitted with oil dashpots that are either located on the bottom or the top. The last 10% of valve closing is controlled by a hydraulic cylinder that is located in the bottom dashpot. In order to mitigate surges on longer systems, the top-mounted dashpot also functions as a separate controller for the whole opening and shutting strokes.


  • 40 degrees of short disc stroke allows for a speedy closure and much less water hammer.
  • Lift and Tilt Seat Action, which helps to avoid wear and tear
  • Hydrofoil disc design offers disc stability
  • Disc Position Indicator is used for indication and SCADA-compatible switches that show open and closed positions.
  • Inspection Access to seats upstream and downstream, mounting ports for dashpots are provided by the ports.
  • Bottom-mounted oil dashpot, which eliminates the risk of slamming.
  • Dashpot for the oil that is mounted on top of the engine minimizes slam and surges.
  • connection with a quick disconnect for convenience in removing the dashpot
  • Dual by-pass, which may be used for both draining and backwashing the screens


  • Product name: Tilting Disc Check Valve
  • Size: 2″-36″
  • Rating:150LB,300LB,600LB,900LB,1500LB
  • Material: WCB,
  • LCB,LCC,WC6,WC9,C5,C12,C12A,CF8,CF8M,CF3,CF3M,CN7M,B148,ect
  • Connection: Flanges,RTJ Flange,Butt Weld


Size 2″-36″
Rating 150LB,300LB,600LB,900LB,1500LB
Material WCB, LCB,LCC, WC6,WC9, C5,C12,C12A, CF8, CF8M, CF3, CF3M, CN7M,Alloy 20,B148,UB6 ,Hastelloy C etc
Connection Flanges,RTJ Flange,Butt Weld
Supply Ability 10000 Piece/Pieces per Month
Port Wenzhou/shanghai
Payment Terms L/C,D/A,D/P,T/T
  • Design and Manufacture:API6D,ANSIB16.34
  • Pressure-temperature rating: ASME B16.34
  • Face to face(end to end): API6D,API594
  • End Connection: 2″-24″ ASME B16.5; 26″ -42″ ASME B16.47; B.W end ASME B16.25
  • Test and inspection:API598,API6D
